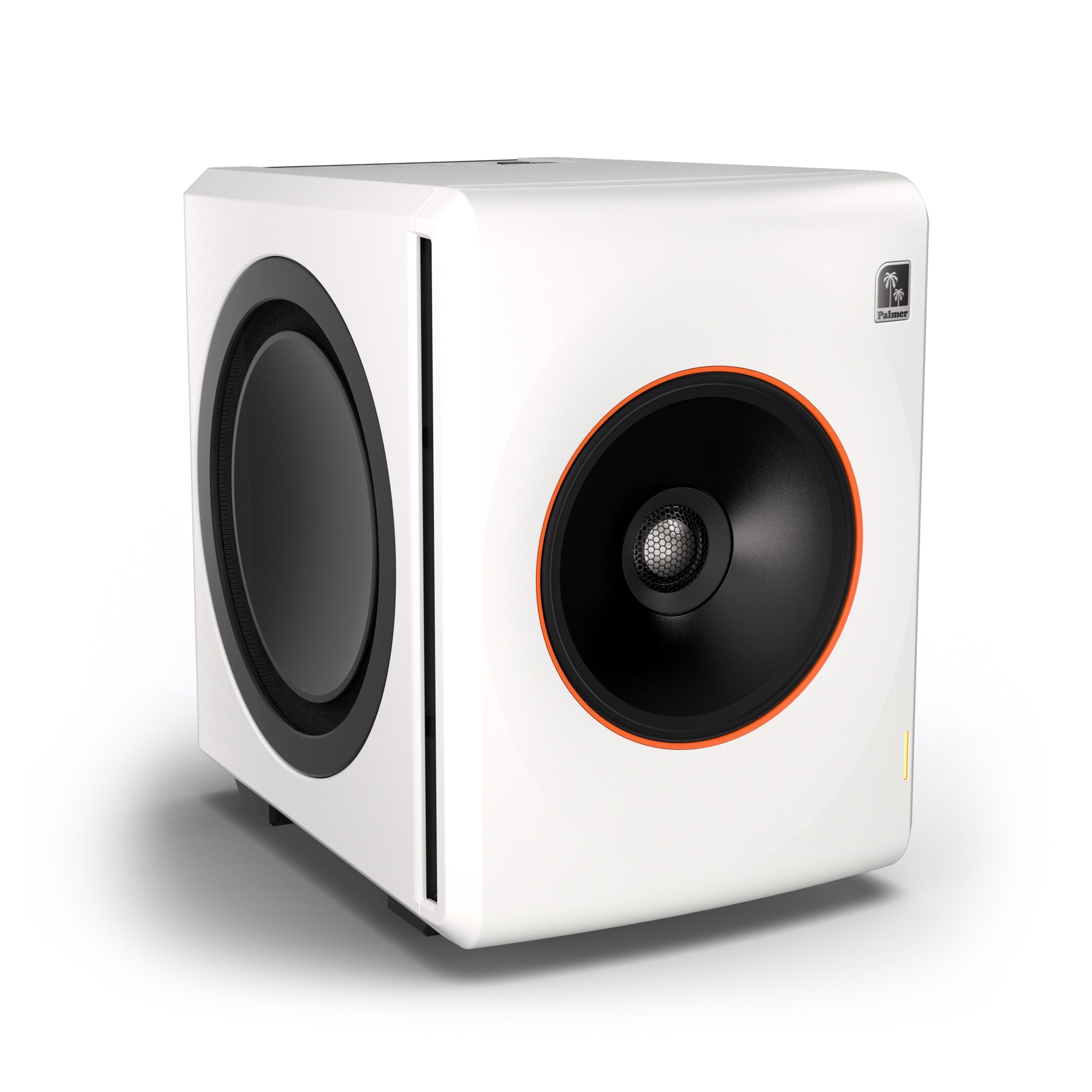

Palmer ORBIT 11 White

Palmer ORBIT 11 White - Active studio monitor, 3-way, designed for mixing, mastering and audio production. Utilises a coaxial design for precise acoustic alignment and stable stereo imaging. Includes internal DSP processing and a rigid enclosure for vibration control and accurate reproduction.

• Coaxial "true point source" design for alignment on the same axis of the drivers
• Constant dispersion 120° × 120° for uniform coverage
• Cardioid configuration in mid and high frequencies to reduce room reflections
• 3-way system for clear frequency separation
• Two 8" woofers with impulse compensation for controlled low frequencies
• Extended low frequency response, usable without a subwoofer in many situations
• Internal DSP processing at 96 kHz / 24-bit with FIR filters for linear phase
• Temporal integration of drivers for coherence in playback
• Presets for acoustic corrections (desk, wall) and 3-band EQ
• 80 Hz high-pass filter for adaptation to different setups
• Die-cast aluminium enclosure, rigid, to reduce resonances
• Mounting options for wall or ceiling, with dedicated mounting points

Specifications:

• Active studio monitor, coaxial, 3-way
• Drivers: 2x 8" woofer + 6.5" midrange + 1" tweeter
• Power: 400 W RMS / 1000 W peak
• Frequency response: 28 Hz – 28 kHz (±3 dB)
• Max SPL: 116 dB
• Dispersion: 120° × 120°
• Inputs: XLR balanced (analog) / AES3 (XLR)
• Output: AES3 Thru (XLR)
• Power supply: IEC
• Enclosure: die-cast aluminium, closed construction
• Dimensions: 216 × 293 × 292 mm
• Weight: 13.9 kg
• Colour: white
