Neumann TLM 170 R mt


Studio microphone

  • 5 selectable directional characteristics: Omni, wide cardioid, cardioid, hypercardioid, figure-8.
  • frequency range of 20 Hz-20 kHz with low noise and impressive dynamic range.
  • ideal for high-volume recordings of brass instruments, string instruments, piano, and more.
  • includes N248 power supply for controlling directional characteristics.
  • lightweight design at 625 g with a sleek black finish.
Neumann
3 00656
Currently unavailable. Request details
Central warehouse: 0
Add to cart
15471 points of loyalty
Shipping free
Warranty 24 months
Returns 14 days

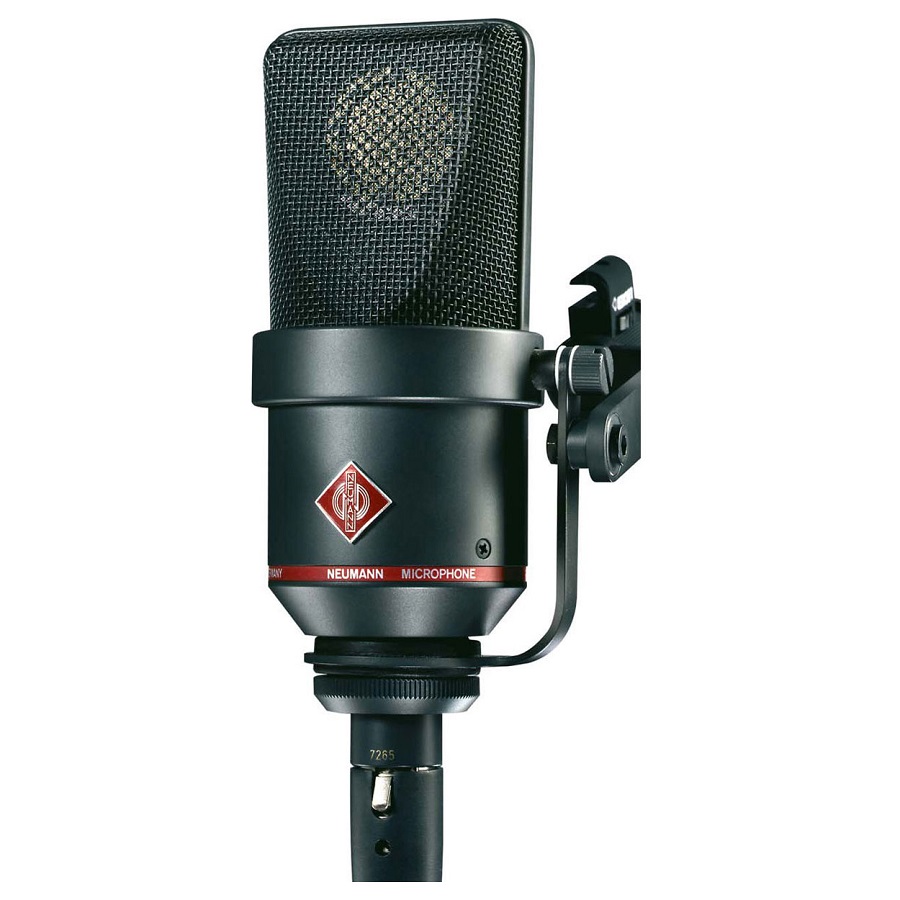

Neumann TLM 170 R mt - is the first Neumann large diaphragm condenser microphone, featuring 100 FET technology, transformerless design, with 5 selectable directional characteristics (Omni, wide cardioid, cardioid, hypercardioid, figure-8) accessible from the microphone or via the N248 power supply. It has a 10 dB pad and an integrated low-cut filter, low noise, and an impressive dynamic range. Its resistance to high sound pressure levels makes this microphone ideal for recordings where volume is high. Perfect for recording brass instruments, string instruments, piano, bass drum, and guitar amplifiers. The N248 power supply controls the directional characteristics by varying the Phantom power voltage.
  • Microphone type: Omnidirectional, wide cardioid, cardioid, hypercardioid, figure-8
  • Frequency range: 20 Hz-20 kHz
  • Sensitivity at 1 kHz / 1 kohm: 8 mV/Pa
  • Impedance: 50 ohms
  • Equivalent noise level, CCIR1: 26 dB
  • Equivalent noise level, A-weighted1: 14 dB-A
  • Signal-to-noise ratio, CCIR1 (ref. 94 dB SPL): 68 dB
  • Signal-to-noise ratio, A-weighted1) (ref. 94 dB SPL): 80 dB
  • Max SPL for THD 0.5%: 144 dB
  • Max SPL for THD 0.5% with pad: 154 dB
  • Max output voltage: 10 dBu
  • Power supply (P48, IEC 61938): 48 V ± 4 V
  • Current consumption (P48, IEC 61938): 3 mA
  • Connectors: XLR3F
  • Weight: 625 g
  • Diameter: 60 mm
  • Length: 152 mm
  • Black finish

Product code: 007166

Unit of sale: piece

Specifications:
Audio frequency range: 20 - 20 000 Hz
Capsule type: condenser
Polar pattern: multiple, selectable
Digital interface: without
mono/stereo/set: mono
