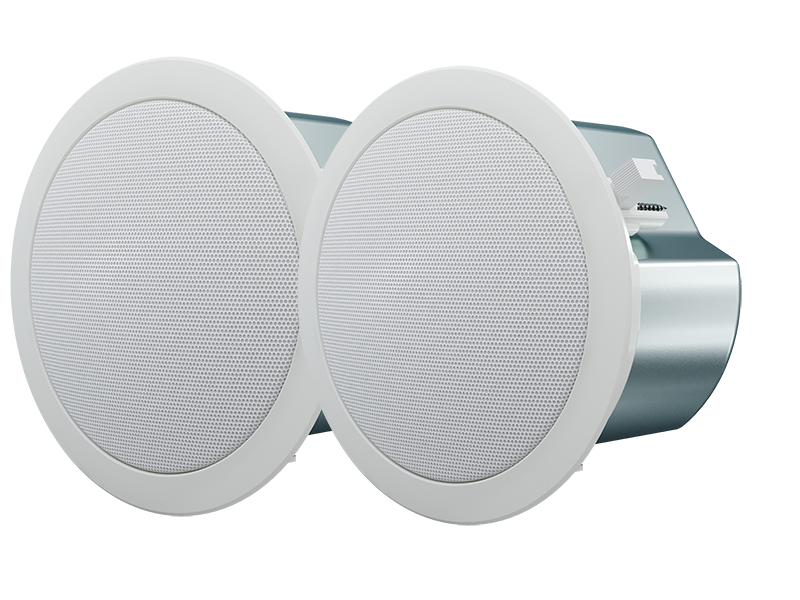

Optimal Audio UP3 White Pair – A pair of discreet, passive, 3” ceiling speakers that provide consistent coverage and clear sound in various commercial environments, such as hotels, shops, bars, and restaurants. It includes an integrated mounting system for easy installation and features a perforated grille made of steel finished in neutral white.
With the accessories Pendant 1 and Grille 1, it can be elegantly suspended or have a bezel-less design. The 3” speaker is ideal for background music and voice reproduction, with a conical coverage pattern of 130°. Up 3 can operate on 70V or 100V lines or at low impedance. System setup and control are simplified through SmartAmp or Zone, with additional control options via ZonePad.
Features
3” full-range driver
Discreet size
Non-intrusive design
Operates on 8 ohm line or 70/100V
Power tap range
Wide conical coverage pattern
Integrated mounting hardware
Bezel-less grille accessory and pendant available
Specifications:
Type: passive ceiling speaker, full range
Frequency response (with preset): 95Hz - 15kHz ± 3dB, -10dB at 68Hz
Driver: 3” (78mm)
Nominal power (AES): 20W, 40W (peak)
Nominal impedance: 8Ω
Sensitivity (1W/1m): 84dB
Max SPL: 97dB (continuous), 100dB (peak)
Recommended high-pass filter: 24dB/octave at 90Hz
Transformer tap @ 70V: 15, 7.5, 3.8, 1.9W
Transformer tap @ 100V: 15, 7.5, 3.8W
Dispersion (-6dB): 130° conical
Back enclosure: zinc-coated steel
Protective grille: perforated steel with protective coating
