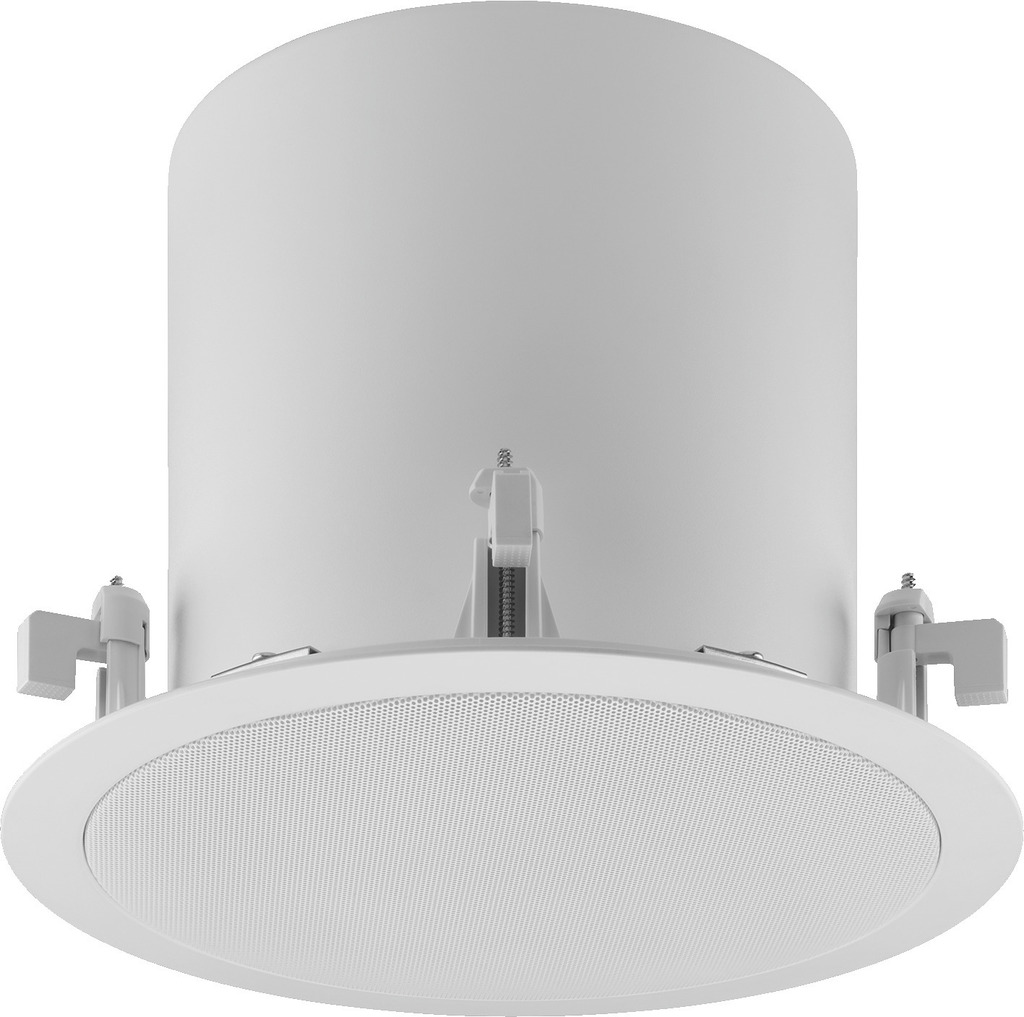

Monacor ESUB-6C/WS

Ceiling Subwoofer

in-wall or ceiling installation with a power of 55 W.
designed for 100V systems with a 16 cm (6") speaker.
high-quality sound with a frequency range of 45-280 Hz.
selectable impedance of 4 ohms and integrated crossover network.
suitable for ceilings with thickness from 5 to 32 mm.

382⁸¹ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

Shipping free

Warranty 24 months

Returns 14 days

request details

Monacor ESUB-6C/WS Add to cart: 382⁸¹ €

Monacor ESUB-6C/WS - in-wall or ceiling subwoofer, with a power of 55 W, designed for 100V systems, equipped with a 16 cm (6") speaker that delivers very high-quality sound, ceramic connection terminals, integrated crossover network, selectable at an impedance of 4 ohms. It can be mounted in ceilings with a thickness of 5 to 32 mm. Supplied with a safety cable for suspension.

Technical specifications:

Transmission method: 100 V
Impedance: 4 Ω
Frequency range: 45-280 Hz
Speaker diameter: 16 cm (6")
Power: 40/20/10 W (100 V), 55 W (4 Ω)
Sensitivity: 88 dB/W/m
Max SPL: 104 dB
Horizontal dispersion: 180°
Vertical dispersion: 180°
Mounting hole diameter: Ø268 mm
Mounting depth: 255 mm
Dimensions: Ø 310 mm x 265 mm
Optimal operating temperature: 0-40 °C
Finish: white
Weight: 5 kg

Product code: 0259340

Unit of sale: piece

Specifications:

Colors (RAL):	white
Weight:	5 kg
Dimensions:	Ø 310 mm x 265 mm
SPL:	104 dB
Frequency response:	45-280 Hz
EN54 / EN60849 certificate:	no
IP protection code:	fără
Power at 100V:	40 / 20 / 10 W
