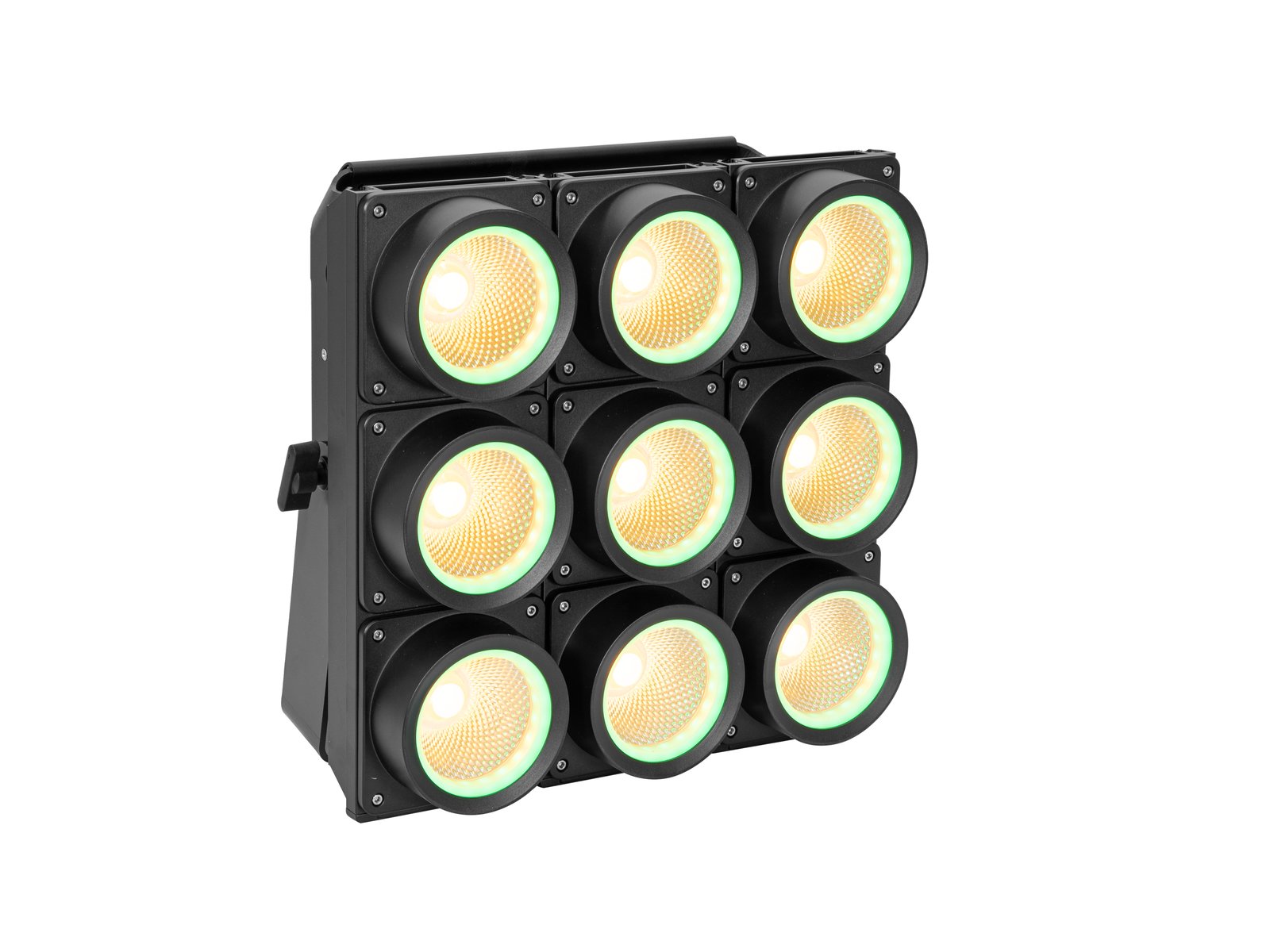

Weather-proof blinder with pixel control and atmo cluster
360 powerful LEDs 0,2 W SMD 3528 3in1 TCL RGB (homogenous color mix) 18 segments separate controlling
Variable color temperature 1800 K - 6000 K
9 powerful LEDs 24 W COB (chip-on-board) CW/WW (homogenous color mix) LEDs separate controlling

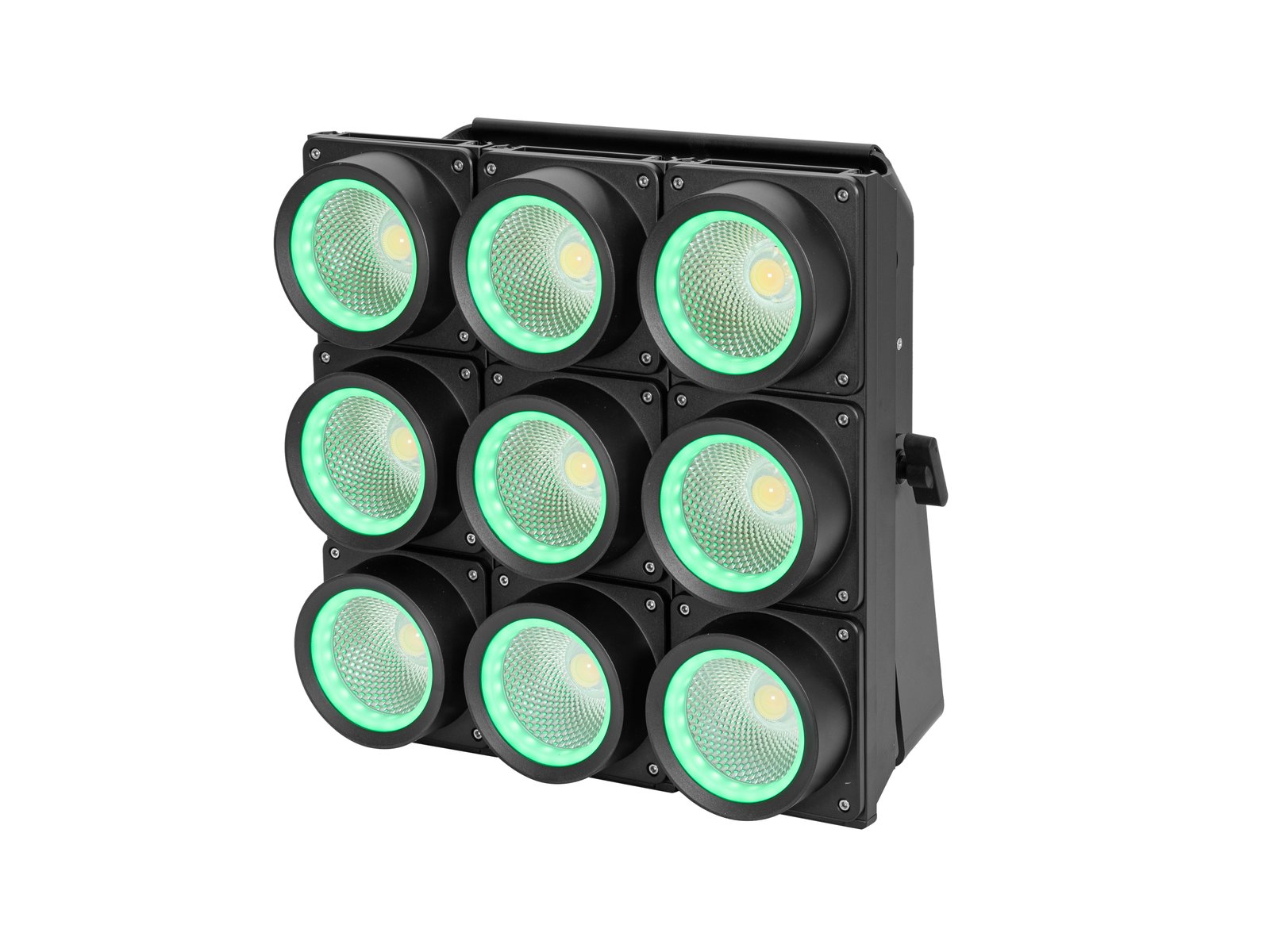

Each of the 9 COB blinder LEDs is surrounded by 2 RGB segments for atmospheric light
One RGB LED segment is directed towards the front, one towards the reflector
Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic; dimmer curves with adjustable response; white balance adjustable
15 integrated Showprograms
Strobe effect
With a beam angle of 20°
Can be operated in 13; 18; 72; 85 CH mode
Controlling by stand-alone; DMX; ArtNet; RDM; Master/slave function

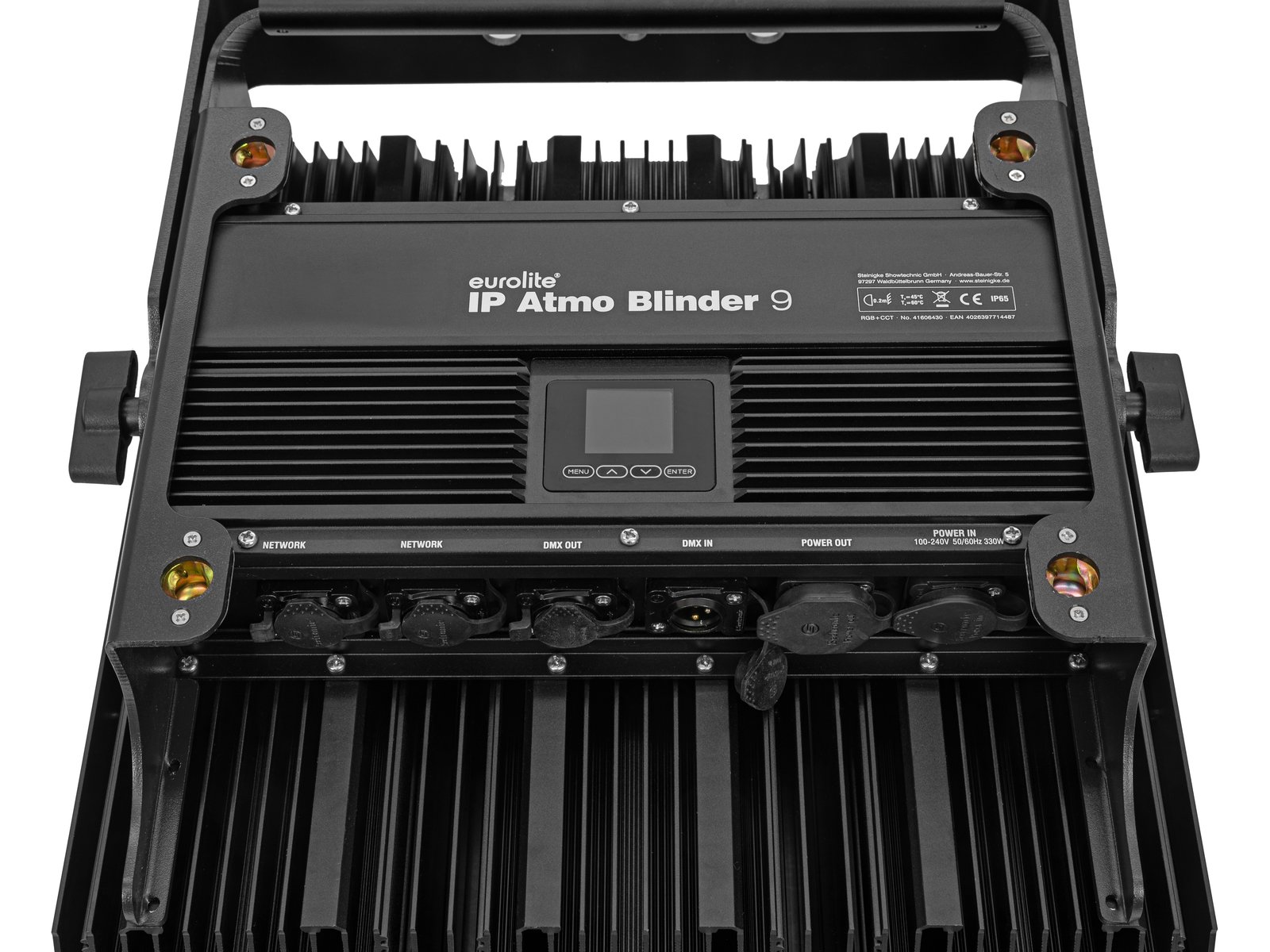

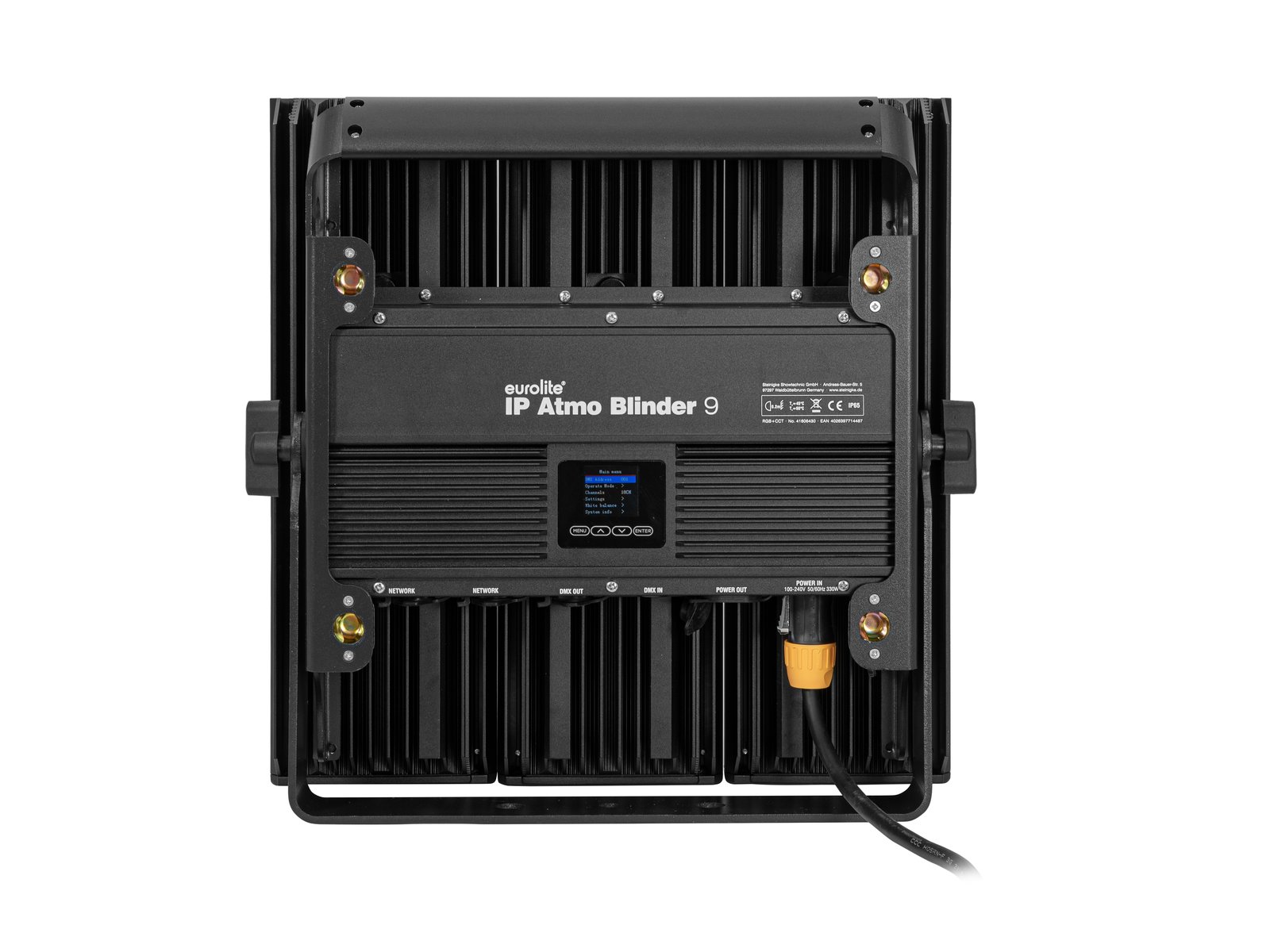

Multicolor LCD display
Flicker-free

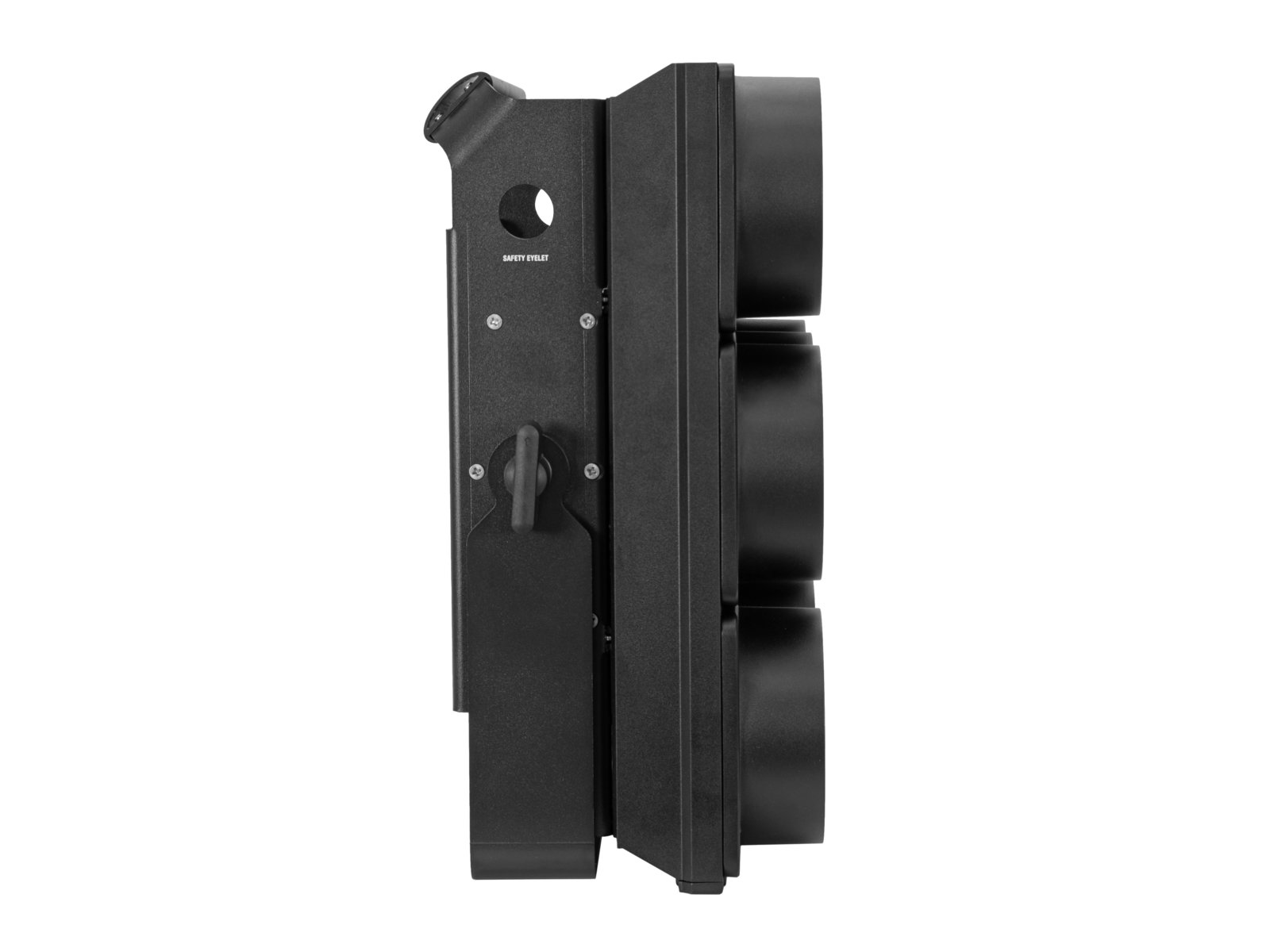

With Mounting bracket; with Omega bracket
The device is cooled by low-noise cooling fan
Preprogrammed in Light´J
Mains input and output for power linking up to 4 units
Package contents
1 x user manual, 1 x power cord, 1 x xLR cable, 2 x omega bracket
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
330 W
IP classification:
IP65
Protection class:
Protection class I
Power connection:
Mains input via IP T-Con (M) mounting version power supply cord with safety plug (provided)
Power output:
IP T-Con (F) mounting version
Lamp type:
LED lamp
LED:
360 x 0,2 W SMD 3528 3in1 TCL RGB (homogenous color mix) 9 x 24 W COB (chip-on-board) CW/WW (homogenous color mix)
Color temperature:
1800K - 6000K adjustable
DMX channels:
13; 18; 72; 85
DMX input:
3-pin XLR (M) mounting version IP
DMX output:
3-pin XLR (F) mounting version IP
Cooling:
Low-noise cooling fan
Control:
Stand-alone; DMX; ArtNet; RDM; Master/slave function
