Neumann USM 69i mt

Stereo studio microphone

condenser studio microphone with stereo capability for MS and XY stereophony.
features two independent low-noise microphone amplifiers and adjustable capsule angles.
selectable polar patterns: omnidirectional, wide cardioid, cardioid, hypercardioid, figure-8.
frequency range of 20 Hz to 20 kHz with a maximum SPL of 132 dB.
powered by 48V Phantom power with XLR5F connectors.

5 933⁷⁷ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

Shipping free

Warranty 24 months

Returns 14 days

request details

Neumann USM 69i mt Add to cart: 5 933⁷⁷ €

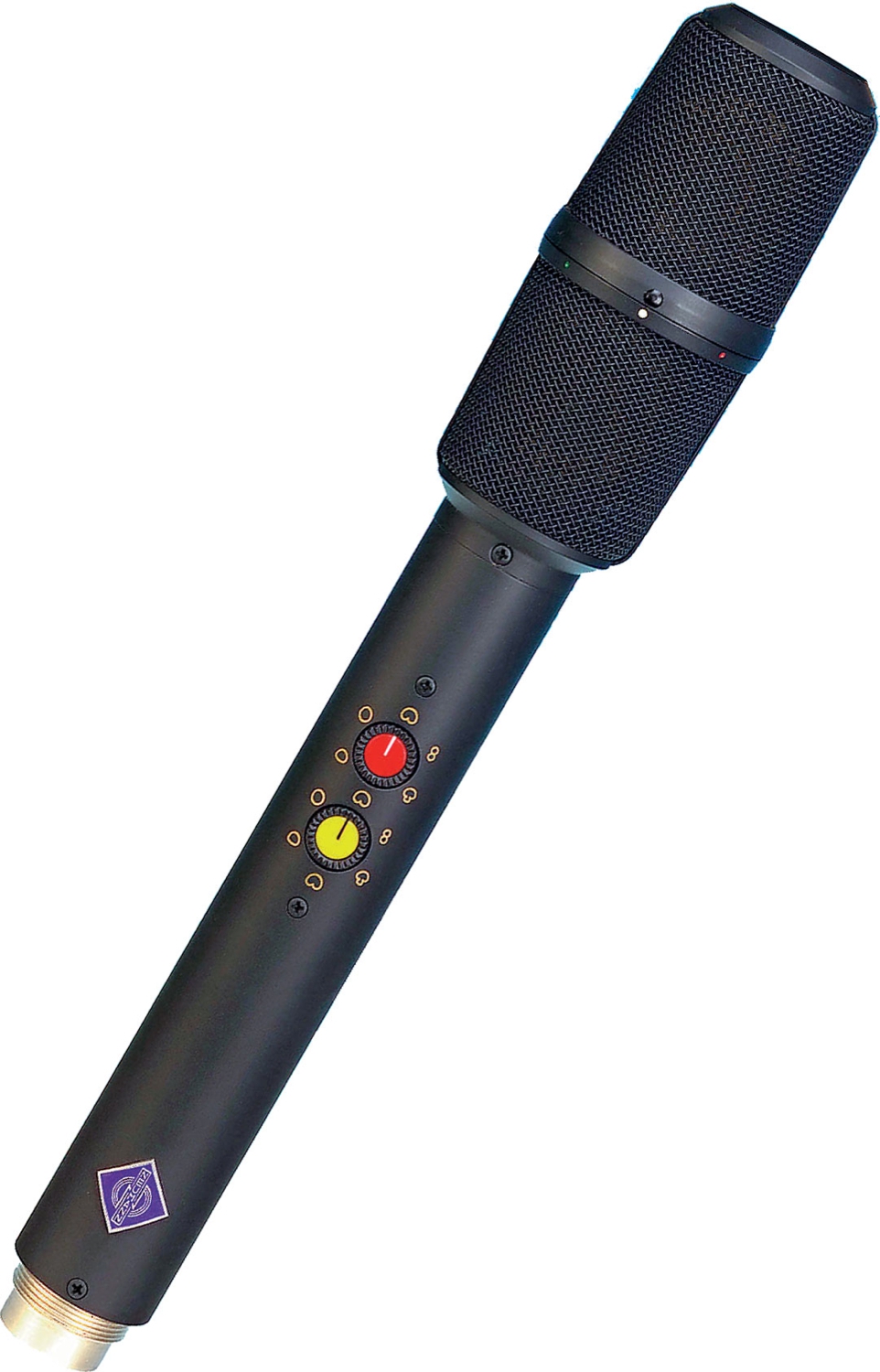

Neumann USM69 I mt - condenser studio microphone stereo for MS and XY stereophony, with free adjustment of capsule angles and selectable polar directional characteristics. It consists of the amplifier part and the capsule part. The amplifier part contains two very low noise microphone amplifiers, which operate independently of each other. The two double diaphragm capsules are mounted vertically, with the upper capsule able to rotate relative to the other over a radius of up to 270°. On the outer side of the housing along the line that separates the two capsules, there are coloured markers for identifying the position of the capsules relative to each other.

The polar directional characteristics can be selected individually for each capsule via the two rotary selectors. Power is supplied by connecting to any 48V Phantom power source, and an internal DC converter generates the necessary polarisation voltages for the capsules. It can also be used as a mono microphone, by using the two channels of the microphone in cascade or by using a single capsule of the microphone.

Microphone type: Omnidirectional, wide-angle cardioid, cardioid, hypercardioid, figure-8
Frequency range: 20 Hz-20 kHz
Sensitivity at 1 kHz / 1 kohm: 13 mV/Pa
Impedance: 150 ohms
Equivalent noise level, CCIR1: 24 dB
Equivalent noise level, A-weighted1: 13 dB-A
Signal-to-noise ratio, CCIR1 (ref. 94 dB SPL): 70 dB
Signal-to-noise ratio, A-weighted (ref. 94 dB SPL): 81 dB
Max SPL for THD 0.5%: 132 dB
Max output voltage: 3 dBu
Power supply (P48, IEC 61938): 48 V ± 4 V
Current consumption (P48, IEC 61938): 2 x 0.7 mA
Connectors: XLR5F
Diameter: 30 + 48 mm
Length: 293 mm
Finish: Black
