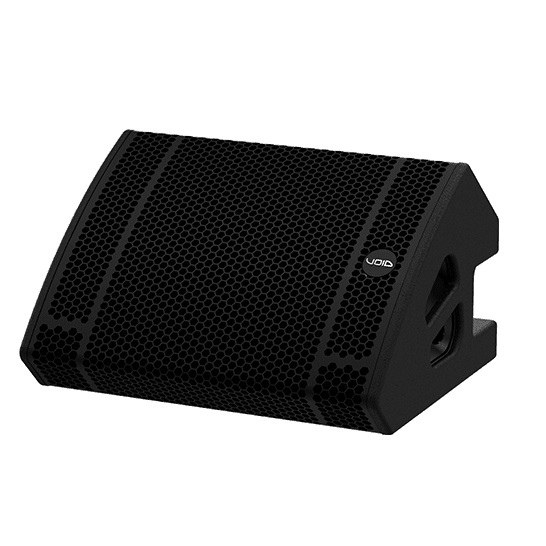

Void Acoustics ArcM 12 - The Void ArcM 12 acoustic monitoring enclosure offers multiple operating modes, allowing it to be used as a near-field DJ monitor or as a stage monitor, with the capability to be mounted on a stand or wall. In terms of mobility, it features a significantly lightweight design while maintaining an ergonomic shape to meet handling requirements. Acoustically, FEA analysis has significantly reduced port noise and air distortion.
Key features:
High-power 12” + 1.4” neodymium coaxial speaker
Two operating modes (stage monitoring and DJ monitoring)
Integrated mounting for stands with a diameter of 35 mm
Ergonomically designed handles for easy handling
Durable polyurethane finish
Type 80 mounting plate on the back for wall/ceiling mounting
Applications:
Bar, club, lounge
Corporate and AV
Live music venues
DJ monitoring
Technical specifications:
Frequency response: 60 Hz – 18 kHz ± 3dB
Sensitivity: 100 dB 1w/1m
Crossover points: 1k2Hz (acoustic)
Impedance: 1 x 8 ohms passive, 1 x 8 ohms (LF) and 1 x 16 ohms (HF) active
Power: 500 W AES
Sound pressure: 130 dB continuous, 133 dB peak
Speaker configuration: Coaxial 1 x 12” – 1 x 1.4” neodymium
