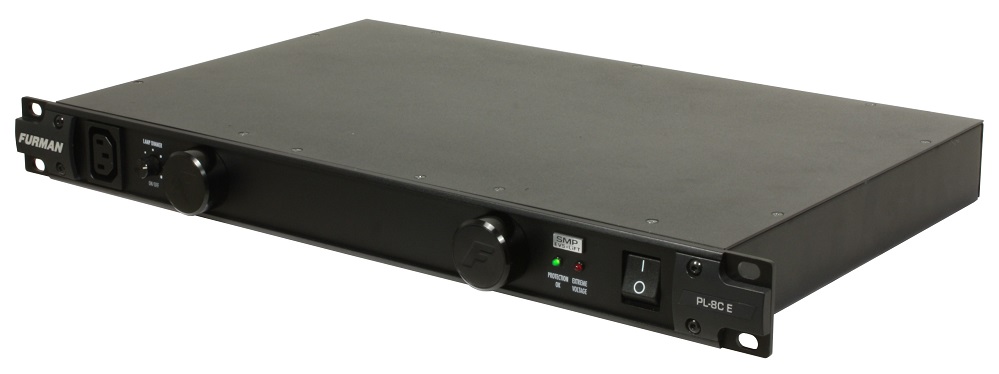

Furman PL-8 CE

Furman PL-8 CE - voltage stabiliser / distributor that combines superior protection and performance in a rack unit. It integrates Multi Stage Protection (SMP), Linear Filtering Technology (LiFT), and Extreme Voltage Shutdown (EVS) for over-voltage protection. All these features make this unit the most advanced protection against surges and voltage spikes.

Features:

• Provides the highest level of protection against constant surges and voltage spikes.
• Noise filtering through LiFT technology for audio / video clarity.
• Over-current protection via EVS circuits, which detect dangerous current levels and disconnect equipment
• connected to the PL-8 CE as well as the power unit, to prevent damage.
• Bright LED indicators.

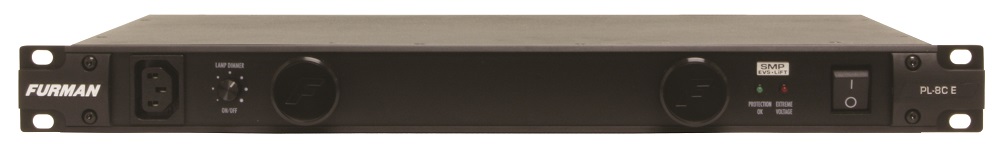

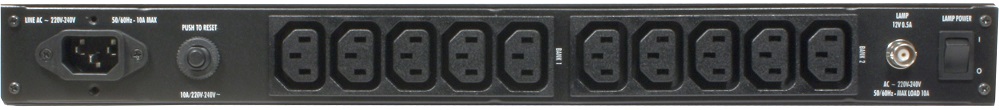

• 11 isolated power output sockets (10 on the back of the unit and one on the front), minimising interference between components and noise contamination.
• The BNC power socket located on the back of the unit allows for powering a standard gooseneck lamp (with flexible neck) for lighting.
• Magnetic circuit breaker for extra protection, rated at 10A.

Technical Specifications:

• Maximum current: 10A
• Power cable: AWG 3/1.0 mm, 2.5m long, with IEC female to 10A Schuko plug.
• Retractable lights: 2x multi-LED.
• BNC socket w/Switch: 12VAC 500MA max on the back of the unit (lamp not included).
• Operating voltage: 180 to 274 VAC.
• Surge protection: line to neutral, no ground leakage.
• Maintaining voltage peaks within normal limits: peak of 375 VAC at 3,000 A.
• Response time: 1 nanosecond.
• Maximum surge: 6,500 A.
• Noise attenuation: 10 dB at 10 kHz, 40 dB at 100 kHz, 50 dB at 500 kHz.
• Dimensions: 482.6mm W x 266.7mm D x 44.5mm H.
• Weight: 6 kg.
• Power consumption: 12 W.
