Audac LINO 10 Black

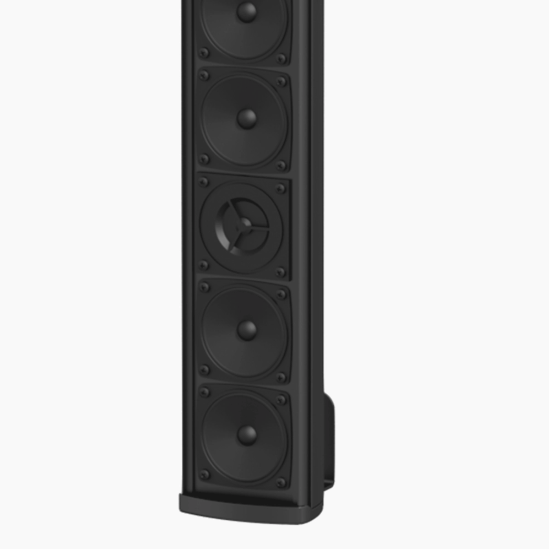

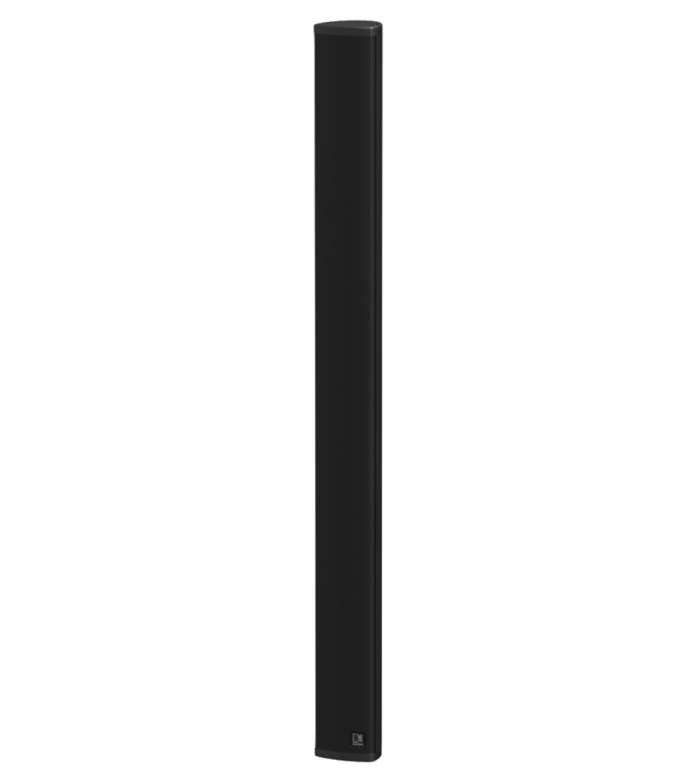

Audac LINO 10 Black - Wall-mounted column speaker consisting of 10 2" low drivers, together with a centrally positioned 1" tweeter for high frequencies. It reaches a power of 40 watts, while a multi-tapping line transformer allows it to be connected in 70V/100V sound systems with power taps for 40W, 20W, and 10W (5 W only for use at 70V).

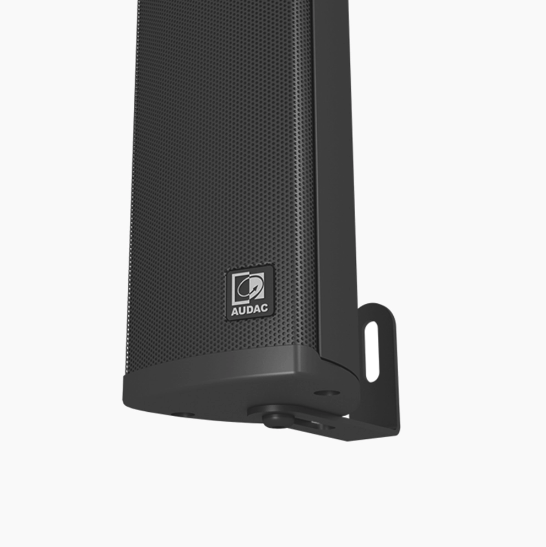

Mounting is done via an L-shaped bracket at the top and bottom, providing optimal flexibility for fixing and directional placement. The distance between the speaker and the wall is 10 mm, while it can be tilted vertically by 2°.

• RMS/AES Power 40 W
• Peak Power 160 W
• Handling Power 80 W
• Impedance 20 Ω
• Sensitivity (1W/1m) 90 dB
• Sound Pressure SPL (max. W/1m) 107 dB
• Frequency Range (-10 dB) 120 Hz - 20 kHz
• Frequency Response (± 3 dB) 170 Hz - 15 kHz
• Line Transformer Connections
  • 1 125 Ω - 100 V / Not used - 70 V / 40 W
  • 2 250 Ω - 100 V / 40 W - 70 V / 20 W
  • 3 500 Ω - 100 V / 20 W - 70 V / 10 W
  • 4 1000 Ω - 100 V / 10 W - 70 V / 5 W
• Drivers 10 x 2" for mid/bass + 1 x 1" high driver
• Connectors: EURO - Terminal Block with 6 pins
• Operating Temperature -20 - 50 °C
• Dispersion
  • Horizontal 160° (-6 dB avg 1 kHz - 4 kHz)
  • Vertical 15° (-6 dB avg 1 kHz - 4 kHz)
• Protection Rating IP3x
• Colours Black
• Construction Aluminium
• Front Finish - Aluminium grille
• Dimensions 72 x 796 x 68.3 mm
• Weight 3.7 kg
• Included Accessories
  • 1 x EURO TERMINAL BLOCK with 6 pins Input Connectors
  • L-shaped mounting bracket
