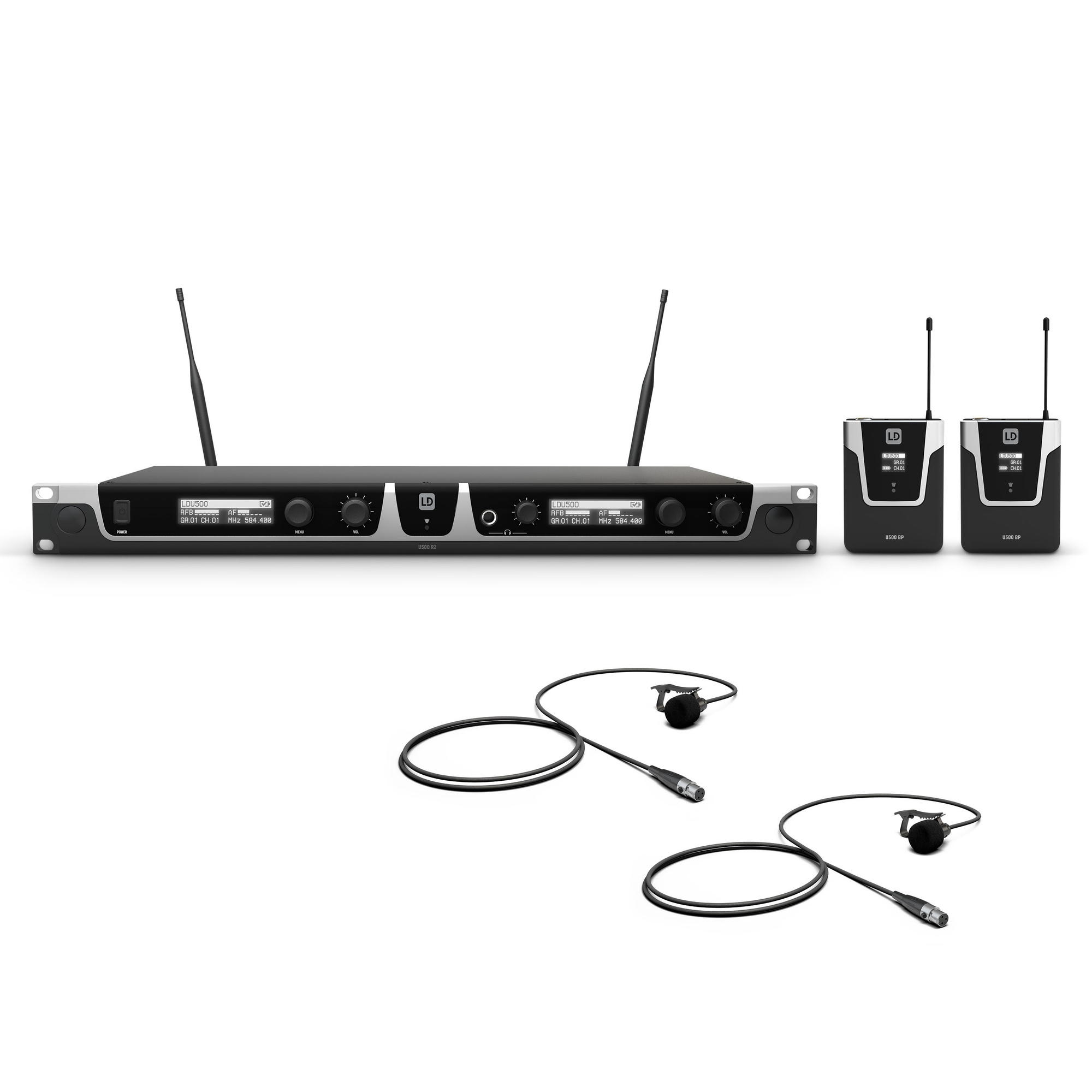

LD Systems U505 BPL2 - Wireless system consisting of a dual wireless receiver and 2 pocket transmitters with lavalier microphones. The transmission power is selectable up to 30 mW and allows a transmission distance in open field of over 100 m. The system features automatic scanning to find the best available frequency and convenient infrared synchronization between the receiver and transmitter. High-contrast OLED screens provide an excellent overview of functions, with indicators for group, channel, radio frequency, signal strength, and battery status. You can even enter individual user names.
In addition to the squelch function, the transmitter's silent pilot tone ensures reliable operation, and the interference protection interrupts the receiver if signals without this tone are present. The efficient U500 technology and high-quality components provide clear transmission without distortion and latency. The low power consumption allows the transmitter to operate for up to 10 hours powered by 2 AA batteries.
Dual Receiver - LD Systems U505 R
UHF frequency range: 584 - 608 MHz
Type: true diversity
Modulation type: FM
Channels: 2 x 160
Groups: 2 x 10
Antenna inputs: 2
Antenna connector: BNC
Noise reduction: squelch
Signal-to-noise ratio: > 105 dB
THD: < 0.1 %
Controls: volume
Audio output: balanced 2 x XLR connector
Indicators: 2 x LC display
Power supply: 13.5 V DC
Mix audio output: balanced, XLR connector
Mix audio output: unbalanced 2 x 6.3 mm TS jack
Maximum output level: -8 dBu
Headphone output: 1 x 6.3 mm TRS jack connector
Weight: 2.05 kg
IR frequency synchronization: yes
Dimensions (W x H x D): 483 x 45 x 190 mm
Included accessories: power supply
Pocket/Belt Transmitter U505 BP:
3-pin mini XLR connection
Frequency response: 30 - 16,000 Hz
Signal-to-noise ratio: over 90 dB
Variable RF signal power: 2 mW, 10 mW, 30 mW
Power supply: 2 x AA batteries, over 10 hours of autonomy
Detachable antenna, pilot tone squelch, switchable gain
WS 100 ML Lavalier Microphone:
Condenser type
Cardioid characteristic
Frequency range: 20 - 20,000 Hz
Impedance 680 Ohms
Mini XLR connector compatible with LD Systems transmitters
