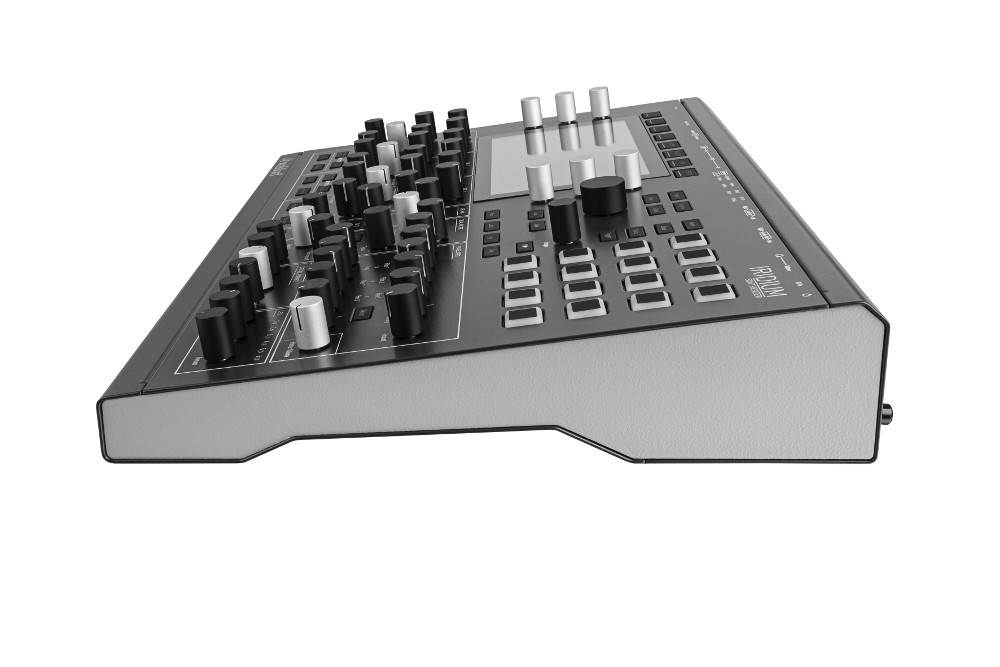

Waldorf Iridium

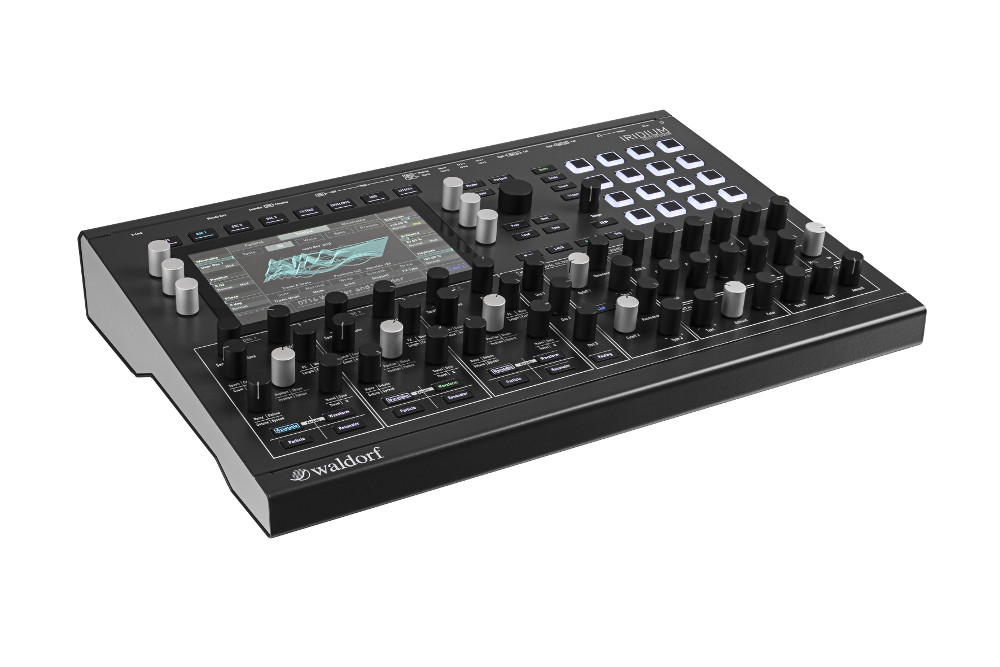

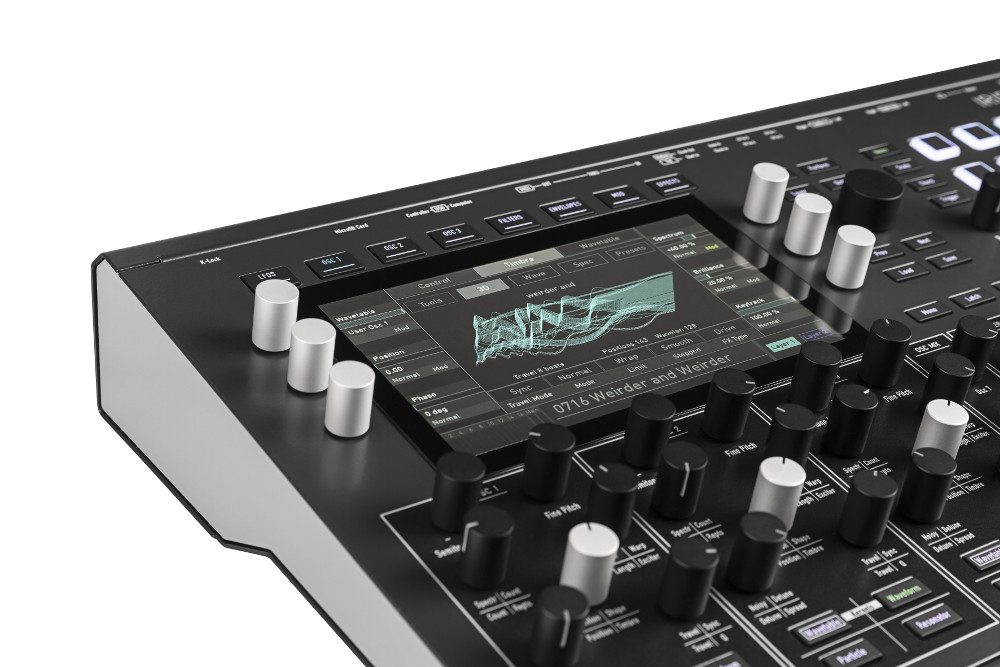

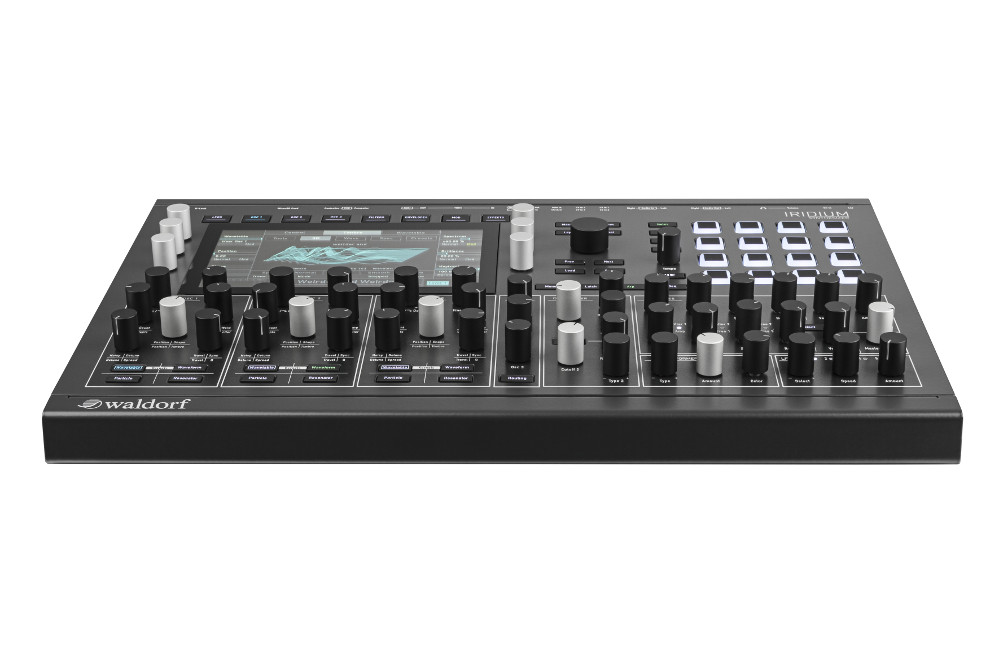

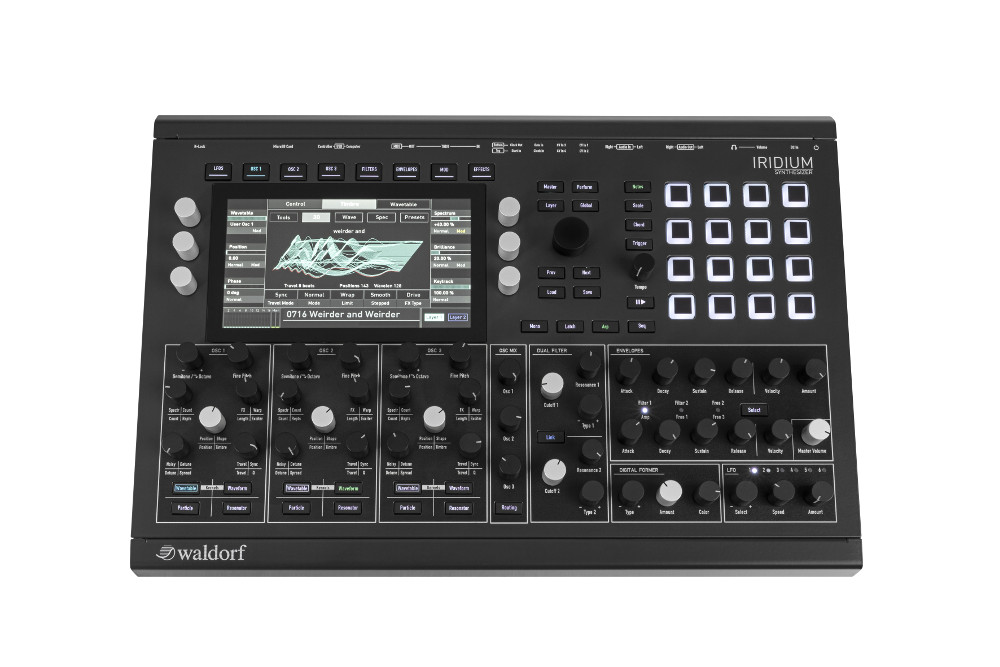

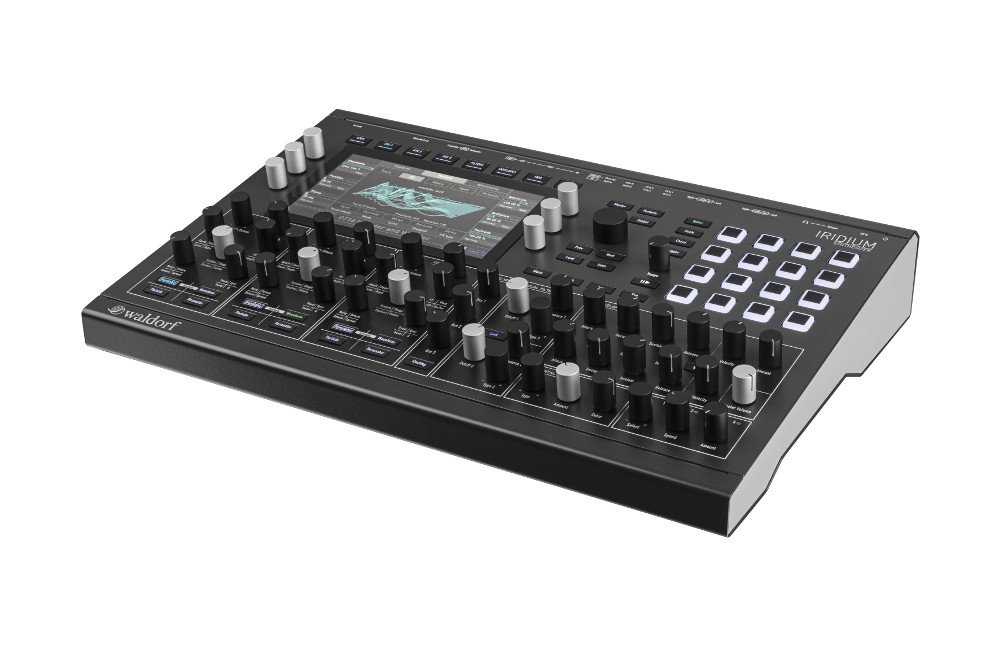

Waldorf Iridium - High-end digital polyphonic synthesizer with 16 voices, equipped with 16 silicone pads with RGB backlighting, 3 digital oscillators per voice and the ability to select between sound generators. It also features an intuitive touchscreen, aluminium knobs and a metal casing, providing an elegant look and easy workflow. It is compatible with the synth sound generator found in the Waldorf Quantum model.

• Polyphony: 16 voices, duo-timbral
• Selection between the following sound generators/modes: Wavetable, Waveform (VA), Granular Sampler, Resonator, Particle (Sampling and Granular Sampling), Kernels
• 3 stereo filters per voice
• Dual digital filters:
  • 2 filters with independent modes
  • 12/24dB LP/HP/BP in all shapes
  • Models: Nave, Largo, PPG, Quantum and StateVariable
• Digital former:
  • Filter models from Waldorf Nave, Largo and PPG in HP/LP/BP/Notch
  • Comb filter
  • Bitcrusher
  • Drive
  • RingMod
  • StateVariable mode
  • Analyzer function displayed in Filter view
  • Sophisticated filter routing options with pan and modifiable levels
• Modulators:
  • 6 Envelopes
  • 6 LFOs
  • Komplex Modulator (LFO/Envelope with user-defined shape)
• Mod Matrix:
  • 40 slots
  • Fast Assign mode
  • One additional control per slot
  • Identical sources and destinations can be used multiple times until the matrix is full

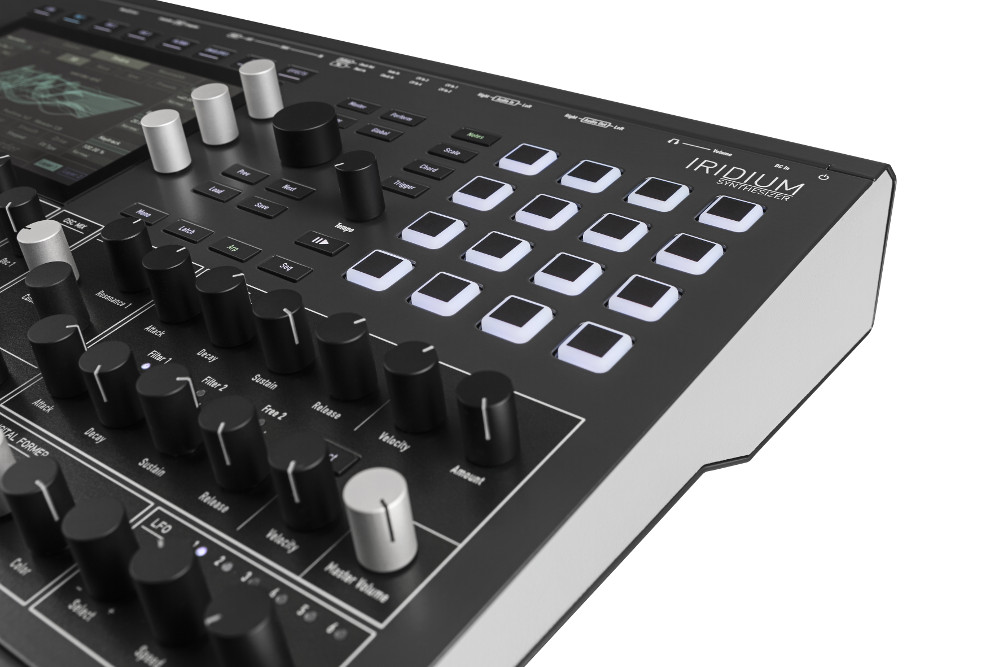

• Pads:
  • 4x4 silicone matrix with RGB backlit
  • The pads can play notes, chords, arpeggios and sequences
  • Latch mode
• Performance features:
  • Arpeggiator
  • Step Sequencer with up to 32 steps for notes and parameters
  • Favourite patch section for quick selection
  • Modulation wheel, Pitch Bend and Aftertouch located on the screen
• Patches
  • Over 1000 factory preset sounds
  • 7000 patch memory slot capacity (numbers 0000-9999 can be used)
  • Patches from Quantum can be loaded (also, patches from Iridium can be loaded into Quantum)
  • Category filter for the patch list
  • 2 GB flash memory with user samples

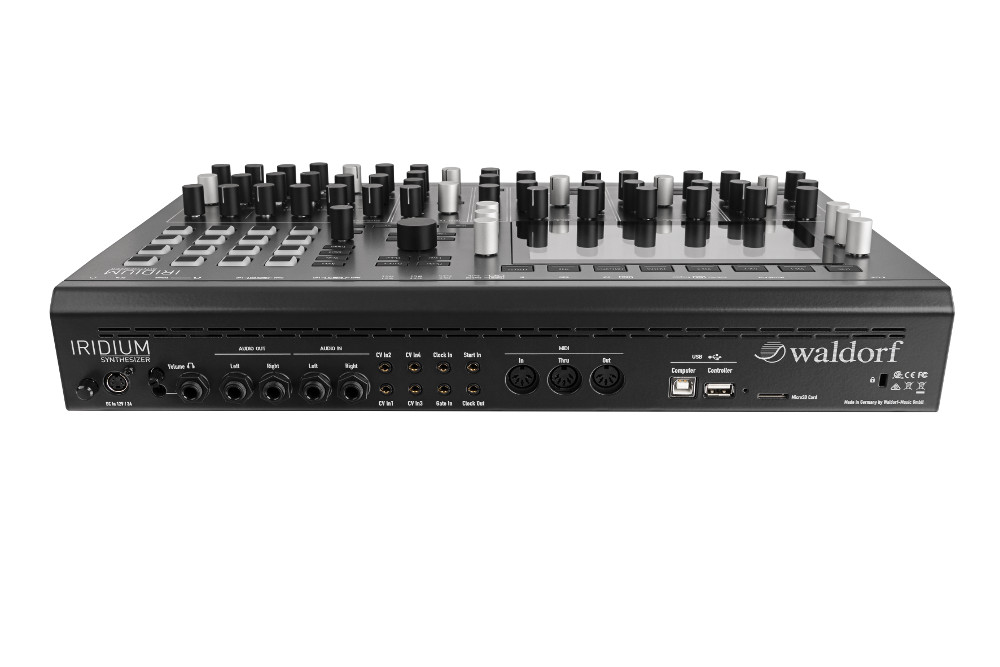

• Connectors:
  • 2 x outputs with TS connectors
  • 2 x inputs with TS connectors
  • headphone output with Gain control
  • DIN MIDI In/Out/Thru
  • MIDI over USB
  • USB Host
  • MicroSD slot
  • 4 x CV inputs plus Gate In, Trigger In, Clock In, Clock Out
  • CV inputs can be used as modulation sources in Mod Matrix

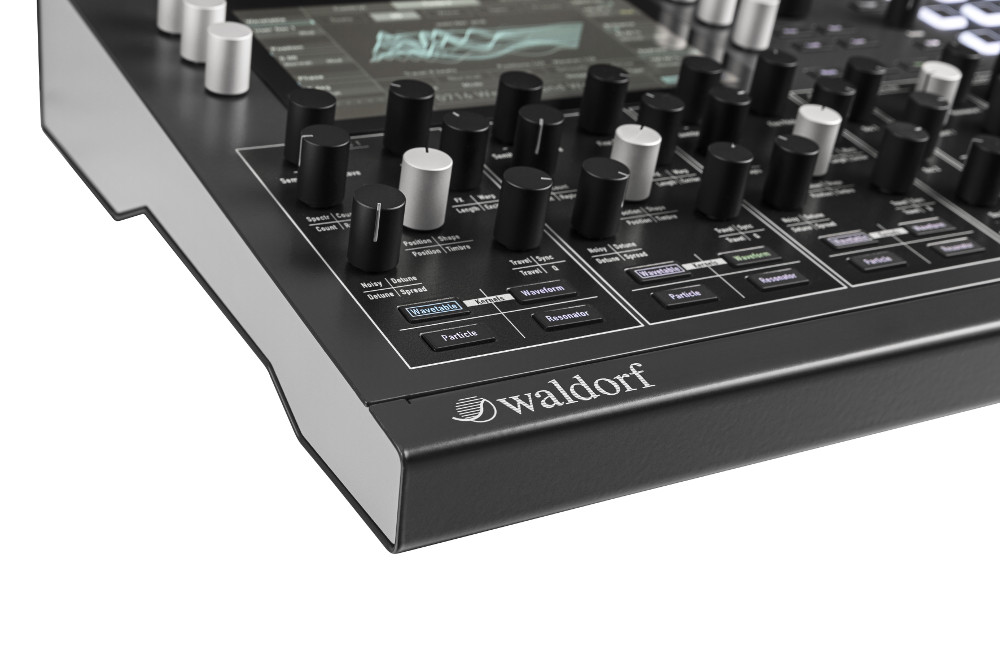

• Material: Metal casing with aluminium knobs
• Dimensions: 440 mm x 305 mm x 85 mm
• Weight: 5.4 kg
