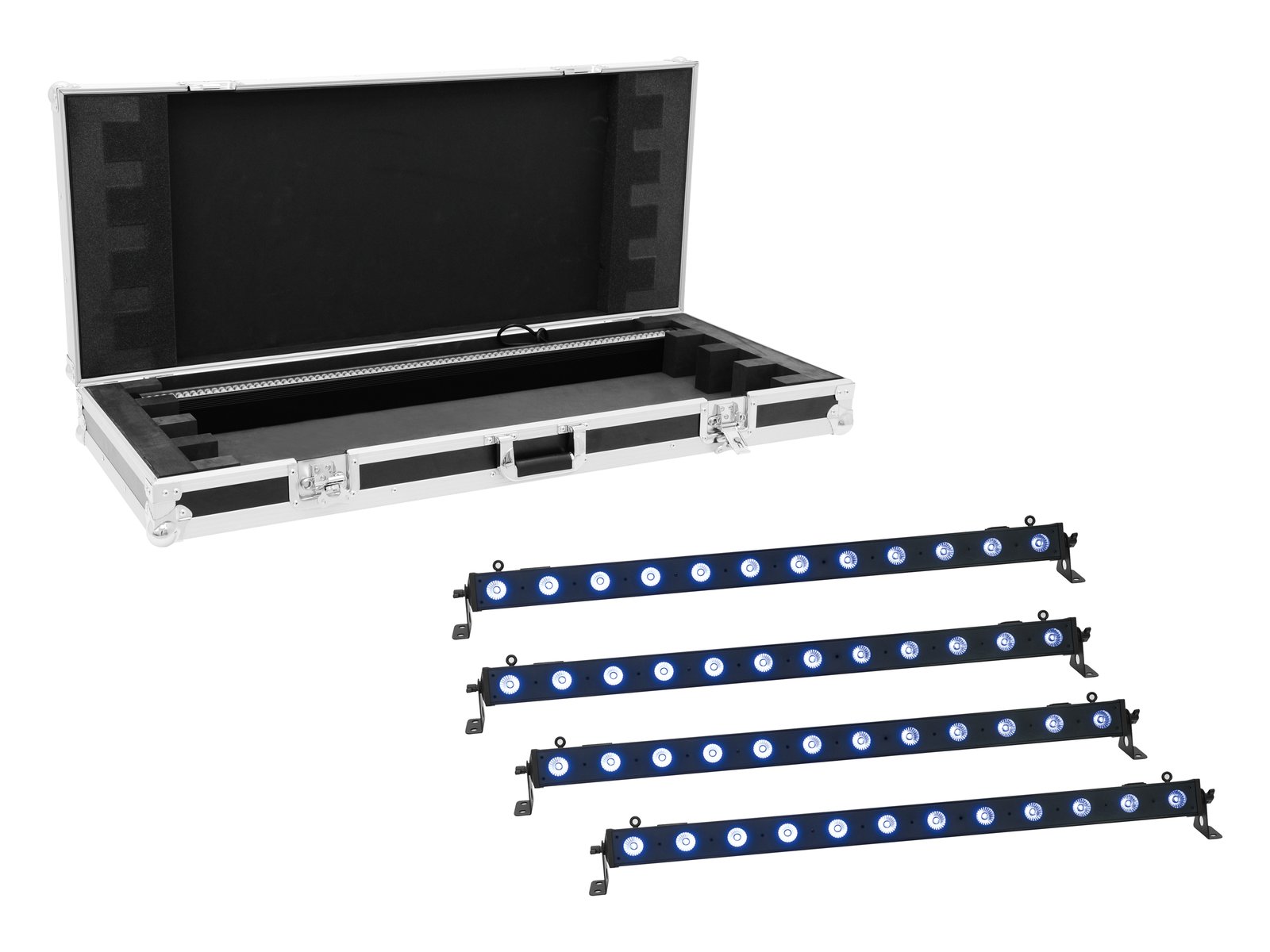

4x light effect bar (1 m) with RGB+UV colour mixing, including flightcase
EUROLITE LED BAR-12 QCL RGB+UV Bar
Light effect bar (1 m) with RGB+UV colour mixing
- 12 powerful 4 W high-power 4in1 QCL RGB/UV LEDs (homogeneous colour mix)
- Seamless colour mixing; adjustable colour change; adjustable fade; electronic dimmer
- Strobe effect; UV effect
- Integrated show programmes
- Direct colour selection for 20 preset colours
- Can be operated in 2; 4; 5; 6; 9 CH mode
- The device is cooled by passive convection cooling
- Standalone control; DMX; Sound to light via microphone; Master/slave function; QuickDMX via USB (optional); W-DMX wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Flicker-free
- With a beam angle of 20°
- With mounting bracket
- LED display with 4 digits and 7 segments
- Preprogrammed in Light´J; LED PC-Control 512; EASY SHOW 2; Light Captain; EASY SHOW 2; Easy Light Show 3
- Silent operation
- Power input and output for connecting up to 8 units
- For more information about this product, please refer to the technical data sheet in "Downloads"
Package contents
- 1 x bar, 1 x user manual, 1 x power cable, 2 x mounting brackets, 2 x screws, 2 x washers
ROADINGER Flightcase EC-B252 4x LED BAR-252 RGB
Practical flightcase for 4 x LED BAR-252 RGB
- High-quality workmanship with 7 mm birch multiplex, black, laminated
- Interior with foam lining
- 30mm aluminium profile frames with rounded edges
- Sturdy transport handle
- 3 chrome locks for overturning
- 2 high-quality butterfly locks
- For more information about this product, please refer to the technical data sheet in "Downloads"
| Weight: | 22.30 kg |
| EUROLITE LED BAR-12 QCL RGB+UV Bar |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 25 W |
| IP rating: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC (M) connector, power cable with safety plug (included) |
| Output power: | 1 x IEC (F) connector version |
| Lamp type: | LED lamp |
| LED: | 12 x 4 W high-power 4in1 QCL RGB/UV (homogeneous colour mix) |
| Flash rate: | 0 - 20 Hz |
| DMX channels: | 2; 4; 5; 6; 9 |
| DMX input: | Mounting version XLR (M) with 3 pins |
| DMX output: | Mounting version XLR (F) with 3 pins |
| Cooling: | Passive convection cooling |
| Control: | Standalone; DMX; Sound to light via microphone; Master/slave function; QuickDMX via USB (optional); W-DMX wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Preprogrammed in: | Light'J; LED PC-Control 512; EASY SHOW 2; Light Captain; EASY SHOW 2; Easy Light Show 3 |
| Beam angle: | 20° |
| Beam angle (1/2 peak): | 20° |
| Beam angle (1/10 peak): | 33° |
| Wavelength: | Ultraviolet (UV) 399 nm |
| Housing colour: | Black |
| Mounting system: | Mounting bracket |
| Display type: | LED display with 4 digits and 7 segments |
| Material: | Aluminium; metal |
| dimensions: | Length: 1.07 m
Depth: 6.5 cm
Height: 10.3 cm |
| Weight: | 2.85 kg |
| Noise rating: | Class 0 (no noise) |
| Power cable |
| Cable construction: | 3 x 0.75 mm² H05VV-F |
| Cable length: | 1.2 m |
| Mounting bracket |
| Parts: | 2 pcs |
| Mounting hole diameter: | 1 x Ø20mm; 1 x Ø11mm; 2 x Ø7mm |
| Material: | Metal, 2 mm |
| Legal specifications |
| special product: | Not designed for household room lighting |
| Intended use: | Show effect lighting |
| ROADINGER Flightcase EC-B252 4x LED BAR-252 RGB |
| Maximum capacity: | 25 kg |
| Aluminium profile frames: | 30 mm |
| Transport handle: | 1 pcs |
| Stop hinge: | 3 pcs |
| Lock: | Butterfly lock: 2 pcs |
| Material: | Birch multiplex, 7 mm |
| Colour: | Black, laminated; dark brown, laminated |
| Internal dimensions: | 1.08 m x 44 cm x 7.5 cm |
| Device compartment: | 1.08 m x 6.5 cm x 7.5 cm |
| dimensions: | Width: 1.17 m
Depth: 48 cm
Height: 17 cm |
| Weight: | 10.90 kg |
