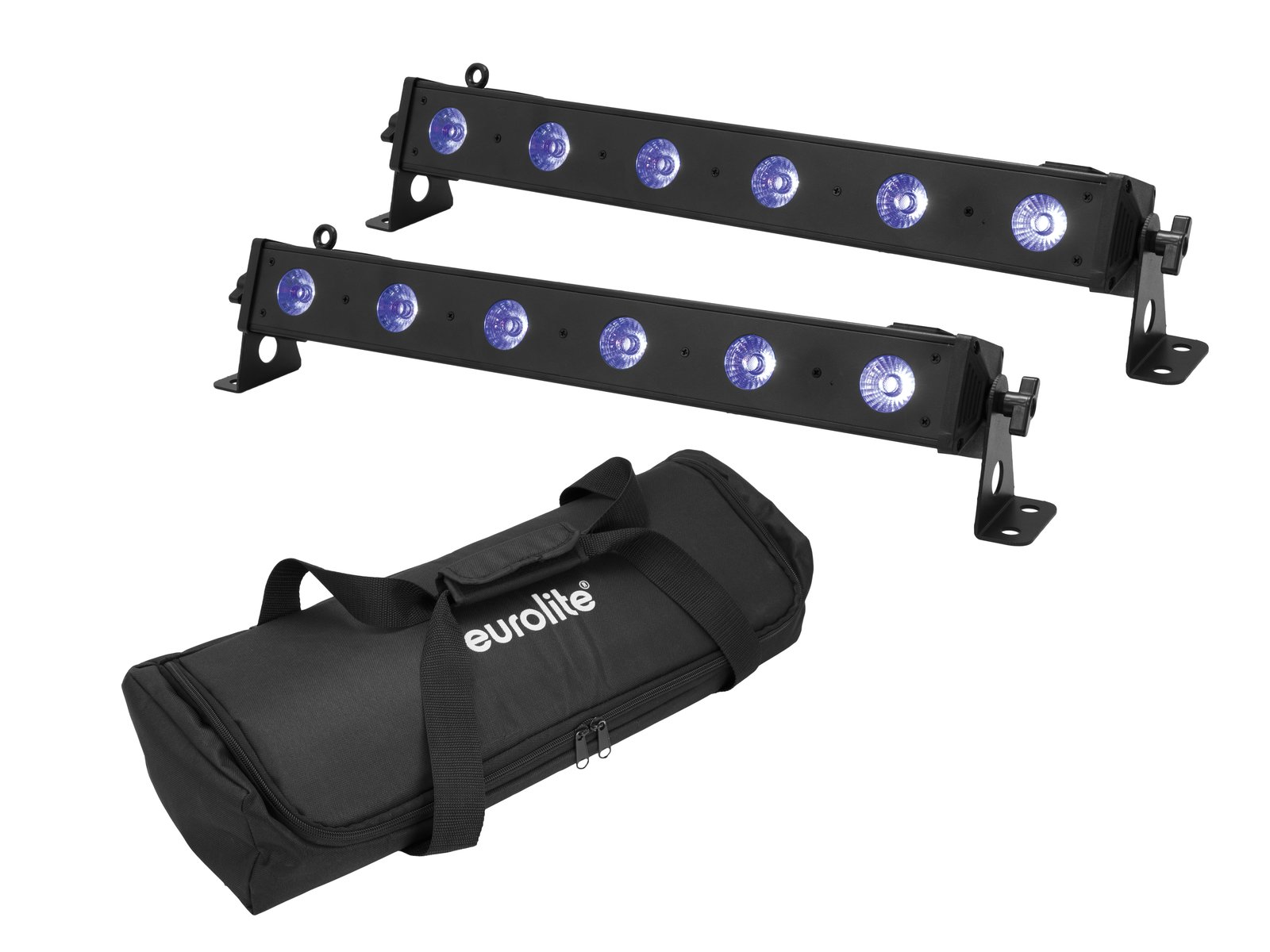

2x bar with lighting effect (60 cm) with RGB+UV colour mixing, including soft bag
EUROLITE LED BAR-6 QCL RGB+UV Bar
Lighting effects bar (60 cm) with RGB+UV colour mixing
- 6 powerful 4 W high-power 4in1 QCL RGB/UV LEDs (homogeneous colour mixing)
- Seamless colour mixing; adjustable colour change; adjustable fade; electronic dimmer
- Strobe effect; UV effect
- Integrated show programmes
- Direct colour selection for 20 preset colours
- Can be operated in 2; 4; 5; 9; 6 CH mode
- The device is cooled by passive convection cooling
- Standalone control; DMX; Sound-to-light via microphone; Master/slave function; QuickDMX via USB (optional); W-DMX wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Without flicker
- With mounting bracket
- LED display with 4 digits and 7 segments
- Preprogrammed in Light´J; LED PC-Control 512; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; SHOW EASY 3
- Silent operation
- Network input and output for connecting power up to 8 units
- For more information about this product, please consult the technical sheet in "Downloads"
Package contents
- 1 x bar, 1 x power cable, 2 x mounting brackets, 2 x thumb screws, 2 x washers, 1 x user manual
EUROLITE SB-205 soft bag
Universal soft bag
- Ideal for, for example, LED bars with a length of 50 cm and accessories
- High-quality workmanship with black nylon
- Water-resistant
- With separator
- With 2 compartments for devices
- Interior with foam padding
- 2 robust carrying handles
| Weight: | 3.80 kg |
| EUROLITE LED BAR-6 QCL RGB+UV Bar |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 14 W |
| IP rating: | IP20 |
| Power connection: | Network input via IEC (M) connector mounting version with safety plug (supplied) |
| Output power: | 1 x IEC (F) connector mounting version |
| Type of lamp: | LED lamp |
| LED: | 6 x 4 W high-power 4in1 QCL RGB/UV (homogeneous colour mixing) |
| Strobe rate: | 0 - 20 Hz |
| DMX channels: | 2; 4; 5; 9; 6 |
| DMX input: | 1 x XLR (M) mounting version with 3 pins |
| DMX output: | 1 x XLR (F) mounting version with 3 pins |
| Cooling: | Passive cooling by convection |
| Control: | Standalone; DMX; Sound-to-light via microphone; Master/slave function; QuickDMX via USB (optional); W-DMX wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Preprogrammed in: | Light´J; LED PC-Control 512; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; SHOW EASY 3 |
| Beam angle (1/2 peak): | 20° |
| Beam angle (1/10 peak): | 33° |
| Housing colour: | Black |
| Mounting system: | Mounting bracket |
| Display type: | LED display with 4 digits and 7 segments |
| Dimensions: | Length: 59.5 cm
Depth: 6.5 cm
Height: 10.3 cm |
| Weight: | 1.75 kg |
| Noise rating: | Class 0 (no noise) |
| Power cable |
| Cable construction: | 3 x 0.75 mm² H05VV-F |
| Cable length: | Approx. 1.1 m |
| Mounting bracket |
| Parts: | 2 pcs |
| Mounting hole diameter: | 1 x Ø20mm; 1 x Ø11mm; 1 x Ø8mm; 2 x Ø7mm |
| Material: | Metal, 2 mm |
| Legal specifications |
| special product: | Not designed for lighting a domestic room |
| Intended use: | Show lighting with effect |
| EUROLITE SB-205 soft bag |
| Maximum capacity: | 25 kg |
| Carrying handle: | 2 pcs |
| Material: | Nylon, water-repellent |
| Colour: | Black |
| Dimensions: | Width: 57.5 cm
Depth: 17 cm
Height: 12 cm |
| Weight: | 300 g |
