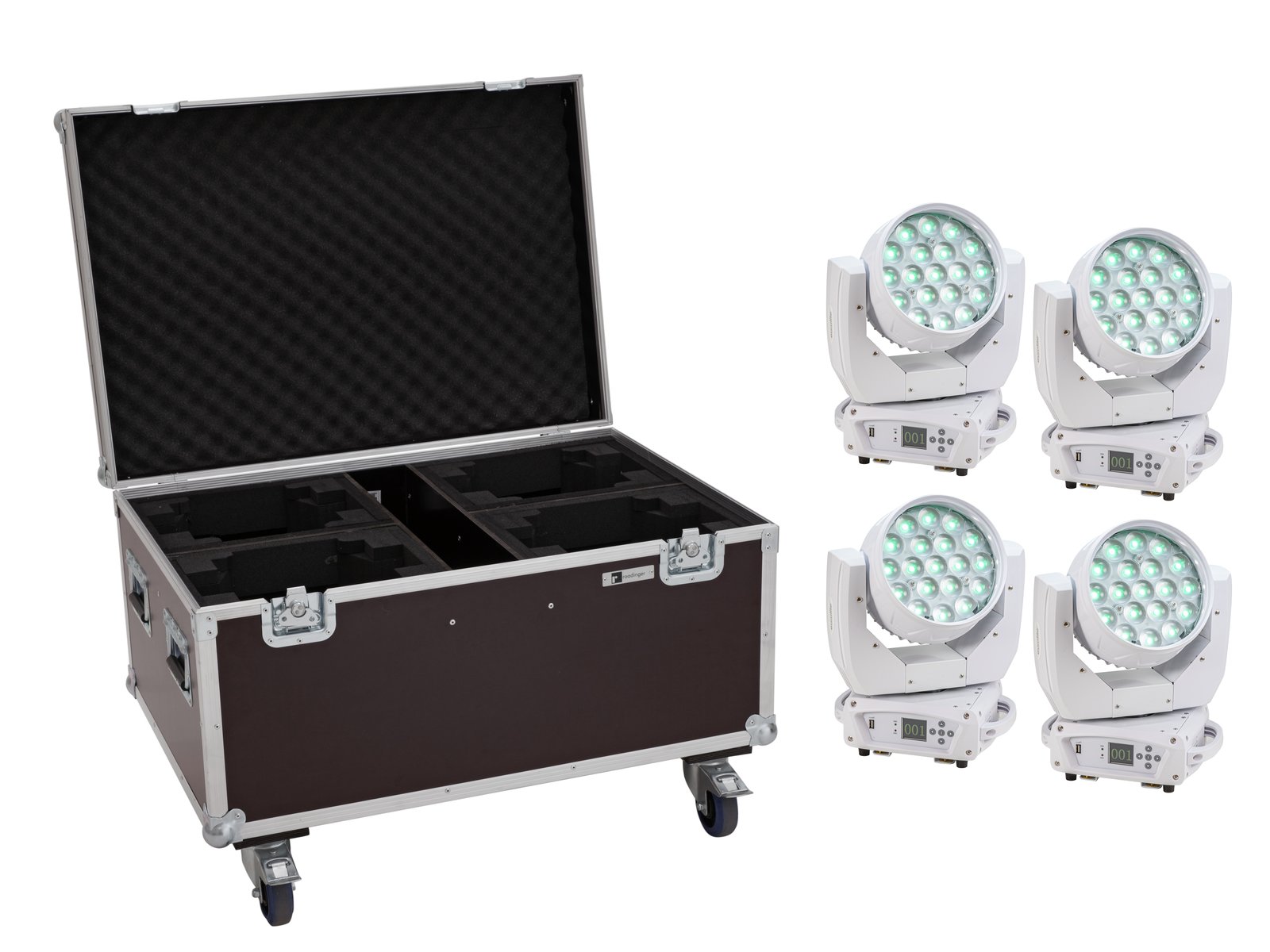

EUROLITE LED TMH-X4 Moving Head Wash Zoom wh
Wash with 19 intense 15 W LEDs (4 in 1), motorised zoom and white casing
- 19 powerful 15 W COB (chip-on-board) 4in1 QCL RGBW LEDs (homogeneous colour mix)
3 separate control segments - Positioning at 630° PAN and 270° TILT
- Automatic position correction (feedback)
- Precise positioning (16-bit resolution)
- Motor-driven zoom
- Integrated show programmes
- Can be operated in 16; 24 CH mode
- The device is cooled by a temperature-controlled fan at the head; cooling fan at the base
- Standalone control; DMX; Sound to light via microphone; Master/slave function; QuickDMX via USB (optional); W-DMX via wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Without flickering
- With a beam angle of 1° - 40°
- Multicolour LCD display
- Flicker-free colour mixing; adjustable colour change; electronic dimmer
- Strobe effect
- Preprogrammed in Light´J; LED PC-Control 512; EASY SHOW 1; Light Captain
- Input and output for power connection for up to 8 units
Package contents
- 1 x moving light, 1 x user manual, 1 x power cable, 2 x Omega bracket
ROADINGER Flightcase 4x LED TMH-X4 with wheels
PRO flightcase for 4x LED TMH-X4
- For optimal security
- With compartment for accessories
- High-quality workmanship with 7 mm birch multiplex, dark brown, laminated
- Interior with foam lining
- Frames made of 30mm aluminium profile with rounded edges
- 4 case handles with hinges, chrome-plated
- 2 chrome-plated locks for overturning
- 2 high-quality butterfly locks
- 4 wheels with 2 locking brakes
- Brand hardware
| Weight: | 56.73 kg |
| EUROLITE LED TMH-X4 Moving Head Wash Zoom wh |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 225 W |
| IP rating: | IP20 |
| Power connection: | Input via P-Con (blue), power cable mounting version with safety plug |
| Output power: | P-Con (grey), mounting version |
| Fuse: | 5 x 20 mm, T 2 A replaceable fuse |
| Type of lamp: | LED lamp |
| LED: | 19 x 15 W COB (chip-on-board) 4in1 QCL RGBW (homogeneous colour mix) |
| Max. TILT movement: | 270° Precise positioning (16-bit resolution) Automatic position correction (feedback) |
| Max. PAN movement: | 630° Precise positioning (16-bit resolution) Automatic position correction (feedback) |
| Equipment: | Motor-driven zoom |
| DMX channels: | 16; 24 |
| DMX input: | XLR (M) mounting version with 3 pins |
| DMX output: | XLR (F) mounting version with 3 pins |
| Cooling: | Temperature-controlled fan at the head
Cooling fan at the base |
| Control: | Standalone; DMX; Sound to light via microphone; Master/slave function; QuickDMX via USB (optional); W-DMX via wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Preprogrammed in: | Light´J; LED PC-Control 512; EASY SHOW 1; Light Captain |
| Beam angle: | 1° - 40° |
| Beam angle (1/2 peak): | 1 - 25° |
| Beam angle (1/10 peak): | 8 - 40° |
| Illuminance in lux (lx): | Narrow red (R) 3m: 2779 lx, 6m: 763 lx
Narrow green (G) 3m: 7893 lx, 6m: 1841 lx
Narrow blue (B) 3m: 1468 lx, 6m: 390 lx
Narrow cool white (CW) 3m: 9558 lx, 6m: 2468 lx
Narrow all 3m: 19553 lx, 6m: 5001 lx
Wide red (R) 3m: 272 lx, 6m: 73 lx
Wide green (G) 3m: 583 lx, 6m: 160 lx
Wide blue (B) 3m: 117 lx, 6m: 34 lx
Wide cool white (CW) 3m: 740 lx, 6m: 211 lx
Wide all 3m: 1568 lx, 6m: 439 lx |
| Colour of casing: | white |
| Display type: | Multicolour LCD display |
| Dimensions: | Width: 30.5 cm
Depth: 20.0 cm
Height: 40.0 cm |
| Weight: | 8.62 kg |
| Noise classification: | Class 3 (clearly perceptible sounds) |
| Legal specifications |
| special product: | Not designed for lighting a domestic room |
| Intended use: | Show lighting with effect |
| ROADINGER Flightcase 4x LED TMH-X4 with wheels |
| Maximum capacity: | 100 kg |
| Aluminium profile frames: | 30 mm |
| Case handles: | 4 pcs |
| Hinge stops: | 2 pcs |
| Butterfly locks: | 2 pcs |
| Transport aid: | 4 x wheels with 2 locking brakes |
| Brand usage: | Brand hardware |
| Material: | Birch multiplex, 7 mm; birch multiplex |
| Colour: | Dark brown, laminated |
| Device compartment: | 32 cm x 24 cm x 40 cm |
| Accessory compartment: | 10 cm x 57 cm x 40 cm |
| Internal dimensions: | 84 cm x 57 cm x 40 cm |
| Dimensions: | Width: 88 cm
Depth: 61 cm
Height: 58.5 cm |
| Weight: | 22.25 kg |
