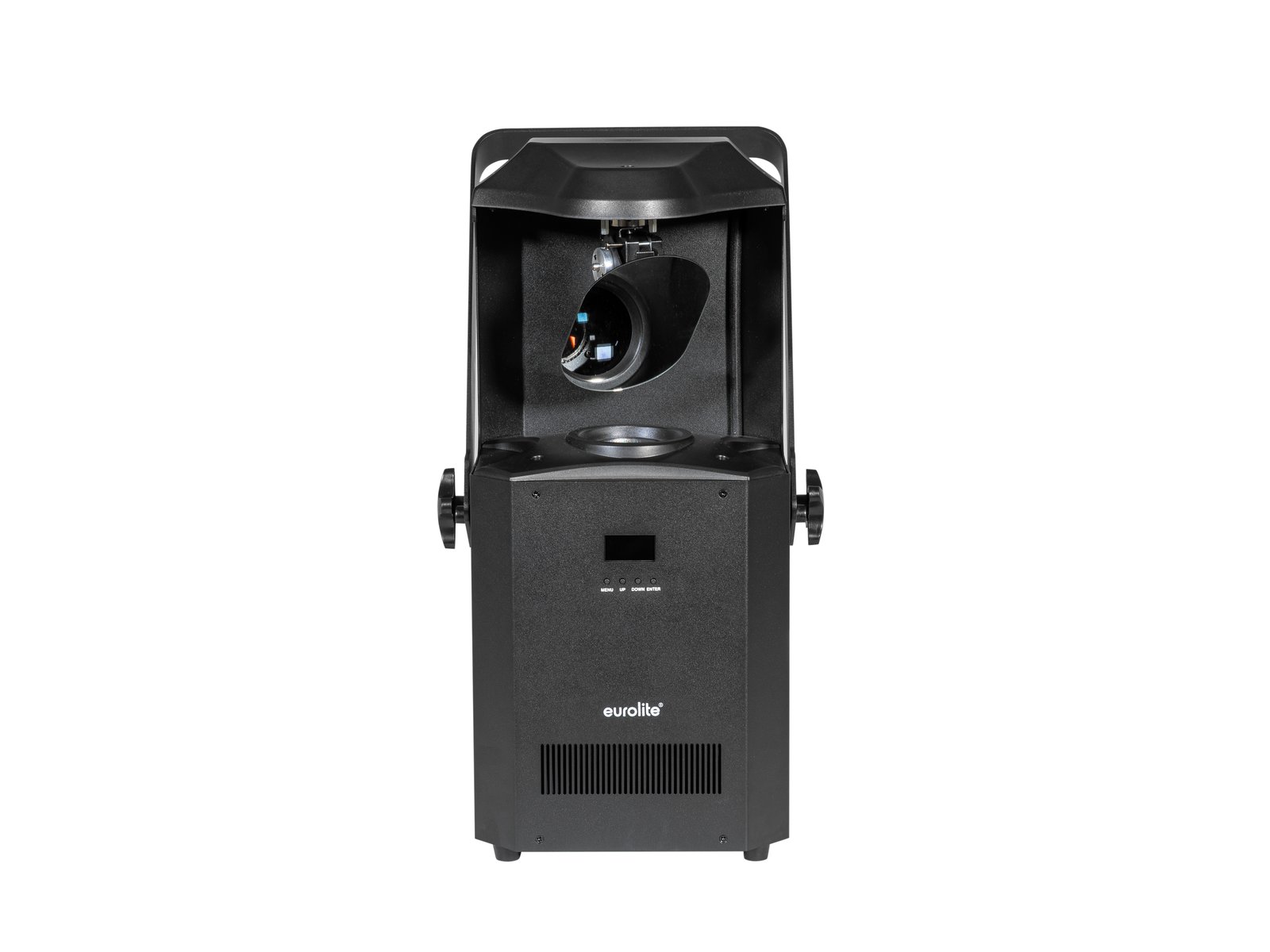

Scanner with 150 W LED, rotating gobos and 4-facet prism, color wheel and motorized focus
1 powerful LED 150 W COB (chip-on-board) cold white (CW)
Positioning within 180° PAN and 70° TILT
Focus motor-driven; color wheel; gobo wheel with rotating gobos; Prism 4-fold rotating
Dimmer electronic
Gobo effect; Strobe effect
Color wheel with 8 dichroic filters plus open half colors selectable, Rainbow effect with adjustable speed in both directions
Gobo wheel with rotating gobos, 7 gobos and open shake effect
Gobos changeable
Slot-in gobo system for easy gobo replacement
9 integrated show programs
The device is cooled by temperature-controlled fan
Control via stand-alone; Sound to light via Microphone; Master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Flicker-free
With a beam angle of 11°
OLED display
Rubber feet
Preprogrammed in Light Captain
Mains input and output for power linking up to 8 units
For application areas such as: Clubs/dancing school; Wedding/gala/events; Stage; Rental
Application possibility: Standing; suspended; on tripod
Package contents
1 x device, 1 x user manual, 1 x power cord, 1 x safety eyelet
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
175 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug
Power output:
1 x P-Con (gray), mounting version
Fuse:
5 x 20 mm, F 5 A Fuse replaceable
Lamp type:
LED lamp
LED:
1 x 150 W COB (chip-on-board) cold white (CW)
Color temperature:
10000K
Max. TILT movement:
70° Positioning
Max. PAN movement:
180°
Flash rate:
1 - 30 Hz
Equipment:
Focus motor-driven; color wheel; gobo wheel with rotating gobos; Prism 4-fold rotating
Color generation:
Color wheel with 8 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed in both directions
Gobos:
Gobo wheel with rotating gobos, 7 gobos and open Outside diameter 19,8mm Image diameter 17mm Shake effect Gobos changeable Slot-in gobo system for easy gobo replacement
DMX channels:
13
DMX input:
3-pin XLR (M) mounting version
DMX output:
3-pin XLR (F) mounting version
Cooling:
Temperature-controlled fan
Control:
Stand-alone; Sound to light via Microphone; Master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
