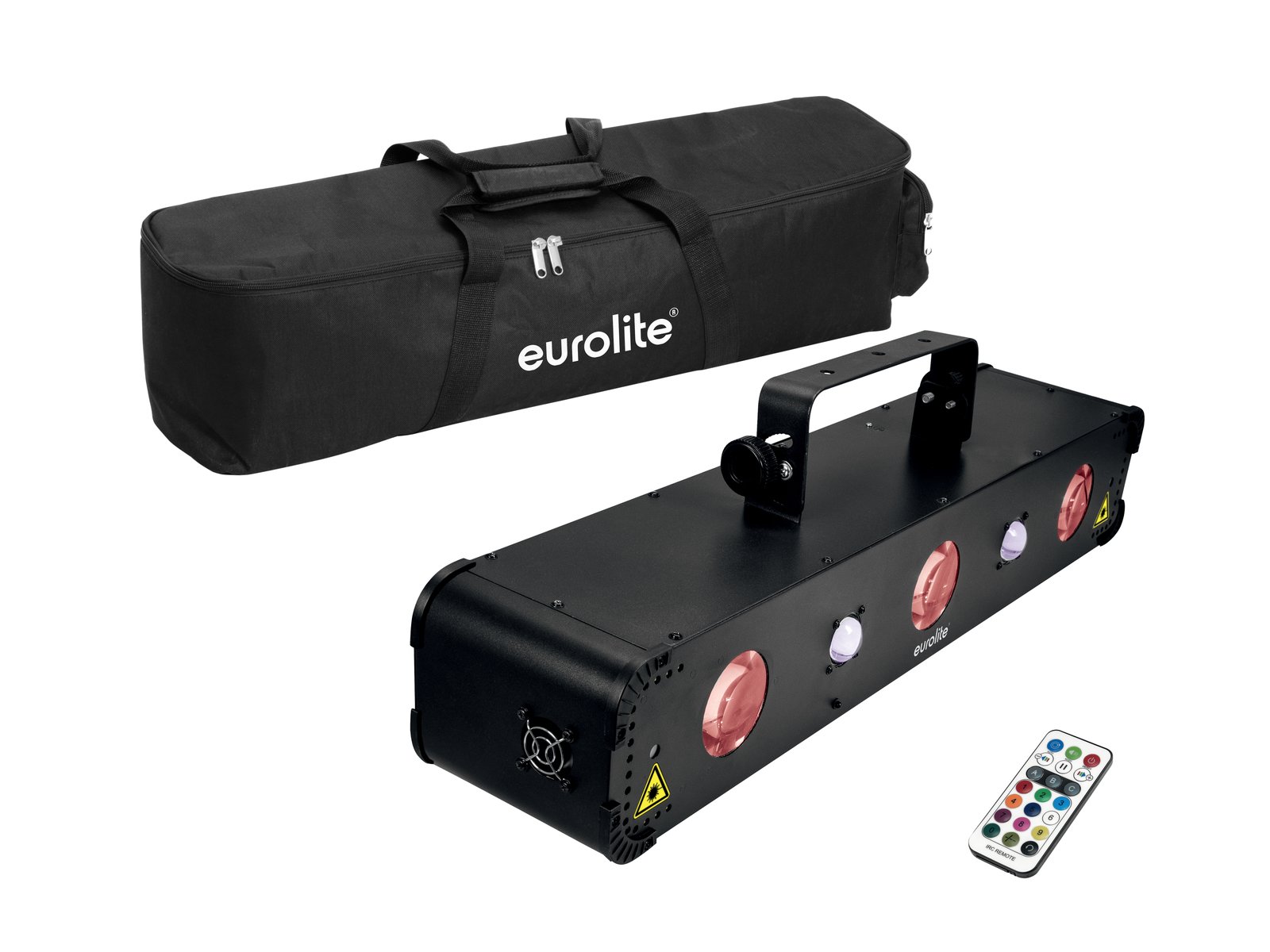

EUROLITE LED Multi FX Laser Bar
Lighting effect with RGBAW LED matrix, UV laser, RG (class 2M) and strobe
- The matrix effect with a total of 192 LEDs generates countless coloured points in motion in the room
- 4 laser diodes project thousands of red and green laser beams
- The matrix, black light, laser and strobe can be controlled individually
- 14 integrated Show programs
- Can be operated in 2; 5; 10 CH Mode
- The device is cooled by a cooling fan
- Standalone control; DMX; Sound to light via microphone; Master/slave function; IR remote control
- Preprogrammed in LED PC-Control 512; Light Captain; Light'J
- With mounting bracket
- Monochrome LED display with 4 digits and 7 segments
- For applications such as: Wedding/gala/events
- Network input and output for connecting power up to 8 units
laser
- Laser
- Laser class 2M
does not require additional protective measures or the appointment of a laser safety officer
reflector light
- 2 powerful 3 W ultraviolet (UV) LEDs
- UV effect
lighting effect
- 192 powerful 5 mm R/G/B/W/A LEDs
- Flower effect; multiple beam effect
strobes
- 36 powerful LEDs
- Strobe effect
Package contents
- 1 x device, 1 x user manual, 1 x power cable, 1 x remote control, 1 x battery
EUROLITE SB-11 Soft Bag
Practical black soft bag for the LED Multi FX laser bar
- Made of easy-care nylon
- With 1 compartment for accessories
- Interior with foam padding
covered with foam lining - 2 carrying straps
Package contents
| Weight: | 5.73 kg |
| EUROLITE LED Multi FX Laser Bar |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 35 W |
| IP rating: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Network input via IEC (M) connector, power cable mounting version with safety plug (supplied) |
| Output power: | 1 x IEC (F) connector mounting version |
| Fuse: | 5 x 20 mm, T 1 A replaceable fuse |
| Type of lamp: | LED lamp |
| DMX channels: | 2; 5; 10 |
| DMX input: | 1 x XLR (M) mounting version with 3 pins |
| DMX output: | 1 x XLR (F) mounting version with 3 pins |
| Cooling: | Cooling fan |
| Control: | Standalone; DMX; Sound to light via microphone; Master/slave function; IR remote control |
| Preprogrammed in: | LED PC-Control 512; Light Captain; Light'J |
| Case colour: | Black |
| Mounting system: | Mounting bracket |
| Display type: | Monochrome LED display with 4 digits and 7 segments |
| Dimensions: | Length: 76 cm Depth: 18 cm Height: 24.5 cm |
| Weight: | 5.25 kg |
| Noise rating: | Class 3 (clearly audible sounds) |
| Laser |
| Laser class: | 2M |
| Laser colour: | R/G |
| Laser mode: | Red (R) 100 mW 650 nm Green (G) 30 mW 532 nm |
| In reflector lights |
| LED: | 2 x 3 W high-power ultraviolet (UV) |
| Lighting effect |
| LED: | 192 x 5 mm R/G/B/W/A |
| Strobe |
| LED: | 36 |
| Remote control |
| Battery: | 1 x 3.0 V CR2025 lithium manganese button cell incorporated |
| EUROLITE SB-11 Soft Bag |
| Carrying strap: | 2 pcs |
| Dimensions: | Width: 81 cm Depth: 19 cm Height: 22 cm |
| Weight: | 480 g |
