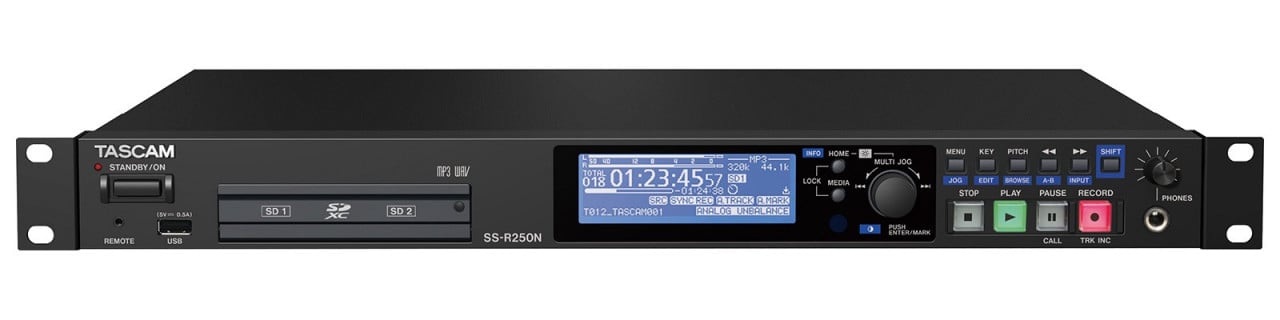

The Solid State Recorder Tascam SS-R250N allows audio recording on SD cards and USB media, with resolutions of up to 96kHz / 24bit. It includes features such as Auto Cue, Auto Ready, and ducking. The FTP client function enables automatic uploading of recorded files and downloading from an FTP server.
Control and Network Functions
- FTP client for uploading and downloading audio files.
- Event list for automated operations.
- Time setting via SNTP client.
- Control applications for iOS, Android, Windows, Mac.
- Serial and Parallel connections.
Recording Functions
- Recording and playback up to 96 kHz / 24 bits.
- Dual slot for SD card.
- Auto Mark, PRE REC, Auto Track functions.
- Built-in compressor and limiter.
- Microphone connector with phantom power.
Playback Functions
- Call, Ducking, All repeat, A-B repeat functions.
- Playback modes: Program, Random, Single.
- Pitch control and key control functions.
- EOM notification available.
Other Functions
- Sample rate conversion on inputs and outputs.
- Link playback for two recorders.
- Automatic file closing process.
- 1U rack size.
Technical Specifications:
- Analog Inputs and Outputs
- 1 headphone output 6.3 mm TRS
- 1 unbalanced stereo RCA coaxial input
- 1 unbalanced stereo RCA coaxial output
- 2 balanced Microphone/Line inputs XLR 3-Pin
- 2 balanced Line outputs XLR 3-Pin
- Digital Inputs and Outputs
- 1 XLR 3-Pin AES3 input
- 1 RCA coaxial S/PDIF input
- 1 XLR 3-Pin AES3 output
- 1 RCA coaxial S/PDIF output
- USB (Non-Host): 1 USB-A connector (USB 2.0)
- Network Inputs and Outputs: 1 RJ45 Ethernet connector (100BASE-TX)
- Other Inputs and Outputs
- 1 3.5 mm TRS remote control input
- 1 DB-25 Parallel/Control connector
- 1 DE-9/DB-9 RS-232 connector
- 1 2.5 mm TRS remote control connector
- Performance
- Frequency response: from 20 Hz to 20 kHz ±0.5 dB (JEITA)
- Maximum input level
- Analog inputs: +20 dBu
- Control inputs: +5.5 V
- Line inputs: +6 dBV
- Maximum output level
- Analog outputs: +20 dBu. +6 dBV
- Headphone output power: 45 mW per channel at 32 ohms (max. 0.1% THD)
- Analog input impedance: 22 Kiloohms
- XLR output impedance: 100 Ohms
- RCA output impedance: 200 Ohms
- Dynamic range: 95 dB (JEITA)
- SNR: ≥ 95 dB (JEITA)
- THD: ≤ 0.005% (JEITA)
- Crosstalk: 95 dB (JEITA)
- Digital Audio
- Audio file formats: MP3, WAV
- Sampling rates
- 44.1 / 48 / 96 kHz (WAV, Playback)
- 44.1 / 48 kHz (MP3, Playback)
- 44.1 / 48 / 96 kHz (WAV, Record)
- 44.1 / 48 kHz (MP3, Record)
- Resolutions: 16 / 24-Bit (WAV)
- Bit rates: 64 to 320 kb/s (MP3)
- Audio Storage and Playback
- Compatible media support: SD Card, CompactFlash Card
- Memory card slot: 1 x SDXC
- Supported memory capacity:
- SD cards: from 512 MB to 2 GB
- SDHC cards: from 4 GB to 32 GB
- SDXC cards: Minimum 128 GB
- USB Hard Disk Drive/USB Flash Drive: from 512 MB to 64 GB
- Power Supply
- Power requirements: AC Input
- AC input power: from 100 to 240 VAC, 50 / 60 Hz
