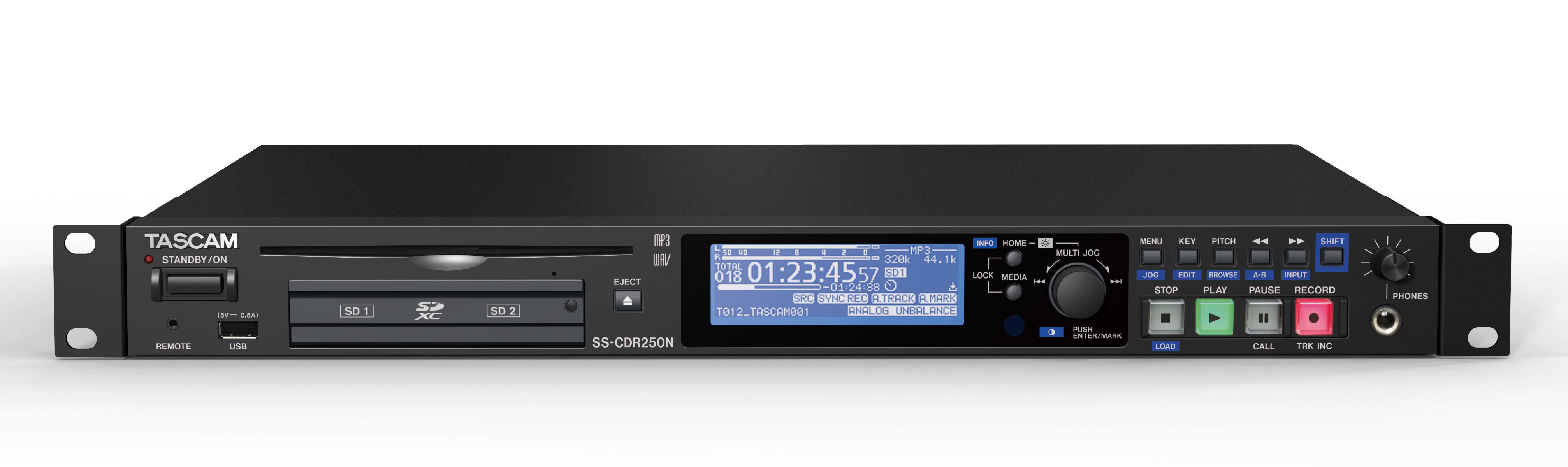

Tascam SS-CDR250N

Tascam SS-CDR250N, audio recorder, professional recorder on SD storage media, USB memory, compact disc CD-R, CD-RW:

• mono/stereo recording:
  • 2 x analog microphone/line inputs XLR (balanced) and RCA (unbalanced)
    • integrated preamplifier with gain control
    • switchable Phantom Power
  • digital inputs: AES / EBU and S/PDIF
• mono/stereo outputs:
  • 2 x analog channels XLR (balanced) and RCA (unbalanced)
  • digital outputs: AES/EBU, S/PDIF
• LAN connector enabling network functions such as streaming, control and monitoring:
  • FTP client - allows automatic upload/download of files to/from server
  • event list for recordings - playback, download and other time-based automatable functions
  • time setting via SNTP (Simple Network Time Protocol)
  • automatic upload function
  • controllable via iOS/Android apps - transport and control
  • serial and parallel port connections
• slot for optional Dante IF-DA2 card with 2/2 I/O
• remote operable via RC-SS15 (optional)
• storage media:
  • 2 SD card slots - allows simultaneous recording or relay function, supports SD / SDHC / SDXC cards / 128GB max
  • USB 2GB - 64GB
  • compact discs CD-R, CD-RW
• file formats:
  • CD-DA: 44.1kHz, 16bit
  • MP3: 44.1k/48k Hz, 64k/128k/192k/256k/320k bps
  • WAV: 44.1k/48k/96k Hz, 16/24 bit
• USB port can connect a Windows-compatible keyboard for easier file name editing
• playback of files according to defined playlists
• headphone output for monitoring, 6.3mm Jack
  • maximum level: 45mW+45mW(THD+N 0.1% or less, impedance 32Ω)
• 2 x unbalanced analog inputs, RCA:
  • input level: -10dBV (0.316Vrms)
  • maximum input level: +6dBV (2.0Vrms)
  • input impedance: 10kΩ
• 2 x balanced analog inputs, XLR (XLR-3-31, (1:GND, 2:HOT, 3:COLD))
  • Line:
    • input level: +4dBu (1.23Vrms) / +6dBu(1.55Vrms)
    • maximum input levels:
      • +15dBu(4.36Vrms, Ref.Level -9dBFS)
      • +18dBu(6.16Vrms, Ref.Level -14dBFS)
      • +20dBu(7.75Vrms, Ref.Level -16dBFS)
      • +22dBu(9.76Vrms, Ref.Level -18dBFS)
      • +24dBu(12.28Vrms, Ref.Level -20dBFS)
    • input impedance: 10kΩ
  • Microphone:
    • input level: +4dBu (1.23Vrms)
    • maximum input level: -70dBu (245uVrms)
    • input impedance: 2.2kΩ
• digital inputs:
  • AES/EBU:
    • connector: XLR-3-31
    • input impedance: 110Ω
    • format: AES3-2003/IEC60958-4(AES/EBU)
    • supported sample rates: 44.1k / 48k / 96k Hz
  • S/PDIF:
    • connector RCA jack
    • format: IEC60958-3
    • sample rates: 32k to 96k Hz
• control inputs/outputs:
  • on the front, remote control, 2.5mm TRS jack
  • RS-232C: D-sub 9 pin connector
  • parallel: D-sub 25 pin
• audio performance:
  • frequency range:
    • 20Hz to 20kHz, +0.5/-0.5dB(JEITA)
    • 20Hz to 40kHz, +0.5/-3dB (JEITA)
  • distortion: 0.002% or less (Ref:-16dB/BALANCED, JEITA)
  • signal-to-noise ratio: 106dB or more (JEITA)
  • dynamic range: 106dB or more (JEITA)
  • crosstalk: 100dB or more (JEITA)
  • equivalent input noise: -125dBu or less (40Ω 20kHz LPF)
• dimensions W x H x D: 482.6 × 45 × 300.5 mm, rack mountable 1 U
• weight: 3.2 kg
• package includes:
  • SS-CDR250N recorder
  • AC power cable
  • RC-10 remote control
  • rackmount kit
