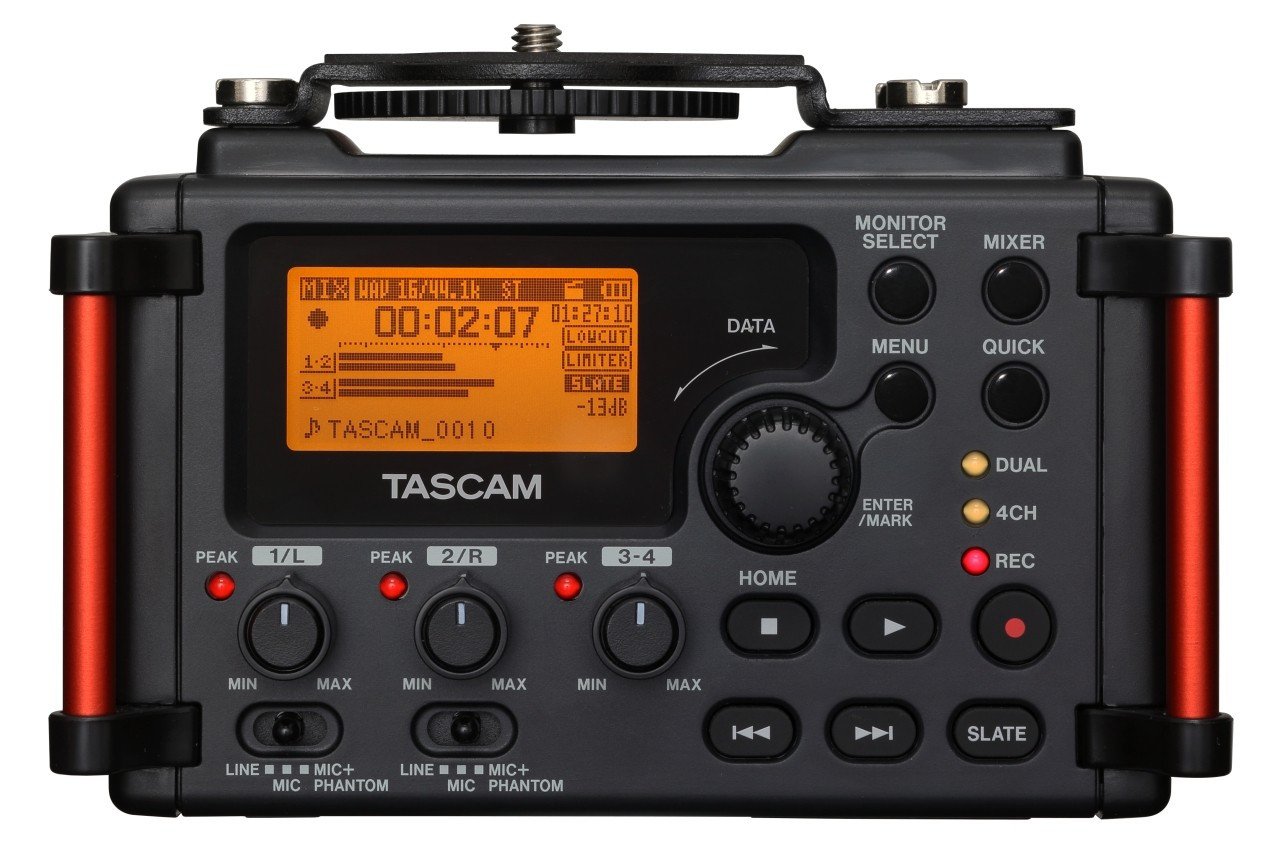

Tascam DR-60DMK2 - Portable recorder, represents the perfect solution for film production using DSLR equipment.
Essential features:
- The HDDA microphone preamps provide a gain of up to 64 dB. Up to four channels can be recorded simultaneously on the internal SD card, at a WAV file resolution of up to 96 kHz/24 bit.
- Two of the microphone inputs use XLR connectors with 48 V Phantom Power, while the other two use a 1/8 inch stereo connector for wireless and lavalier microphones.
Technical specifications:
Storage:
- SD (64MB - 2GB), SDHC (4GB - 32GB)
- Recording formats:
- WAV 44.1k/48k/96k Hz, 16/24-bit
- BWF 44.1k/48k/96k Hz, 16/24-bit
Number of channels: 4 (stereo x 2)
Analog audio input:
- Connectors: 1/L, 2/R
- Connection: XLR-3-31 (1:GND, 2:HOT, 3:COLD) / 1/4" (6.3mm) TRS standard jack
Set "MIC / MIC+PHANTOM"
- Input impedance: 2kOhm
- Phantom power: 48V ±4V (10mA/CH) / 24V ±4V (10mA/CH)
- Maximum input level: 0dBu
- Minimum input level: -72dBu
- Microphone input gain: TRIM MAX
- LOW: +11dB
- MID: +36dB
- HIGH: +52dB
- HIGH+PLUS: +64dB
Set "LINE"
- Input impedance: 10kOhm
- Standard input level: +4dBu
- Maximum input level: +24dBu
3-4 connector
- Connection: 1/8 inch (3.5mm) stereo mini jack
- Input impedance: 10kOhm
- Maximum input level: +10dBV
- Minimum input level: -50dBV
- Microphone input gain: TRIM MAX
- LOW: +3dB
- HIGH: +26dB
- HI + PLUS: +38dB
Camera connection:
- Connection: 1/8 inch (3.5mm) stereo mini jack
- Input impedance: 10kOhm
- Standard input level: -10dBV
- Maximum input level: +6dBV
Analog audio output:
CAMERA OUT
- Connection: 1/8" (3.5mm) stereo mini jack
- Output impedance: 200Ohm
- Standard output level -50dBV
- Maximum output level -30dBV
LINE OUT
- Connection: 1/8 inch (3.5mm) stereo mini jack
- Output impedance: 200Ohm
- Standard output level -10dBV
- Maximum output level +10dBV
HEADPHONES
- Connection: 1/8 inch (3.5mm) stereo mini jack
- Maximum output level: 50mW + 50mW
USB
- Connection: Mini-B
- Format: USB2.0 HIGH SPEED
Power supply:
- 4 x AA batteries (Alkaline / NI-MH)
- USB bus
- AC adapter (TASCAM PS-P520U, sold separately)
- External battery kit (TASCAM BP-6AA, sold separately)
- Power consumption: 5.4W
- Dimensions: 133 × 93.2 × 78 mm
- Weight: 510 g
- Operating temperature: 0˚C - 40˚C
- Included accessories: USB cable, user manual
- Frequency response 20Hz to 20kHz +0.5-2dB (LINE IN or MIC IN to LINE OUT, Fs 44.1k/48k Hz, JEITA)
- 20Hz to 40kHz +0.5-3dB(LINE IN or MIC IN to LINE OUT, Fs 96kHz, JEITA)
- Distortion 0.02% or less (LINE IN or MIC IN to LINE OUT Fs 44.1k/48k/96k Hz, JEITA)
- S/N ratio 92 dB or more (LINE IN or MIC IN to LINE OUT Fs 44.1k/48k/96k Hz, JEITA)
- Equivalent input noise -120dBu or less
