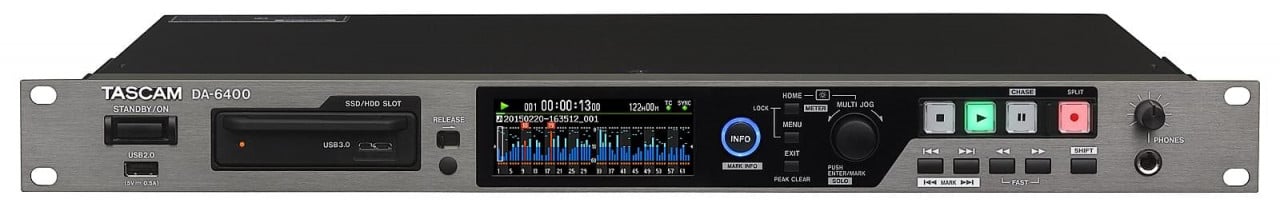

Tascam DA-6400

DA-6400 is a multitrack recorder with 64 channels, ideal for broadcast and live applications.

DA-6400 uses a proprietary operating system for quick startup and simple operation.

Recorded files are saved every 20 seconds during recording, minimising data loss caused by power interruptions.

Recording and playback are supported at up to 96 kHz/24 bit (32 channels).

Technical specifications:

• File storage medium: SSD
• File system: FAT32
• File format: BWF (.wav)
• Number of channels: 64 (1×Fs), 32 (2×Fs)
• Sampling frequencies: 44.1k / 48k / 88.2k / 96k Hz
• Audio resolution: 16 / 24 bit
• Clock reference: INTERNAL, WORD IN, VIDEO IN
• Timecode frame: 23.976 / 24 / 25 / 29.97DF / 29.97NDF / 30DF / 30NDF

TIME CODE INPUT

• Connection: BNC
• Signal amplitude: 0.5V to 5Vp-p
• Input impedance: 10kΩ
• Format: SMPTE 12M-1999

TIME CODE OUTPUT

• Connection: BNC
• Signal amplitude: 2Vp-p
• Input impedance: 600Ω
• Format: SMPTE 12M-1999

WORD/VIDEO INPUT

• Connection: BNC
• Signal amplitude (WORD): 0.5V to 5Vp-p TTL equivalent
• Signal amplitude (VIDEO): 1Vp-p
• Input impedance: 75Ω ±10%
• Input frequency (WORD): 48kHz
• Input signal (VIDEO): 23.976 / 24 / 25 / 29.97 / 30 Frame (NTSC/PAL Black burst, HDTV Tri-Level)

WORD/VIDEO THRU/OUT

• Connection: BNC
• Output voltage amplitude: 5V TTL equivalent
• Output frequency (WORD): 48kHz

ETHERNET

• Connection: RJ-45
• Protocol: 100BASE-TX, 1000BASE-T

RS-422: Connection: D-sub 9 pin (female, inch-standard)

PARALLEL: Connection: D-sub 15 pin (female, inch-standard)

USB

• Connection: USB2.0 A
• Protocol: USB 2.0 HIGH SPEED (480Mbps)

HEADPHONES:

• Connection: 1/4" (6.3mm) Stereo Jack
• Maximum output level: 45mW + 45mW

• Power supply: AC 100 - 240V, 50/60Hz
• Power consumption: 21W
• Dimensions: 482.6 × 44.7 × 304.8 mm
• Weight: 3.9 kg

Included accessories:

• SSD TASCAM 2.5 inch serial ATA 250GB
• SSD enclosure
• Power cable (DA-6400)
• Power cable × 2 (DA-6400dp)
• USB cable
• Rack mounting screw kit
• Security screw kit
• User manual
