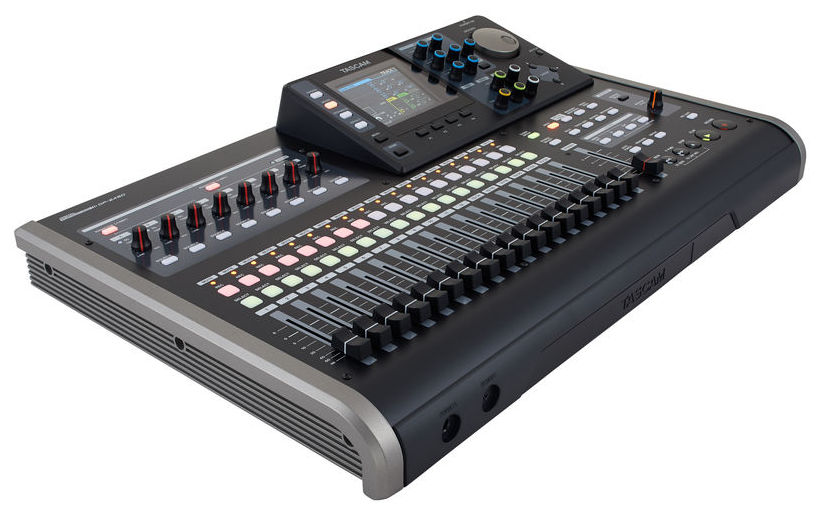

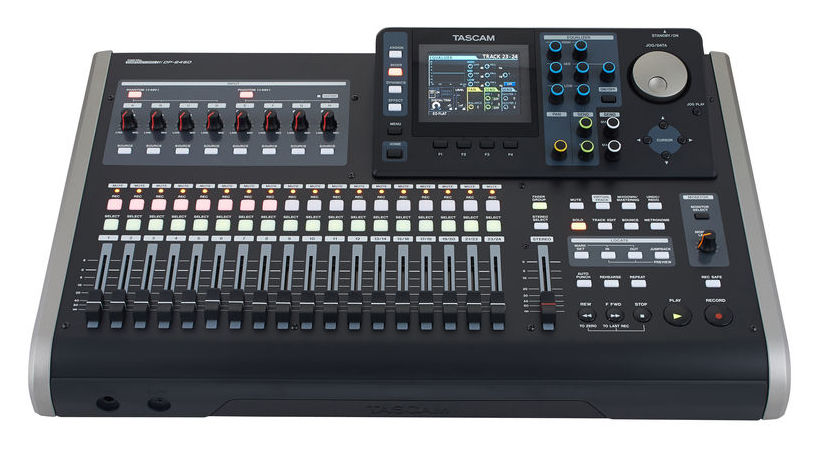

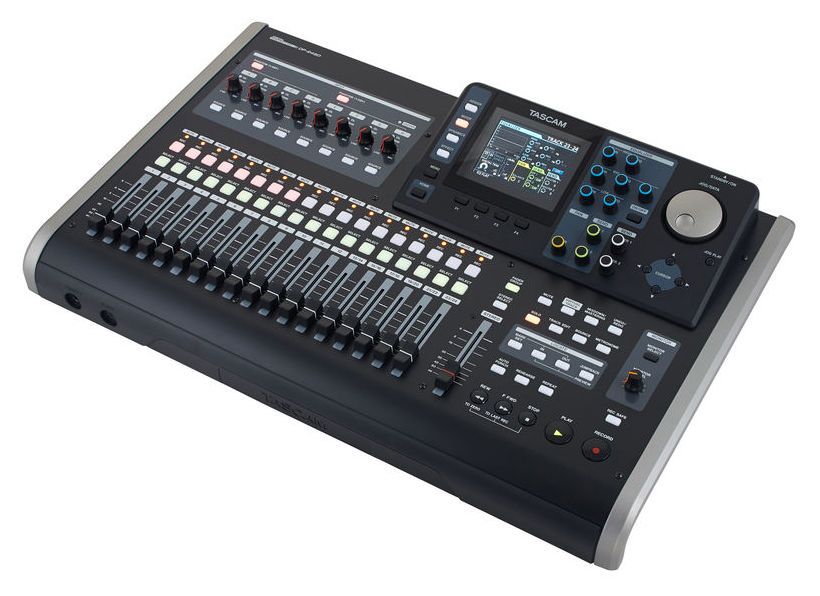

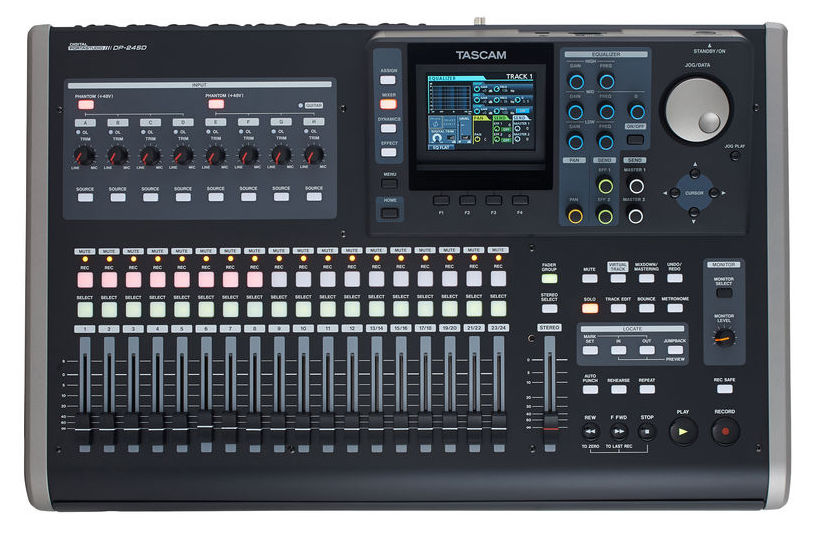

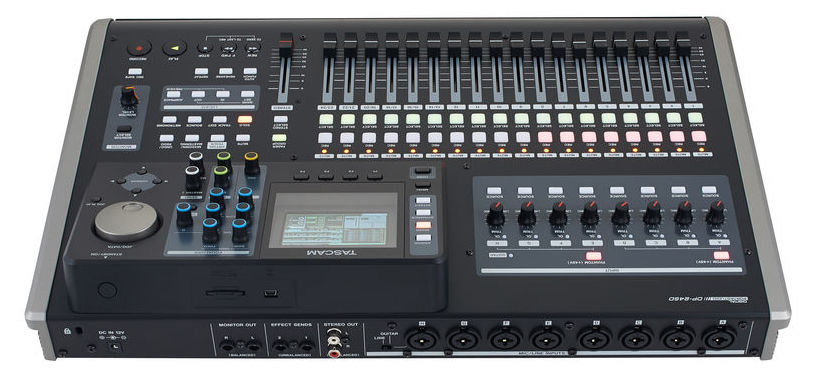

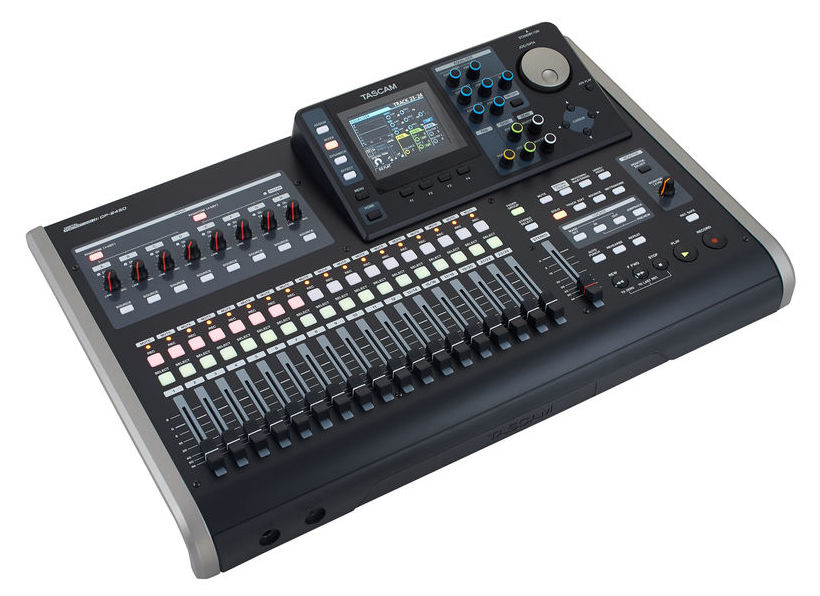

Tascam DP-24SD - portable digital recorder with 24 channels on SD Card. Up to 8 tracks can be recorded simultaneously via balanced XLR or TRS inputs, while the outputs are available on unbalanced RCA or balanced TRS out. The microphone inputs feature selectable Phantom Power (+48V) in groups of 4 channels. Processing such as compression, guitar amplifier modelling, delay, reverb, and many more can be applied during recording, as well as EQ or other FXs.

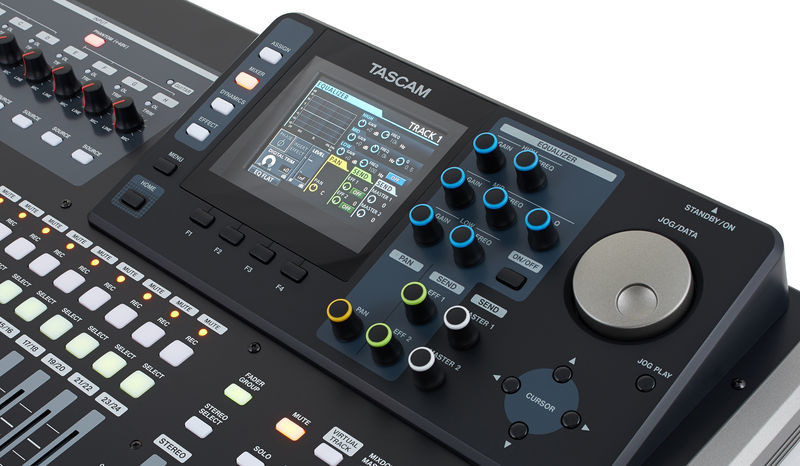

For instrument inputs, the mixer also includes a guitar amplifier simulator or chorus. As with other products in the DP line, during the mastering phase, effects such as multiband compressor and normalizer can be selected. A set of 12 encoders controls EQ, sends, and panning. The master section features a colour LCD screen from which parameters such as EQ, panning, and effect sends can be accessed directly.
All audio material can be recorded at a resolution of 24 bit at 48 kHz, on solid state or SD/SDHC Card. The DP-24SD also includes a CD writer for immediate transfer of recorded material. The MIDI inputs/outputs are ideal for clocking functions or control across multiple channels. It also features a USB connection compatible with Win or Mac OSX.
Features and technical specifications:
- Simultaneous recording of 8 channels, and playback of 24 channels
- Recording on SD card
- Resolution: 44.1 / 48 kHz
- 19 linear potentiometers (faders)
- 3-band EQ on each input and channel
- Dedicated potentiometers for EQ, panning, and effect send
- Colour display
- Auto Punch function
- 8 virtual tracks per channel for alternative takes
- Up to 99 location markers per song
- Dynamic effects on input (limiter, compressor, noise suppression, exciter)
- Multi effects for guitar
- Mixing effects (reverb, delay, stereo chorus) and mastering (EQ, multiband compressor, normalizer)
- Chromatic tuner
- Integrated metronome
- Data transfer via USB 2.0

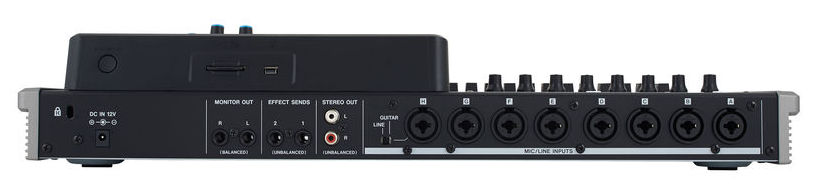

- 8 microphone/line inputs with XLR / TRS combo jack connectors
- Phantom Power supply for all inputs
- Input 8 can be switched to Hi-Z input for instruments
- 2X line outputs with RCA connectors (L/R stereo)
- 2x monitor outputs with 6.3 mm jack connectors (L/R stereo)
- 2x FX sends with 6.3 mm jack connectors
- Connection for optional footswitch RC-3F
- Connection: USB
- Compatibility: MAC / Windows
- Simultaneous inputs: 8
- Analog inputs: 8
- Analog outputs: 4
- Word Clock outputs: Yes
- Word Clock inputs: Yes
- Headphone outputs: 1
- Compressor: Yes
- Signal-to-noise ratio: 90 dB
- MIDI In/Out: Yes
- Microphone preamps: 8
- Instrument inputs: Yes
- Number of channels: 8
- USB input: Yes
- Internal Effects Processor: Yes
- Buss Powered: AC adapter
- Dimensions (W x H x D) approx. 514 x 104 x 340 mm
- Weight 5.8 kg
- Includes power supply and SD card
