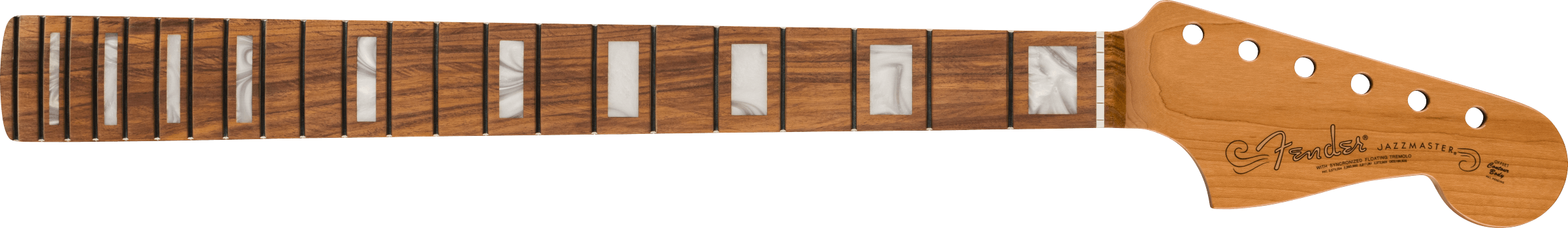

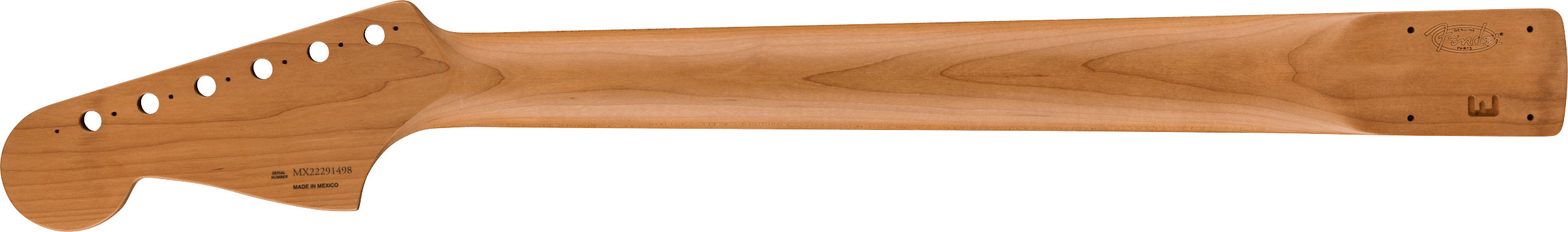

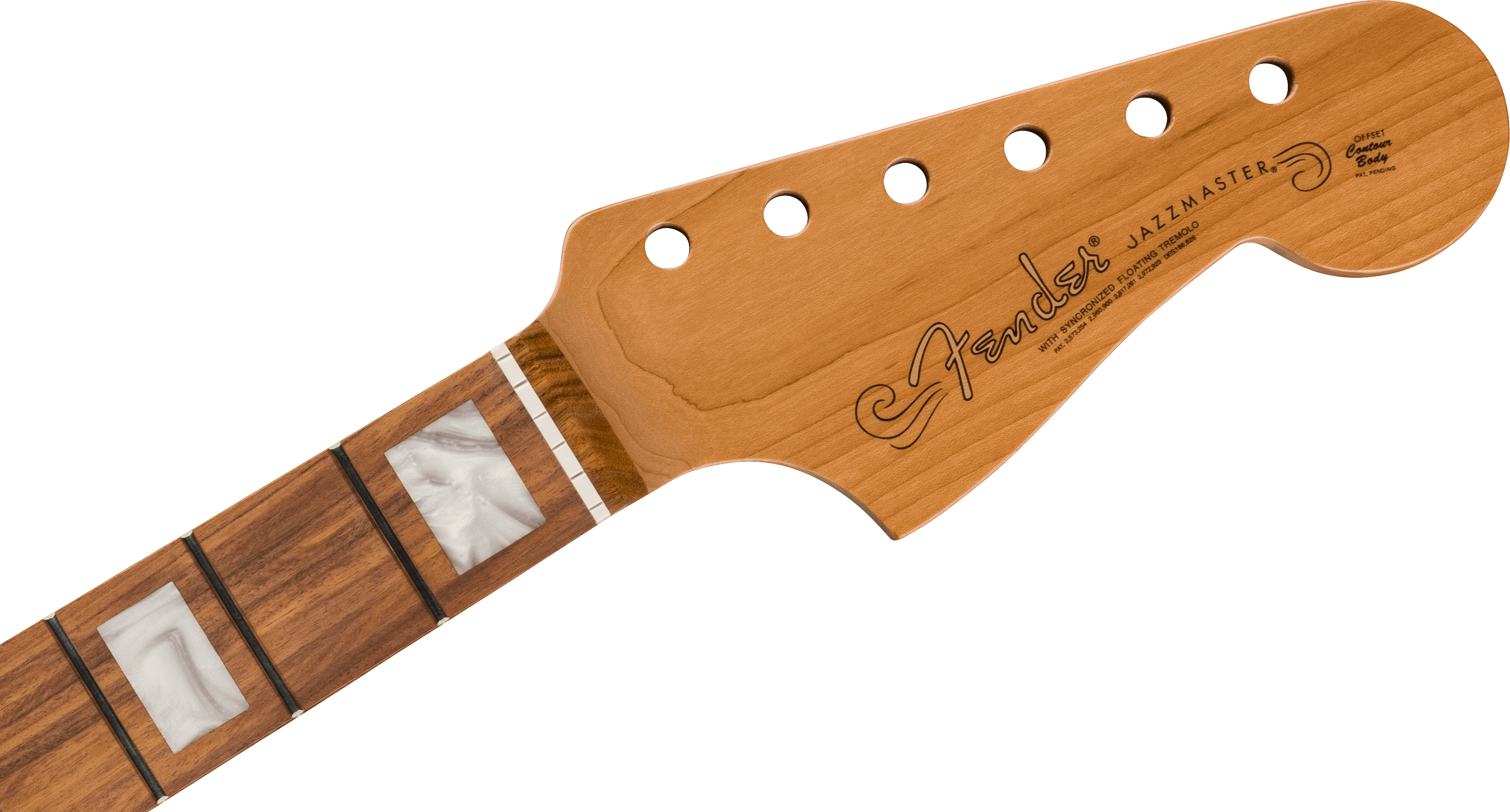

There's no denying the allure of a roasted maple neck. Resistant to humidity shifts and featuring a gorgeous, dark look, they have more sustain and add a unique note to the instrument's voice.This genuine Fender Jazzmaster neck is crafted at our Ensenada, Mexico manufacturing facility. Featuring striking pearloid block inlays, a Modern "C" neck profile and 9.5"-radius maple fingerboard with 22 medium jumbo frets for modern playing feel. The synthetic bone nut is pre-slotted with "pilot" grooves for accurate spacing when filing the final string slots.
This replacement neck is for a Fender or Squier® by Fender guitar.
Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you in the "Support" section of fender.com.
- Fingerboard: Pau Ferro
- Position Inlays: White Pearloid Block
- Neck Finish: Satin Urethane Finish on Back of Neck with Gloss Urethane Headstock Face
- Neck Shape: Modern "C"
- Side Dots: White
- Orientation: Right-Hand
- Scale Length: 25.5" (64.77 cm)
- Number of Frets: 22
- Fret Size: Medium Jumbo
- String Nut: Synthetic Bone
- Nut Width: 1.685" (42.8 mm)
- Fingerboard Radius: 9.5" (241 mm)
- Refinement Fingerboard Radius: Modern
- Neck Material: Roasted Maple
- Refinement Neck Material: Maple
- Refinement Neck Shape: C Shape
- Nut Material: Synthetic Bone
- Truss Rod: Vintage-Style Butt Adjust
- Truss Rod Nut: Vintage-Style Butt Adjust
- Neck Thickness: 1st Fret - .820" (20.82 mm), 12th Fret - .870" (22.09 mm)
- Neck Mounting: 4-Bolt
- Tuner Mounting Config: Vintage-style 2-screw
- Instrument Type: Jazzmaster®
- Peg Hole Diameter: .358” (9.09 mm)
- Headstock Thickness: .540” (13.71 mm)
