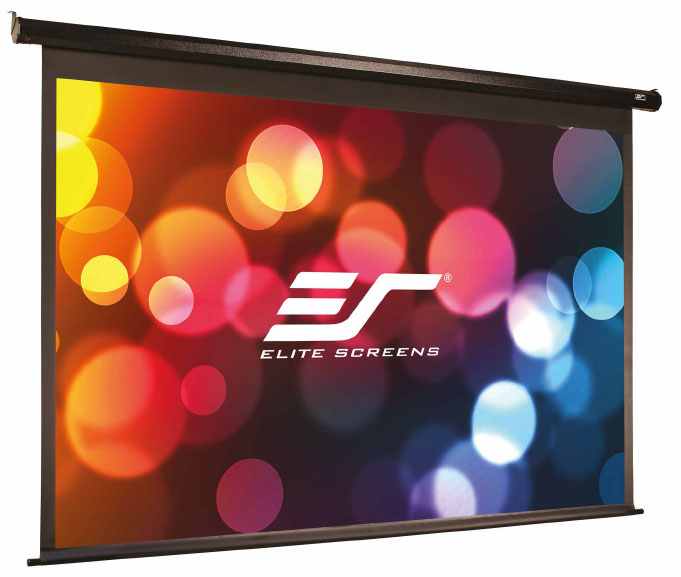

Elitescreens VMAX92XWH2 - Electric projection screen with a 16:9 format, usable projection area of 204 x 115 cm.

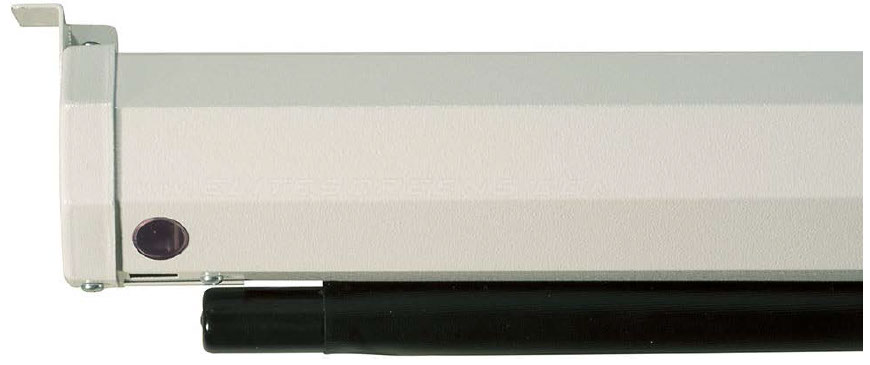

VMAX2 is equipped with various control options that work together with the low voltage controller (LVC). A 5-12 volt trigger port uses a standard RJ45 connection and synchronises the screen's lowering/raising operation with the power cycle of the projector. The 3-way module can be installed externally on the wall or uses the extended IR 'Eye' receiver for recessed ceiling installations.
Internal infrared (IR) and Radio Frequency (RF) receivers ensure complete control while maintaining the simplicity of this product.

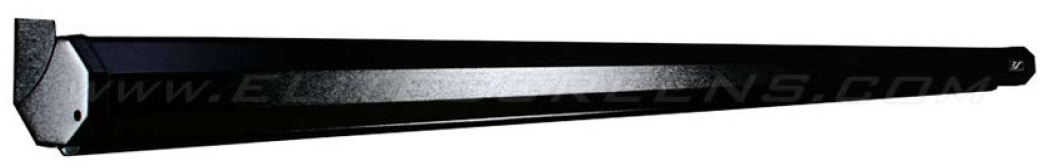

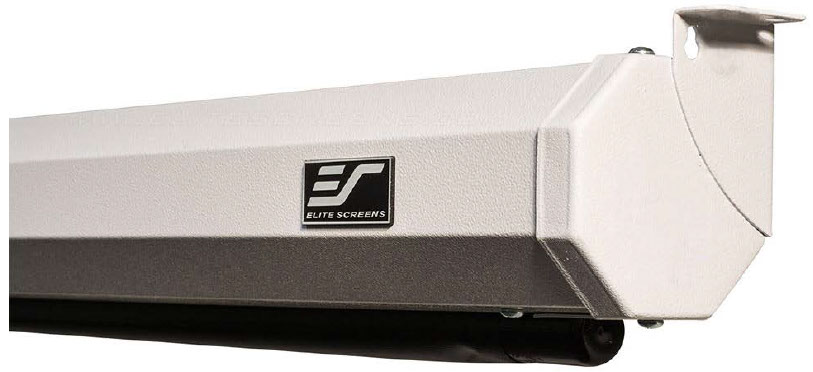

For increased durability and an improved look of the product, the VMAX2 series from Elite uses a housing made entirely of steel.
The VMAX2 series comes with a top frame of 2-30 inches, along with side and bottom frames to enhance your presentation and prevent overshooting the screen area.
There are two installation methods for the VMAX2 electric screen:
1. Wall mounting (directly mounted on the wall or with optional 6" L brackets)
2. Ceiling suspension or with the optional ceiling mounting kit
Features:
Screen material:
MaxWhite® material with a gain of 1.1, with a black back;
Coated with MaxWhite® FiberGlass material, gain 1.1
Wide viewing angle of 180°
4K Ultra HD and Active 3D Ready
4 standard black frames
Durable and easy-to-clean matte white material;
Design and installation:
Durable metal housing for wall/ceiling installation
Includes wood screws and drywall anchors
Leveling tool included
Delivered fully assembled with 3 connections, plug & play ready
Optional ceiling installation kit and 6" and 12" L brackets
Motorisation system:
Silent synchronised motor, energy-efficient, extending the product's longevity.
Control system:

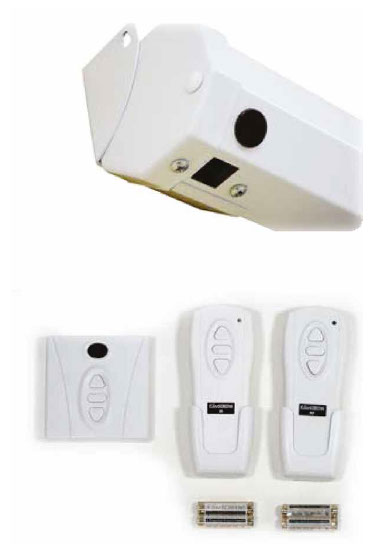

Standard infrared (IR) and Radio Frequency (RF) remotes
Detachable wall module with 3 ways
The Radio Frequency (RF) remote can operate from a distance of up to 30 m, without needing a direct line of sight to the device
The integrated 5-12 volt trigger allows the lowering/raising operation to synchronise with the projector's power cycle
Internal IR/RF receivers with low voltage
CAT5 cable with RJ-45 connector for easy extension of the 5-12 volt trigger/ IR 'eye' receiver/ 3-way wall module
Optional universal IR remote ZR800D, wireless 5-12 volt trigger, universal 5-12 volt trigger (especially for projectors not equipped with a trigger output) and wall module.
Quality and reliability:
Certified by AMX and CRESTRON
MaxWhite® FiberGlass: Fire retardant - in accordance with NFPA 701 standards
Compliant with ANSI/UL STD. 60950-1
Certified CAN/CSA STD. C22.2
GREENGUARD® and GREENGUARD® Gold UL | 2818 certified.
