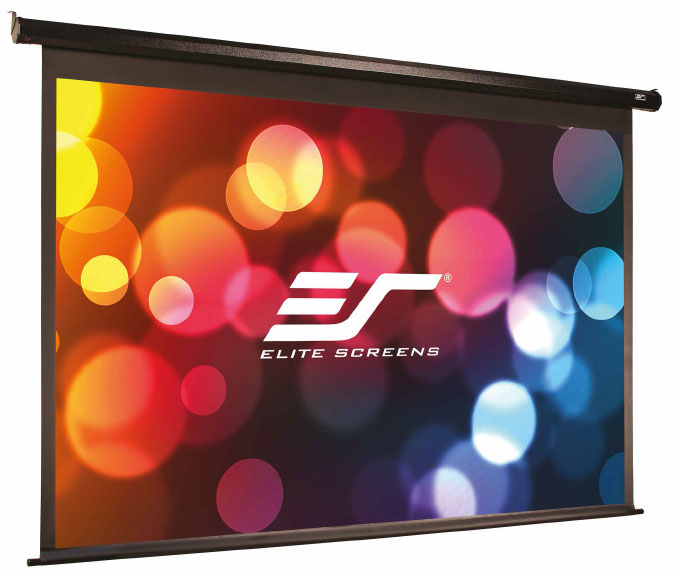

Elitescreens VMAX180XWV - Electric projection screen from the VMAX2 series by Elitescreens, designed for wall/ceiling mounting, with a 4:3 format and a visible size of 365.7 x 274.3 cm.
VMAX2 is equipped with various control options that work together with the low voltage controller (LVC). A 5-12 volt trigger port uses a standard RJ45 connection and synchronizes the screen's drop/rise operation with the power cycle of the projector. The 3-way module can be installed externally on the wall or uses the extended IR receiver “Eye” for recessed ceiling installations.
The VMAX2 series comes with a top border of 2-30 inches, along with side and bottom borders to enhance your presentation and avoid exceeding the screen surface.

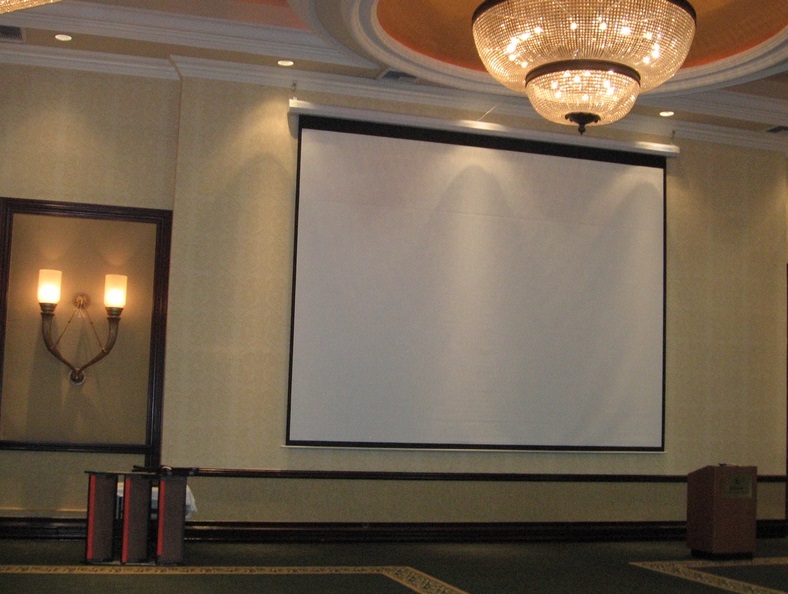

There are two installation methods for the VMAX2 electric screen:

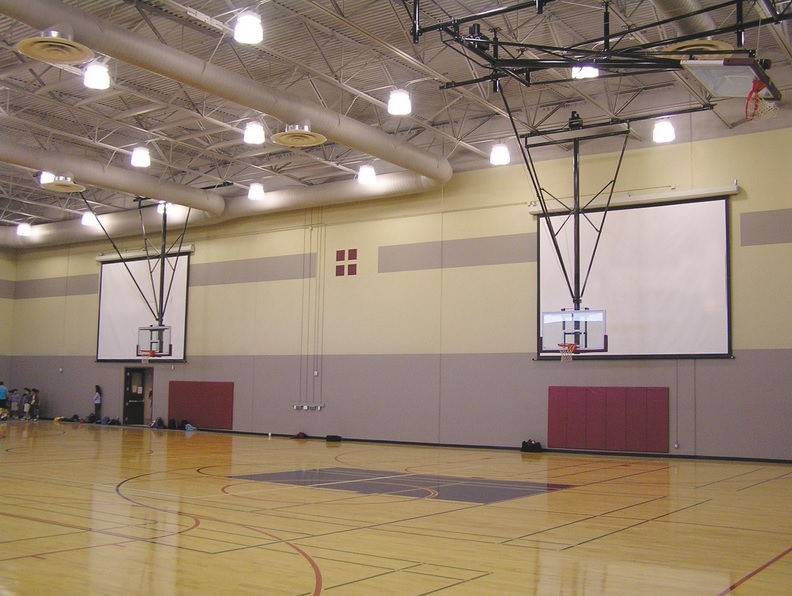

1. Wall mounting (mounted directly on the wall or with optional 6" L brackets)

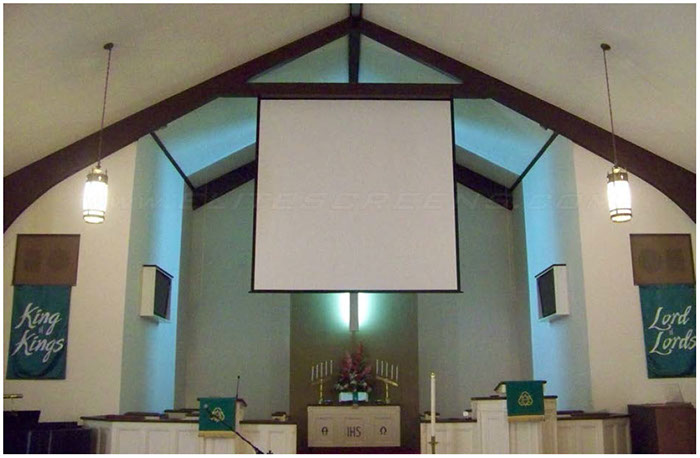

2. Suspended ceiling installation or with the optional ceiling mount kit
Features:
Screen material:
- MaxWhite® material with a gain of 1.1, with a black back;
- Coated with MaxWhite® FiberGlass, gain 1.1
- Wide viewing angle of 180°
- 4K Ultra HD and Active 3D Ready

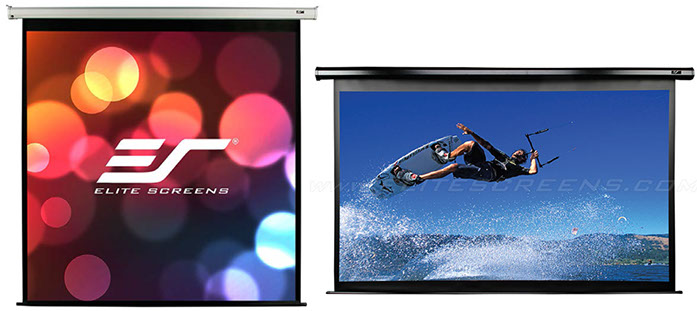

- 4 standard black borders
- Durable matte white material that is easy to clean;
Design and installation:
- Durable metal housing for wall/ceiling installation
- Includes wood screws and drywall anchors
- Included bolt
- Delivered fully assembled with 3 connections, plug & play ready
- Optional ceiling installation kit and 6" and 12" L brackets
Motorization system:
Quiet synchronized motor, energy efficient, extending the product's longevity.
Control system:

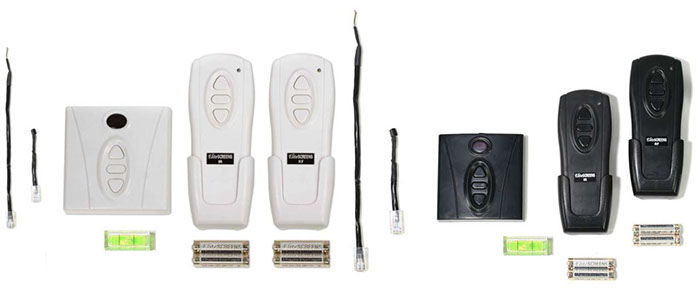

- Standard infrared (IR) and Radio Frequency (RF) remote controls
- Detachable wall module with 3 ways
- The Radio Frequency (RF) remote control can operate from a distance of up to 30 m, without a direct line of sight to the device
- The integrated 5-12 volt trigger allows the drop/rise operation to synchronize with the projector's power cycle
- Internal low voltage IR/RF receivers

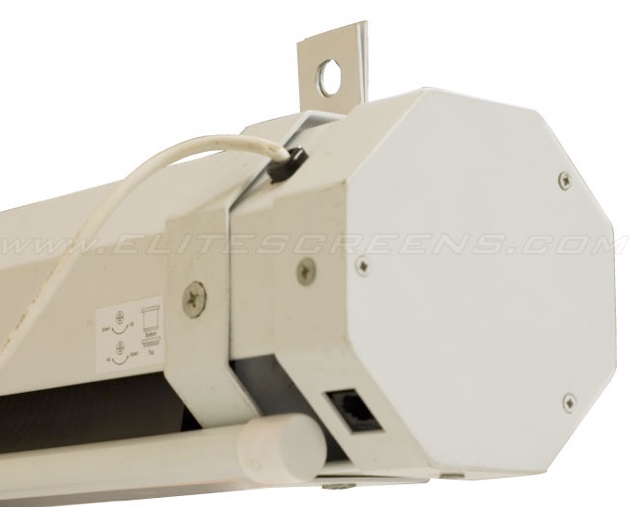

- CAT5 cable with RJ-45 connector for easy extension of the 5-12 volt trigger/IR “eye” receiver/3-way wall module
- Optional universal IR remote ZR800D, wireless 5-12 volt trigger, universal 5-12 volt trigger (especially for projectors not equipped with a trigger output) and wall module.
Quality and reliability:
- Certified by AMX and CRESTRON
- MaxWhite® FiberGlass: Fire retardant - in accordance with NFPA 701 standards
- Compliant with ANSI/UL STD. 60950-1
- Certified CAN/CSA STD. C22.2
- GREENGUARD® and GREENGUARD® Gold UL | 2818 certified.
The internal infrared (IR) and Radio Frequency (RF) receivers ensure total control while maintaining the simplicity of this product.

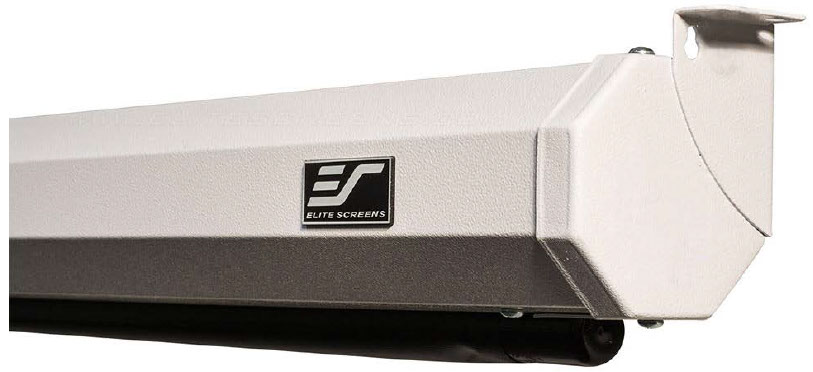

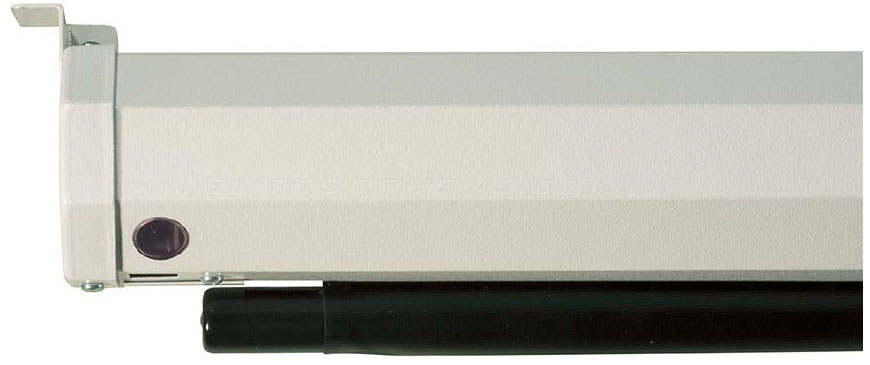

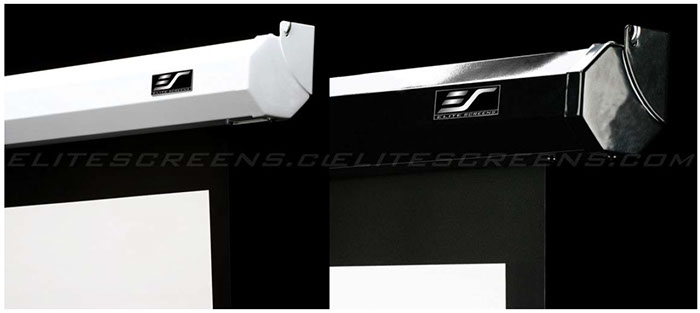

For increased durability and an improved look of the product, the VMAX2 series from Elite uses a housing made entirely of steel.
Technical specifications:
- Visible horizontal screen size: 365.7 cm
- Visible vertical screen size: 274.3 cm
- Physical length of the screen housing: 399.5 cm
- Remote control: yes
- Fixed frame screen: no
- Projection type: front
- Screen format: 4:3
- Screen mounting: wall/ceiling
- Black border: yes
- Electric: yes
