Elitescreens SKT120UHW-E20

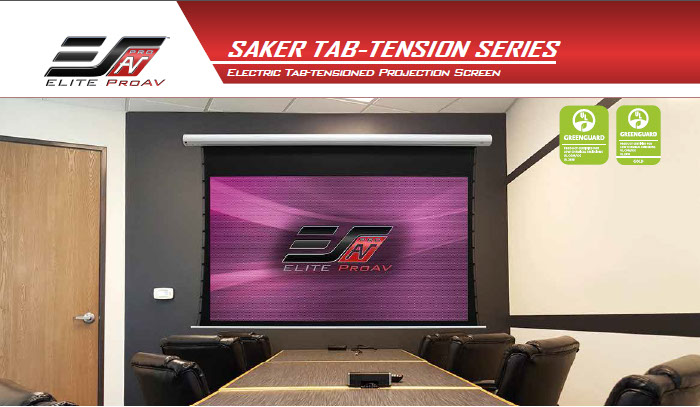

Elitescreens SKT120UHW-E20 - Electric projection screen for wall or ceiling mounting, with a usable projection area of 149.6 x 265.7 cm. The Saker series features an electric projection screen that incorporates all the virtues of quality, durability, and aesthetics. Standard functions include a wireless trigger of 5-12 volts, a package with two IR/RF remote controls, and a detachable manual switch.

It uses MaxWhite® Fiberglass (FG) material, which has a wide viewing angle to allow the audience to view images from anywhere in the room.

Features:

Screen material

• Wide viewing angle of 180°
• Active 3D, 4K Ultra HD, and HDR Ready
• Not compatible with Ultra/Short-throw projectors

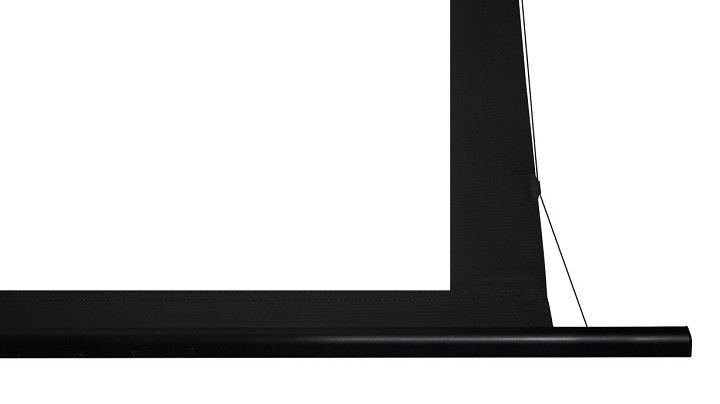

• The back is black and equipped with standard black frames

Design and installation

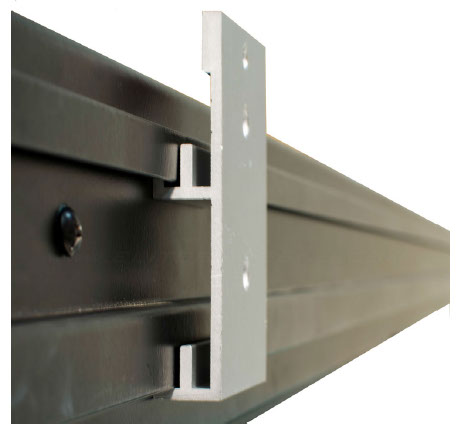

• Hidden and sturdy wall mounts allow horizontal sliding of the screen for precise centering

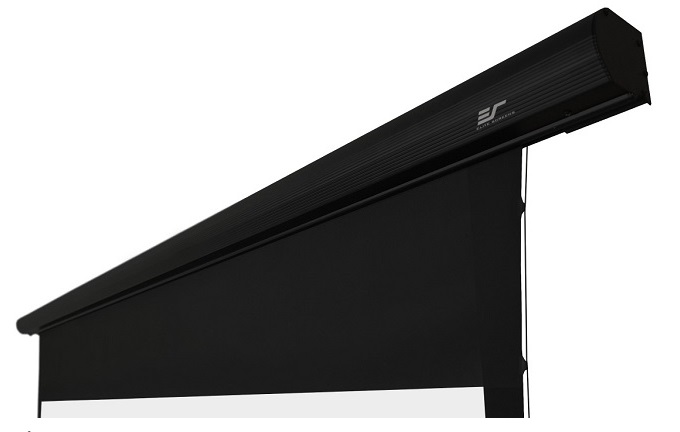

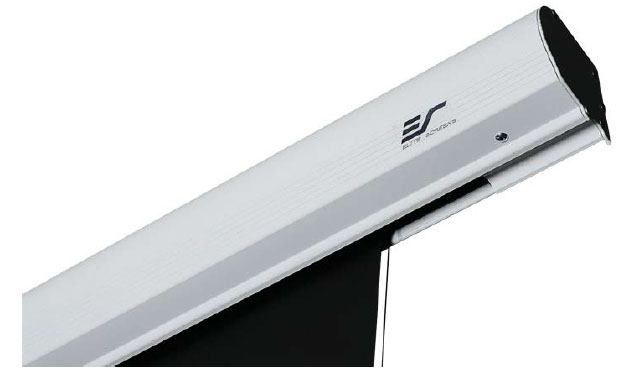

• White enamelled aluminium casing with curved profile and parallel grooves

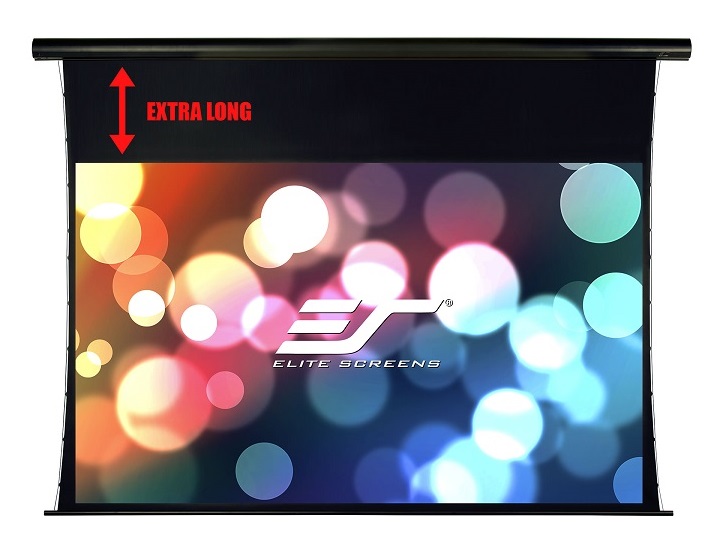

• The wider black top frame of the screen is suitable for installations on high ceilings
• Plug & Play, does not require complicated wiring

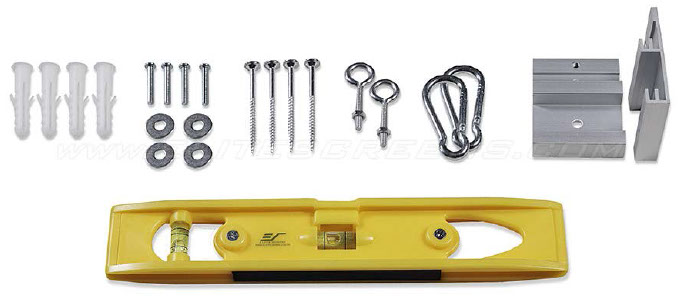

• Wall or ceiling mounting kit is included

Control system

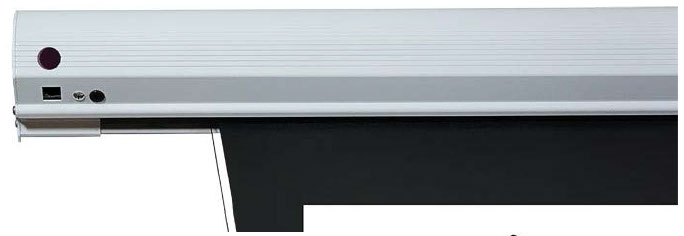

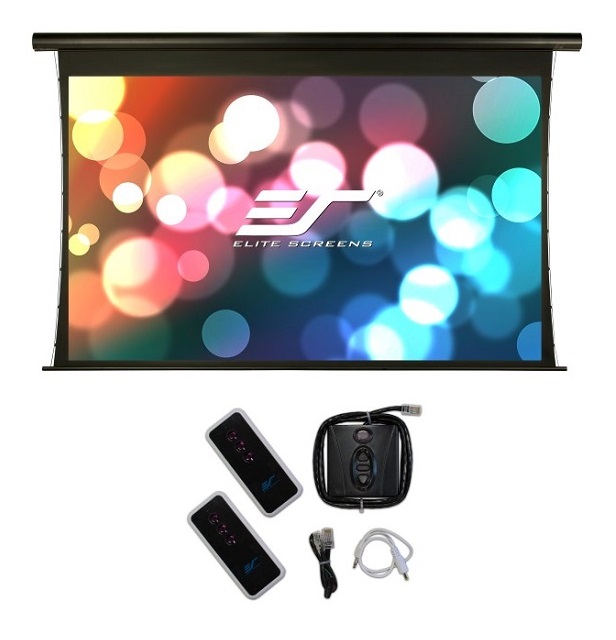

• Internal Radio Frequency/Infrared receivers with included IR, RF remote controls
• Detachable wall module with 3-way operation for manual UP/STOP/DOWN
• Wireless trigger of 5-12 volts included
• RJ45 input allows integration of a third control system

Quality and reliability

• Synchronized motor with silent operation and low power consumption
• Fire retardant: in accordance with NFPA 70 standards
• Certified for indoor air quality GREENGUARD® and GREENGUARD® Gold (UL 2818)

Material specifications:

MaxWhite® Fiberglass (FG) material is lined with fiberglass for improved firmness, ensuring the smoothest non-tensioned screen surface with universal applications. This material provides a wide viewing angle and uniform light distribution, with extremely precise definition, colour reproduction, and black/white contrast. The back of the screen is black to eliminate light penetration. The screen surface is mould-resistant and extremely easy to clean with mild soap and water.

• Thickness: 0.36 mm (0.014")
• Weight: 350 g/m²
• Maximum height: 3.2 M (10 ft)
• Gain on axis: 1.0
• Half gain angle: Does not reach half gain

Technical specifications:

• Visible horizontal screen size: 265.7 cm
• Visible vertical screen size: 149.5 cm
• Physical length of the screen casing: 316.9 cm
• Gain: 1.1
• Viewing angle: 180° (90° ± LR)
• Not compatible with Ultra/Short-throw projectors
• Mould resistant
• Active 3D, 4K Ultra HD and HDR ready
• Remote control: yes
• Fixed frame screen: no
• Projection type: front
• Screen format: 16:9
• Screen mounting: wall/ceiling
• Black border: yes
• Electric: yes
