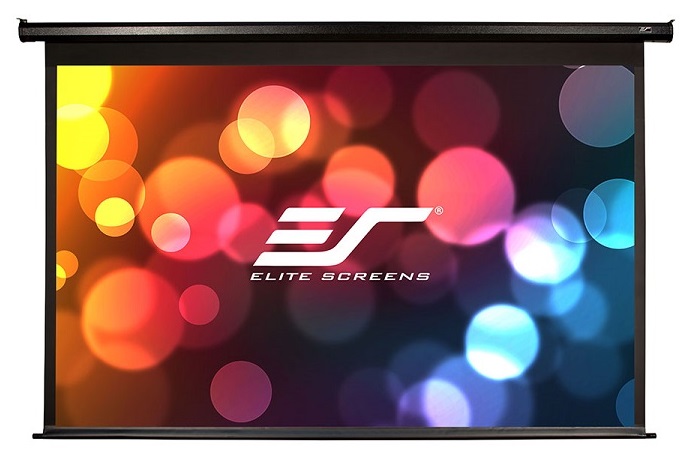

Elitescreens ELECTRIC125H - Electric projection screen with wall or ceiling mount, with a projection surface of 155.7 x 276.9 cm, 16:9 format.
The Spectrum series is the best quality/price option for an electric/motorised projection screen.
The Spectrum series from Elite features a versatile electric motorised projection screen, perfectly suited for commercial or residential applications with wall or ceiling mounting. Its MaxWhite® material with a gain of 1.1 displays a bright image regardless of the viewing angle. The infrared and Ethernet control package is included.
MaxWhite 1.1 with a viewing angle of 180°:
The MaxWhite® screen material is the most versatile screen surface for front projections. This material provides the widest possible viewing angle with perfect uniformity of distribution, ensuring precise definition, as well as accurate colour reproduction and black and white contrast. It is recommended for rooms with controlled lighting. It can be used with standard, 1080P/4K projectors.
Screen material
The MaxWhite® material is durable and easy to clean with a wide viewing angle of 180° with a gain of 1.1, 3D active, 4K Ultra HD and HDR Ready. Not compatible with Ultra/Short-throw projectors. It comes equipped with standard black frames.
Installation and Design
Sturdy housing for wall or ceiling installation. Includes wood screws and drywall anchors. Leveling tool included. Delivered fully assembled with three power connections ready for plug & play. Optional ceiling mount kit and 6" and 12" L brackets - sold separately.
Control system
Infrared (IR) remote control
3-way wall switch UP/STOP/DOWN
Integrated 5-12 volt trigger that allows the screen's lowering/raising operation to sync with the power cycle of the projector
Cable included
IR receiver with low internal voltage
RJ45 input allows for easy integration with a third control system
Optional RF remote control, wireless 5-12 volt trigger, universal 5-12 volt trigger (specifically for projectors not equipped with a trigger output) and a wall-mounted switch - sold separately.
Standard infrared (IR) and Radio Frequency (RF) receivers for the optional RF remote control provide complete control and maintain product simplicity.
For impressive durability and enhanced product design, the Spectrum series from Elite is equipped with a steel housing.
The Spectrum series is equipped with various control options that work together with the low voltage controller (LVC). The 5-12 Volt trigger port uses a standard RJ45 connection and synchronises the lowering and raising of the screen with the power cycle of the projector. The optional wall mode kit can be installed as a wall-mounted control or the extended IR receiver “EYE” can be used for recessed ceiling installations.
Quality and reliability
The synchronised motor allows for silent operation of the screen with extended operating longevity and low energy consumption (models from 84" - 128").
The tubular motor allows for rapid operation
AMX and CRESTRON certified
Flame retardant: in accordance with NFPA 701 standards; Compliant with ANSI/UL STD
Certified 60950-1 for CAN/CSA STD. C22.2
GREENGUARD® and GREENGUARD® Gold | UL 2818
The Spectrum series is equipped with a top border of 4, 6 or 8 inches to complement the side and bottom borders. This provides a professional effect perfectly framing the projected image.
The MaxWhite™ material of the Elite Screens is the most popular material for projection screens. It is easy to clean and durable, suitable for daily use. With a gain of 1.1 and a viewing angle of 180º, it is suitable for most applications, from commercial to home theatre presentations.
The back of the screen is black (only MaxWhite™) to eliminate light penetration, and the textured projection surface helps eliminate Moiré patterns or “hot spotting”.
