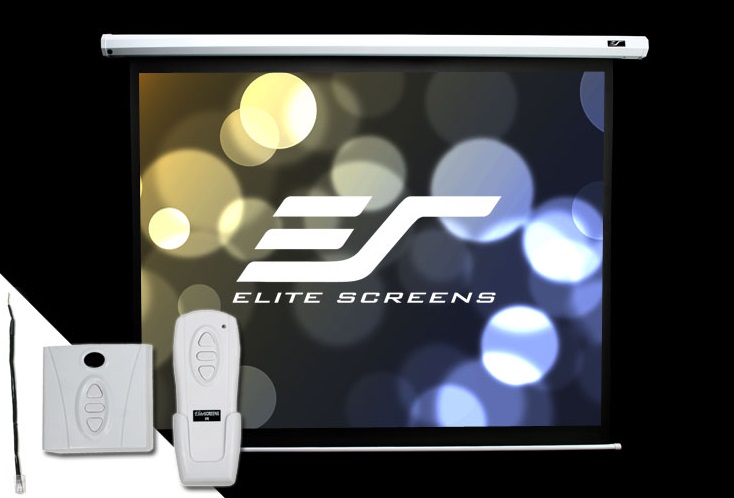

Elitescreens ELECTRIC120V - Electric projection screen with wall or ceiling mounting, featuring a useful projection area of 240 x 180 cm, 4:3 format. The Spectrum series is the best quality/price option for an electric/motorised projection screen.
The Spectrum series from Elite features a versatile motorised electric projection screen, perfectly suited for commercial or residential applications with wall or ceiling mounting. Its MaxWhite® material with a gain of 1.1 displays a bright image regardless of the viewing angle. The infrared and Ethernet control package is included.
MaxWhite 1.1 with a viewing angle of 180°:
The MaxWhite® screen material is the most versatile surface for front projections. This material provides the widest possible viewing angle with perfect uniformity of distribution, ensuring precise definition, as well as accurate colour reproduction and black and white contrast. It is recommended for rooms with controlled lighting. It can be used with standard, 1080P/4K projectors.
Screen Material
The MaxWhite® material is durable and easy to clean with a wide viewing angle of 180° with a gain of 1.1, 3D active, 4K Ultra HD and HDR Ready. Not compatible with Ultra/Short-throw projectors. It comes equipped with standard black frames.
Installation and Design
Durable casing for wall or ceiling installation
Includes wood screws and drywall anchors
Included pull switch
Delivered fully assembled with three power connections ready for plug & play
Optional ceiling mount kit and L brackets of 6" and 12" - sold separately.
Control System
Infrared (IR) remote control, 3-way wall switch UP/STOP/DOWN. Integrated 5-12 volt trigger allows the screen's lowering/rising operation to synchronise with the power cycle of the projector. Cable included. Low voltage internal IR receiver. The RJ45 input allows for easy integration with a third-party control system. Optional RF remote control, wireless 5-12 volt trigger, universal 5-12 volt trigger (especially for projectors not equipped with a trigger output) and a wall-mounted switch - sold separately.
Quality and Reliability
The synchronised motor allows for silent operation of the screen with extended longevity and low energy consumption (models from 84" - 128")
The tubular motor allows for quick operation and provides speed (models from 142" and above)
AMX and CRESTRON certified AcousticPro UHD
Fire retardant: in accordance with NFPA 701 standards
Compliant with ANSI/UL STD
Certified 60950-1 for CAN/CSA STD. C22.2
GREENGUARD® and GREENGUARD® Gold | UL 2818
The Spectrum series is equipped with a top border of 4, 6 or 8 inches to complement the side and bottom borders. This provides a professional effect by perfectly framing the projected image.
Standard infrared (IR) and Radio Frequency (RF) receivers for optional RF remote control provide complete control and maintain the simplicity of the product.
For impressive durability and an enhanced product design, the Spectrum series from Elite is equipped with a steel casing.

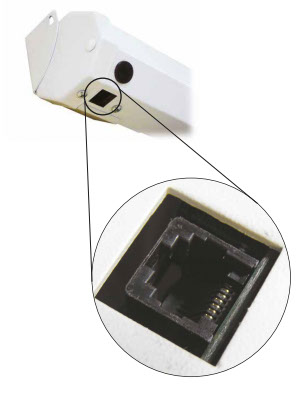

The Spectrum series comes with various control options that work together with the low voltage controller (LVC). The 5-12 Volt trigger port uses a standard RJ45 connection and synchronises the lowering and raising of the screen with the power cycle of the projector. The optional wall mode kit can be installed as a wall-mounted control or the extended IR receiver “EYE” can be used for recessed ceiling installations.
The MaxWhite™ material of the Elite Screens is the most popular material for projection screens. It is easy to clean and durable, suitable for daily use. With a gain of 1.1 and a viewing angle of 180º, it is suitable for most applications, from commercial to home theatre presentations.
The back of the screen is black (only MaxWhite™) to eliminate light penetration, and the textured projection surface helps to eliminate Moiré patterns or “hot spotting”.
