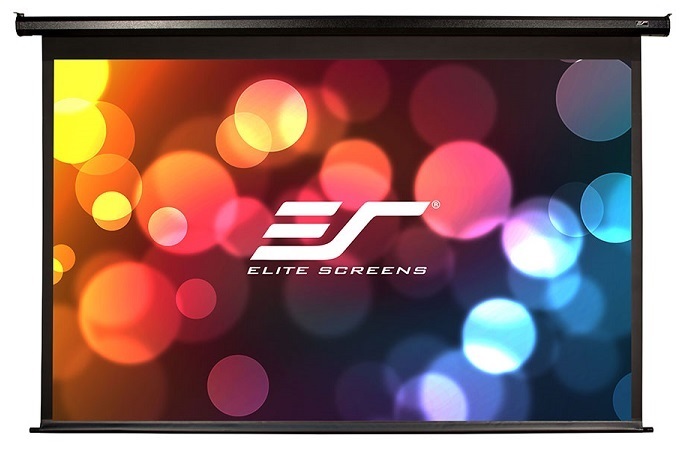

Elitescreens ELECTRIC100V - electric projection screen with wall or ceiling mounting, featuring a usable projection area of 203 x 152cm, 4:3 format. The Spectrum series is the best quality/price option for an electric/motorised projection screen.
The Spectrum series from Elite presents a versatile motorised electric projection screen, perfectly suited for commercial or residential applications with wall or ceiling mounting. Its MaxWhite® material with a gain of 1.1 displays a bright image regardless of the viewing angle. An infrared and Ethernet control package is included.
MaxWhite 1.1 with a viewing angle of 180°
The MaxWhite® screen material is the most versatile screen surface for front projections. This material provides the widest possible viewing angle with perfect uniformity of distribution, ensuring precise definition, as well as accurate colour reproduction and black and white contrast. It is recommended for rooms with controlled lighting. It can be used with standard, 1080P/4K projectors.
Screen Material
The MaxWhite® material is durable and easy to clean with a wide viewing angle of 180° and a gain of 1.1, 3D active, 4K Ultra HD and HDR Ready. Not compatible with Ultra/Short-throw projectors. It comes equipped with standard black frames.
Installation and Design
Durable casing for wall or ceiling installation
Includes wood screws and drywall anchors
Boloboc included
Delivered fully assembled with three power connections ready for plug & play
Optional ceiling mount kit and L brackets of 6" and 12" - sold separately.
Control System

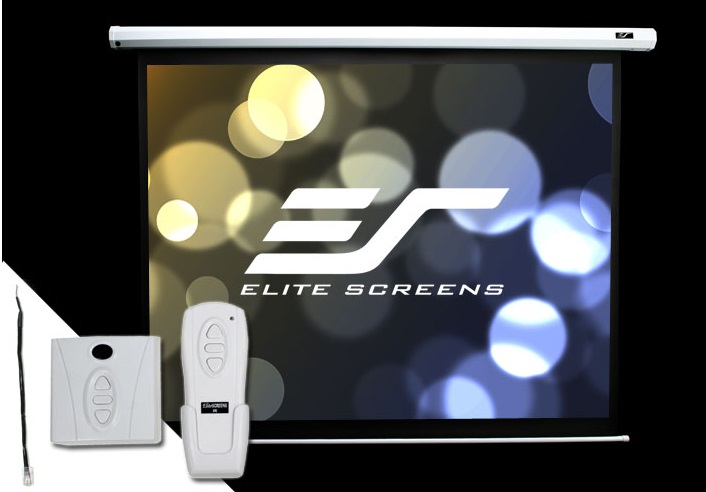

Infrared (IR) remote control, 3-way wall switch UP/STOP/DOWN. Integrated 5-12 volt trigger allows the screen's lowering/raising operation to synchronise with the power cycle of the projector. Cable included. Low voltage internal IR receiver. The RJ45 input allows for easy integration with a third control system. Optional RF remote control, wireless 5-12 volt trigger, universal 5-12 volt trigger (especially for projectors not equipped with a trigger output) and a wall-mounted switch - sold separately.
Quality and Reliability
The synchronised motor allows for silent operation of the screen with extended operating longevity and low power consumption (models from 84" - 128")
The tubular motor allows for rapid operation and provides speed (models from 142" and above)
AMX and CRESTRON certified AcousticPro UHD
Fire retardant: in accordance with NFPA 701 standards
Compliant with ANSI/UL STD
Certified 60950-1 for CAN/CSA STD. C22.2
GREENGUARD® and GREENGUARD® Gold | UL 2818
The Spectrum series is equipped with a top frame of 4, 6 or 8 inches to complement the side and bottom frames. This provides a professional effect, perfectly framing the projected image.
Standard infrared (IR) and Radio Frequency (RF) receivers for optional RF remote control provide complete control and maintain product simplicity.

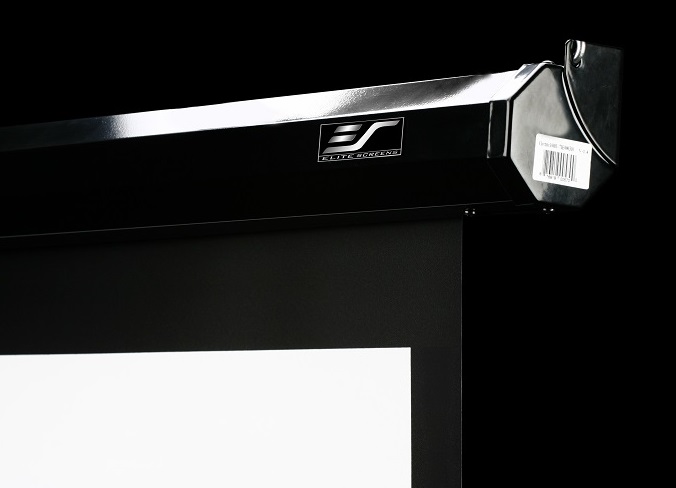

For impressive durability and enhanced product design, the Spectrum series from Elite is equipped with a steel casing.

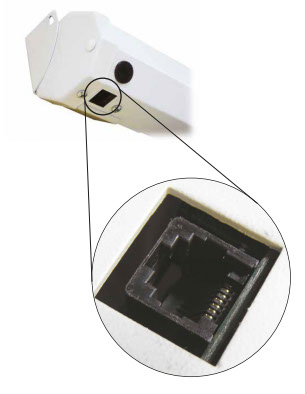

The Spectrum series is equipped with various control options that work together with the low voltage controller (LVC). The 5-12 Volt trigger port uses a standard RJ45 connection and synchronises the lowering and raising of the screen with the power cycle of the projector. The optional wall mode kit can be installed as a wall-mounted control or the extended IR receiver “EYE” can be used for recessed ceiling installations.
The MaxWhite™ material of the Elite Screens is the most popular material for projection screens. It is easy to clean and durable, suitable for daily use. With a gain of 1.1 and a viewing angle of 180º, it is suitable for most applications, from commercial to home theatre presentations.
The back of the screen is black (only MaxWhite™) to eliminate light penetration, and the textured projection surface helps eliminate Moiré patterns or “hot spotting”.
