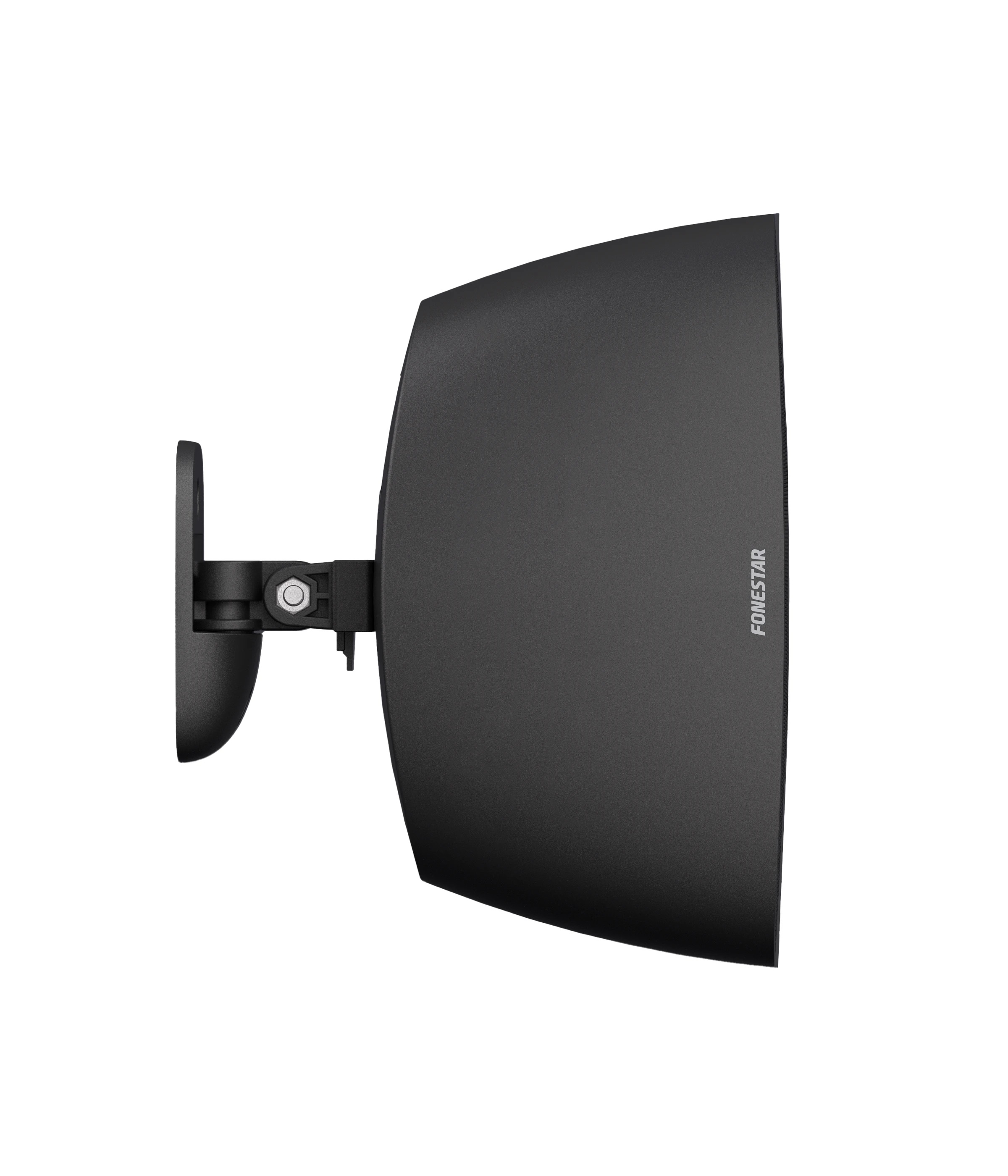

Fonestar SONORA-5AWN

Fonestar SONORA-5AWN - Active mounting speaker, with Wi-Fi connection, designed for public address (PA), music and ambient sound applications. It is equipped with an efficient and reliable class D amplifier, providing clear, well-defined sound without distortion. Music playback is wireless via Wi-Fi (2.4 GHz) from a smartphone, tablet, Windows or Mac. The speaker can be controlled through a dedicated app (iOS and Android), which allows access to online music services, internet radio, multiroom functionality for synchronized playback on multiple speakers, individual volume adjustment and device name customization.

In addition to the Wi-Fi connection, the SONORA-5AWN supports playback from USB and auxiliary input. It features tone and volume controls, a mono/stereo selector, and an automatic standby function. Through the 8 Ω passive speaker output, it can be expanded for stereo sound using the SONORA-5B model. All necessary accessories for a quick and secure installation are included: adjustable mounting bracket, stainless steel screws, and safety cable made of steel. The SONORA-5AWN is ideal for sound installations in training rooms, restaurants, cafes, supermarkets, shopping centres, and other public spaces that require high-quality ambient sound.

FEATURES:

• Active mounting speaker, with Wi-Fi & integrated player
• App for control from smartphones, tablets, WIIM devices and compatible
• Wi-Fi playback of playlists, online music services and internet radio
• Multiroom function:
  • Allows simultaneous playback of the same content on multiple speakers
  • Secondary speakers connect to the main speaker via Wi-Fi or Ethernet cable
• USB player and auxiliary input
• Class D amplifier
• Output for passive speaker
• High sound quality, clear and without distortion
• Tone and volume controls
• Mono/stereo selector
• Automatic standby function

POWER:

• 25 + 25 W RMS

DRIVERS:

• 1 x 5 ¼" polypropylene woofer
• 1 x 1" tweeter

FREQUENCY RESPONSE:

• 80 – 20,000 Hz

INPUTS:

• 1 stereo auxiliary input, 3.5 mm jack, 750 mV RMS
• 1 RJ-45 Ethernet port (Ethernet data)

OUTPUTS:

• 1 passive speaker, 8 Ω, euroblock connector

CONTROLS:

• Volume control
• Tone controls: bass and treble
• Mono/stereo selector
• USB playback

MATERIAL:

• ABS housing
• Aluminium grille
• Stainless steel screws

TEMPERATURE RANGE:

• -10°C to 60°C

COLOUR:

• Black (RAL 9004)

POWER SUPPLY:

• 230 V AC, 60 W
• 115 V AC on request

DIMENSIONS:

• Speaker: 162 x 263 x 147 mm (depth)
• Wall mounting plate: 68 x 110 mm
• Speaker with bracket: 216 mm (depth)

WEIGHT:

• 2.7 kg

ACCESSORIES:

• Adjustable mounting bracket ± 60° in all directions
• Safety cable made of steel
