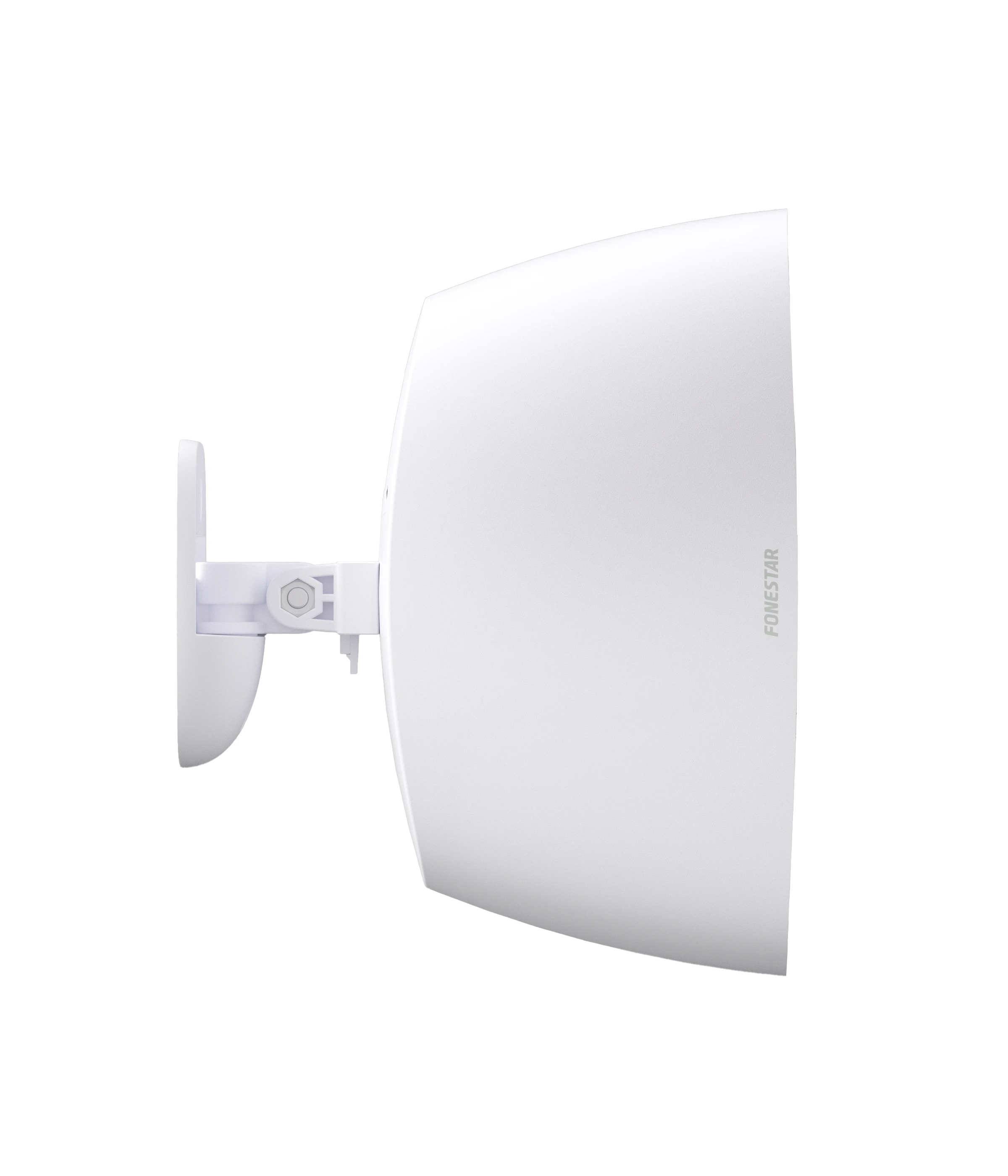

Fonestar SONORA-5AIPXB

Fonestar SONORA-5AIPXB - Active PoE speaker from the AIPX series, designed for surface mounting, specifically created for public address (PA) systems and ambient music applications in outdoor environments and marine areas, offering complete protection against water and dust (IP-66). It integrates an IP audio player and SIP client, allowing playback of background music, scheduled or real-time messages, alarms, and voice announcements via the LAN network.

The speaker provides clear and undistorted sound, featuring an internal microphone for SPL functions and auto-check, measuring the ambient sound pressure level for automatic volume adjustment in each zone. Its elegant design and durable materials (ABS, aluminium, stainless steel) enable easy integration into any weather-exposed space.

It is a fully scalable solution, compatible with the intuitive AIP-Go software, which facilitates automatic discovery and management of connected devices in the network. The SONORA-5AIPXB is ideal for outdoor sound installations, on terraces, in schools, cafes, supermarkets, shopping centres, or other locations exposed to corrosive or saline environments.

FEATURES:

• Active PoE speaker for AIP systems, with IP audio player and SIP client
• Suitable for outdoor use and marine environments, with IP-66 protection
• Class D amplifier
• High sound quality, clear playback without distortion
• Integrated microphone for SPL function and automatic check:
  • Captures ambient sound pressure level values
  • Allows automatic volume adjustment in designated areas
• Enables audio reception via multicast streaming in local network (LAN)
• Operating status indicator
• Remote update via PC software

POWER:

• 22 W RMS (PoE, 60W)

DRIVERS:

• 1 x 5 ¼" polypropylene woofer
• 1 x 1" tweeter

FREQUENCY RESPONSE:

• 80 - 20,000 Hz

INPUTS:

• 1 x 10/100 Base T Ethernet network, RJ-45 connector

PROTECTIONS:

• IP-66 protection grade
• Environmental testing according to IEC 60068-2-11 (saline atmosphere)

MATERIAL:

• ABS housing (UV radiation resistant)
• Powder-coated aluminium grille
• Weather-resistant support
• Stainless steel screws

TEMPERATURE RANGE:

• From -10°C to +60°C

INDICATOR:

• Operational status

COLOUR:

• White (RAL 9003)

POWER SUPPLY:

• 1 x 60W PoE Ethernet, RJ-45

DIMENSIONS:

• Speaker: 162 x 263 x 147 mm depth
• Wall mounting plate: 68 x 110 mm
• Speaker with support: 216 mm depth

WEIGHT:

• 9 kg

ACCESSORIES:

• Adjustable mounting bracket ±60° in all directions
• Steel safety cable
