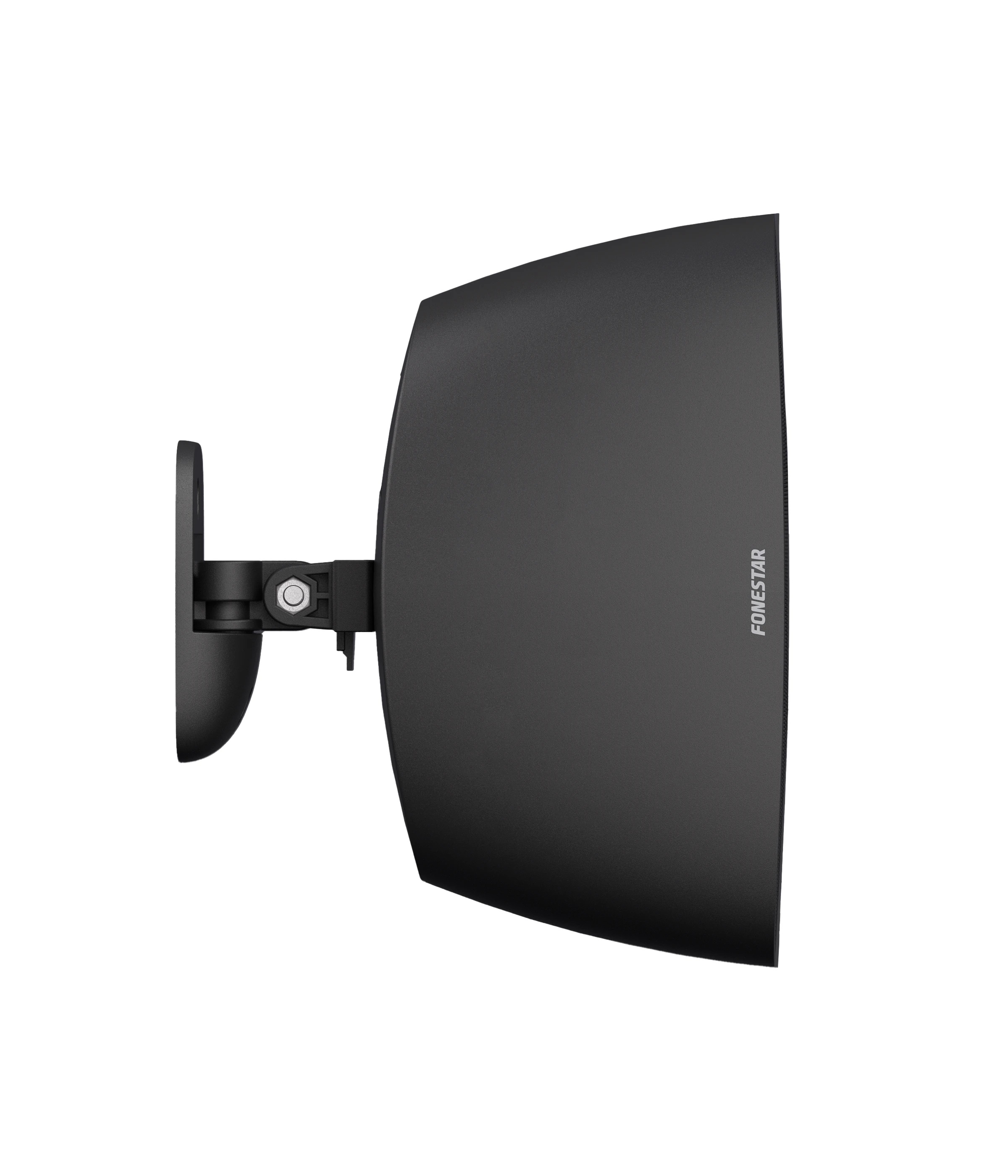

Fonestar SONORA-5AIPN

Fonestar SONORA-5AIPN - Active PoE speaker for installation, specially designed for IP audio systems (AIP), integration into LAN networks and general sound reinforcement or ambient music applications. It is part of the SONORA-AIP range developed by Fonestar, a series of intelligent speakers with an IP audio player and SIP client, ideal for voice announcements, alarms, scheduled messages or music playback via multicast.

It offers clear, balanced sound without distortion, being equipped with an internal microphone for the SPL function and self-check, which allows automatic volume adjustment based on ambient sound levels. It features an output for a passive speaker (via euroblock connector), an auxiliary audio input (3.5 mm jack), a programmable isolated input for event triggering, and Ethernet connectivity. Installation is quick and secure, thanks to the adjustable mounting bracket, stainless steel screws, and included safety cable.

As part of the fully scalable AIP solution, the SONORA-5AIPN allows management of an unlimited number of devices and IP audio channels, with automatic detection in the network and intuitive configuration software (AIP-Go), making it ideal for restaurants, schools, supermarkets, cafes, or shopping centres.

MAIN FEATURES:

• Active PoE speaker for AIP systems, with IP audio player and SIP client
• Class D amplifier, with output for passive speaker
• High-quality sound, clear and without distortion
• Integrated microphone for SPL function and self-check (auto-check)
  • Allows measurement of ambient sound pressure and automatic volume adjustment
• Supports audio multicast streaming over LAN
• General-purpose input for external commands
• Functional status indicator
• Remote firmware update (via PC software) or locally (USB)

POWER:

• 25 + 25 W RMS (24V DC power supply, 3.125 A, 75W)
• 20 + 20 W RMS (PoE power supply, 60W)

INCLUDED SPEAKERS:

• 1 x 5 ¼" polypropylene woofer
• 1 x 1" tweeter

FREQUENCY RESPONSE:

• 80 – 20,000 Hz

INPUTS:

• 1 x aux stereo, 3.5 mm jack
• 1 x programmable isolated input for event triggering, euroblock
• 1 x 10/100 Base T network, RJ-45
• 1 x USB port for software updates

OUTPUTS:

• 1 x output for passive speaker, 8 Ω, euroblock

INDICATOR:

• LED for operational status

MATERIALS:

• UV-resistant ABS housing
• Aluminium grille painted in electrostatic field
• Stainless steel screws

OPERATING TEMPERATURE:

• From -10°C to +60°C

COLOUR:

• Black (RAL 9004)

POWER SUPPLY:

• 1 x PoE 60 W via Ethernet RJ-45
• or 24 V DC, 75 W, via euroblock

DIMENSIONS:

• Speaker: 162 x 263 x 147 mm (depth)
• Wall mounting plate: 68 x 110 mm
• Speaker with mount: 216 mm depth

WEIGHT:

• 1.9 kg

ACCESSORIES:

• Adjustable mounting bracket ±60° in all directions
• Steel safety cable
