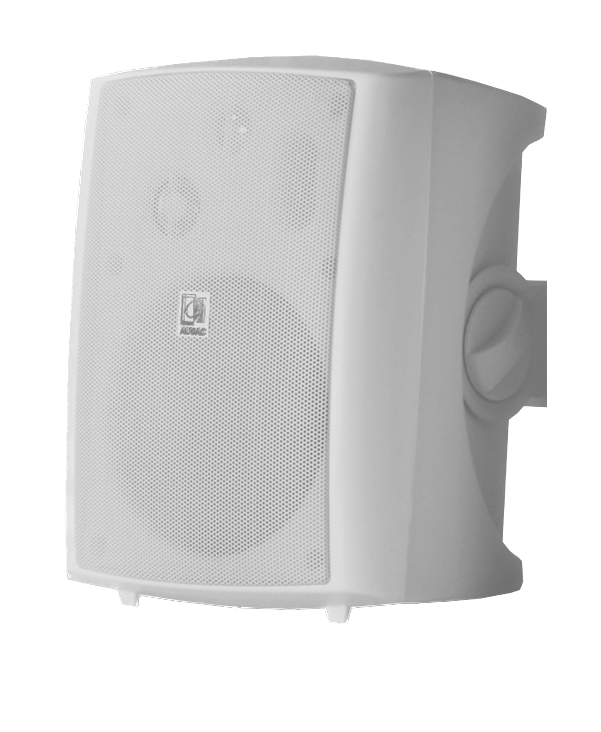

Audac LX 523 White

Audac LX 523 White - is a 3-way stereo system, consisting of an active speaker and a passive one, designed to be used in combination with separately available input units (or as a set), such as the WP523 wall panel.

It is capable of producing clear and powerful sound, with a power of up to 2 x 40 Watts, providing a flexible solution for a wide range of applications. In combination with the WP523, it offers a solution for applications such as classrooms, meeting rooms, presentation desks, and many others, where a speech signal from a microphone and a music signal from a source device, such as a laptop, CD player, MP3 player, etc., need to be mixed and made audible for an audience.

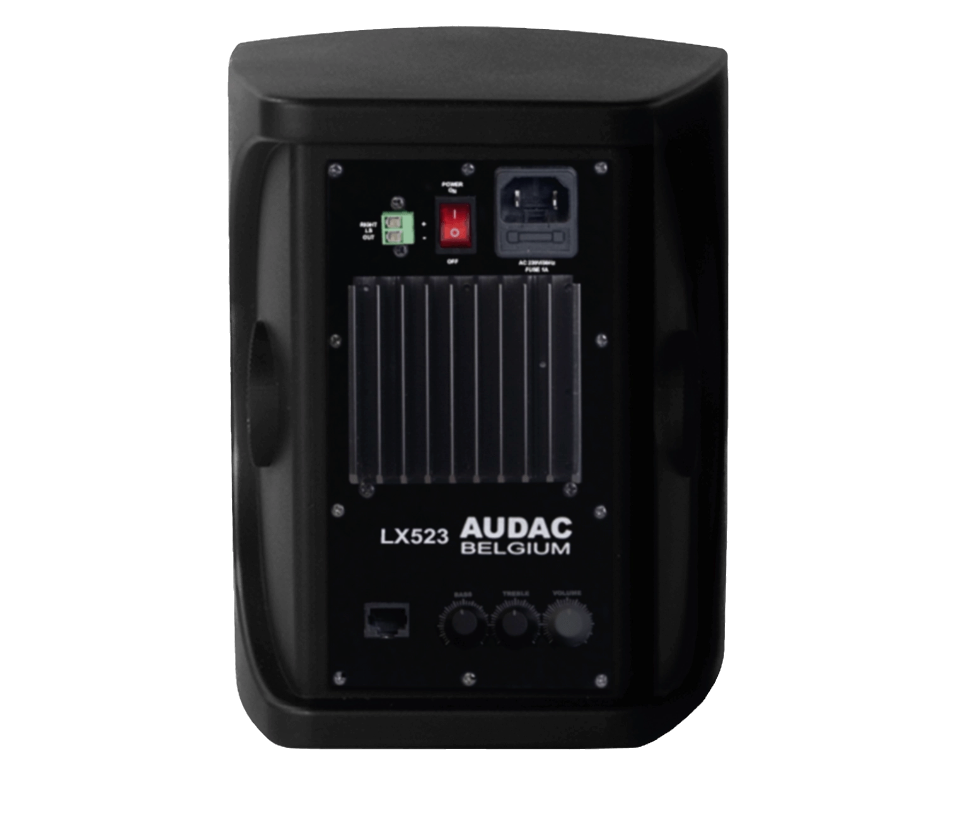

The input connections should be made on the back of the active speaker via an RJ45 input connector, accompanied by a two-band tone control for equalising the bass and treble.

The applied signal is differential with a high voltage level, which makes the transferred signal unresponsive to interference and noise generated by external devices. This allows for coverage of distances of up to 500 metres between the input device and the speaker, simply by using a cheap CAT5 twisted pair cable.

• RMS/AES Power 2 x 40 W
• Sensitivity (1W/1m) 88 dB
• Frequency Response (± 3 dB) 80 Hz - 20 kHz
• Drivers
  • HF 3/4"
  • MF 1"
  • LF 5 1/4"
• Dimensions 178 x 240 x 193 mm
• Weight 5.4 kg
• Operating Temperature -20 °C ~ 45 °C
• Construction ABS
• Powder-coated steel support
• Colours WHITE (LX523/W)
• Included Accessories - Mounting bracket
