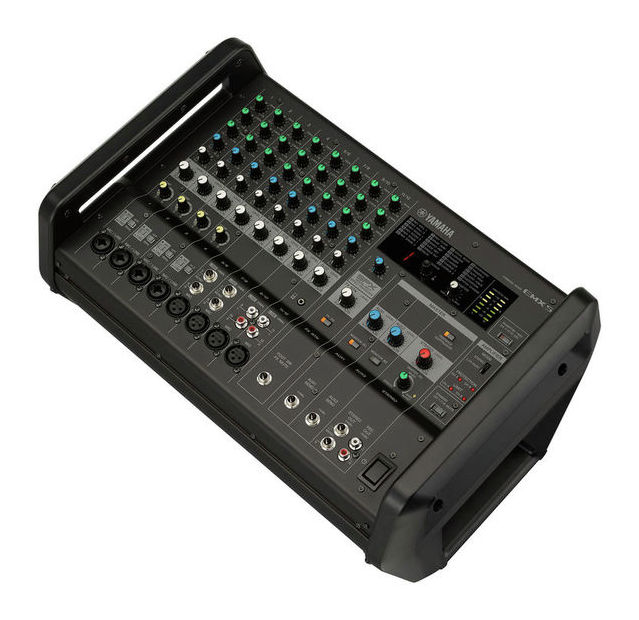

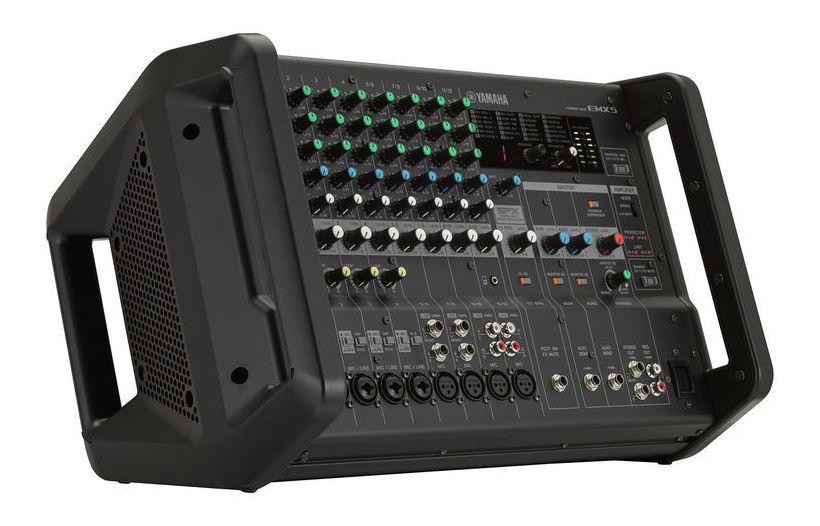

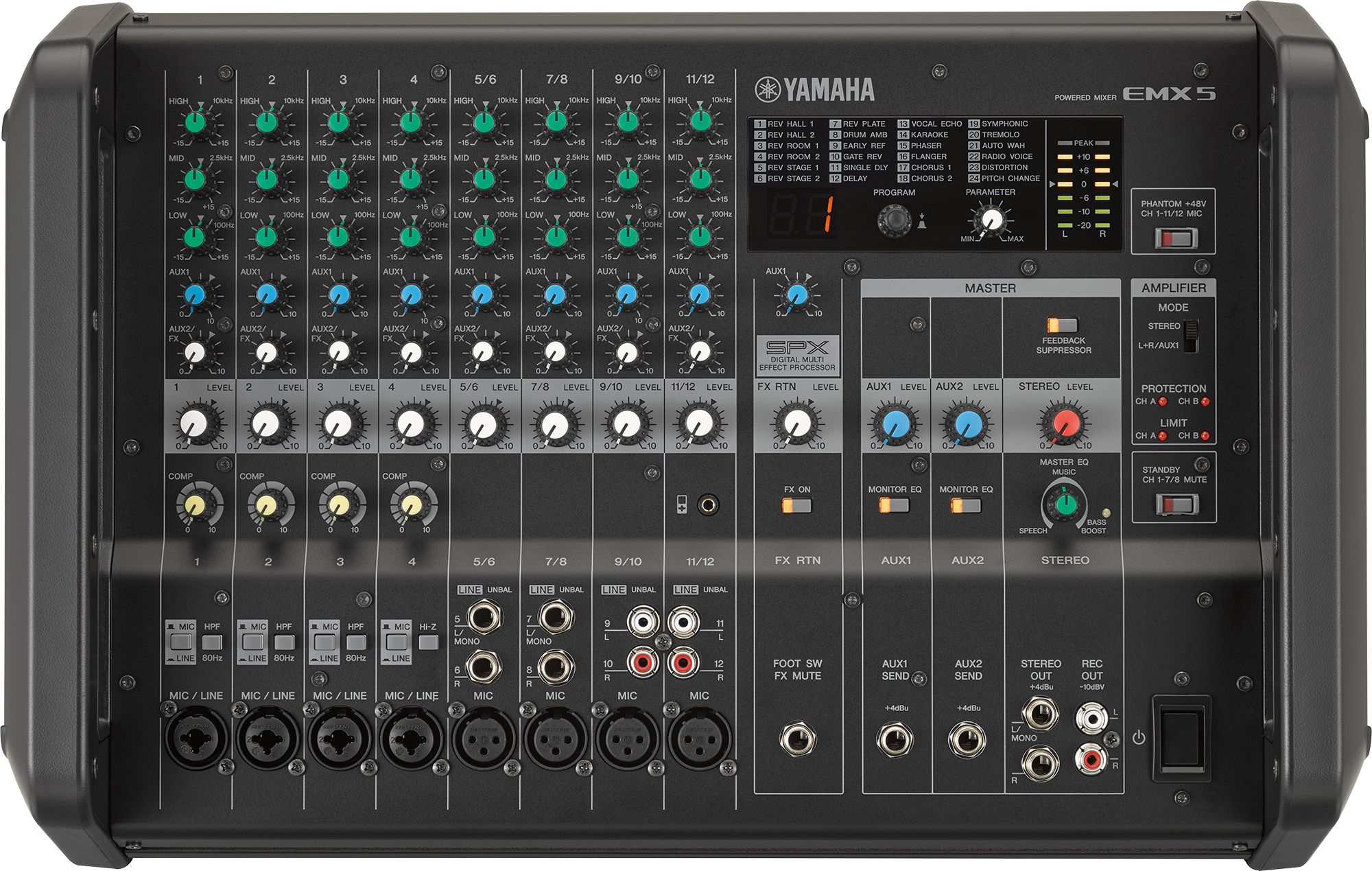

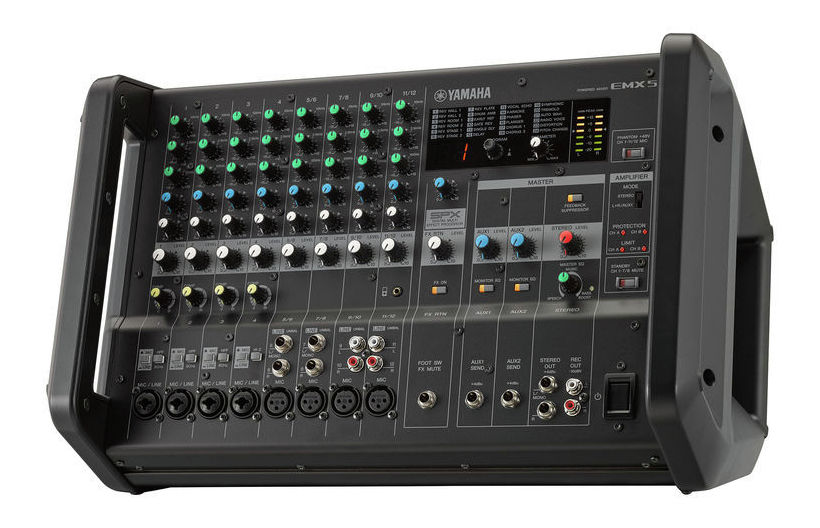

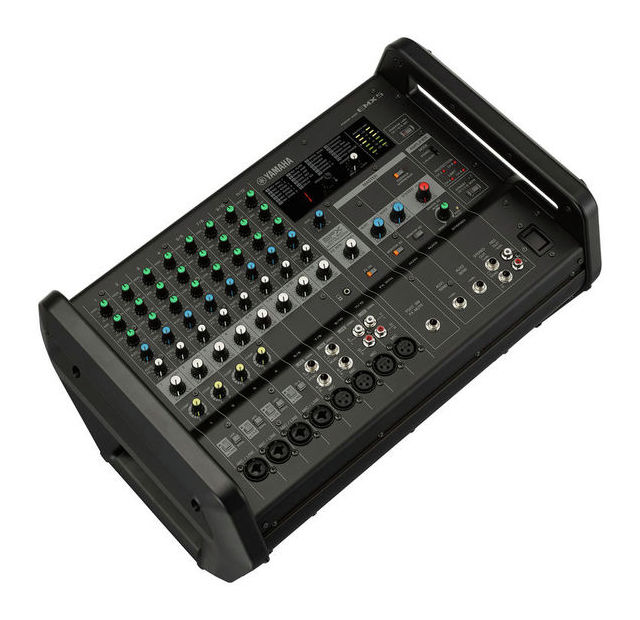

Yamaha EMX 5

Yamaha EMX 5 - Compact and versatile amplified mixer, offering a maximum power of 2 x 630W / 4 Ohm, 2 x 460W / 8 Ohm, 8 microphone input channels with XLR and Jack connectors, 4 stereo channels, 3-band EQ, feedback locator function, SPX class digital effects processor, left/right monitor output, subwoofer output, speaker outputs with 6.3 mm jack connectors, 19" rack mountable.

Technical specifications:

• Inputs: total 12 channels, 8 Mono (MIC/LINE), 4 Stereo (LINE)
• Phantom power: +48 V
• Outputs: speakers [A, B], AUX1 SEND, AUX2 SEND, STEREO OUT [L, R], REC OUT [L, R]
• Control: FOOT SWITCH - Effect Mute on/off
• Bus:
  • Stereo: 1
  • AUX: 2 (Including FX)
• Input channel functions:
  • PAD: 30 dB (CH1-4)
  • Hi-Z: Supported (CH4)
  • HPF: 80 Hz, -12 dB/oct. (CH1–3)
  • COMP: 1-knob COMP (CH1–4)
  • EQ HIGH 10 kHz +15 dB / -15 dB (Shelving)
  • EQ MID 2.5 kHz +15 dB / -15 dB (Peaking)
  • EQ LOW 100 Hz +15 dB / -15 dB (Shelving)
• Built-in processors: DSP with 24 programs with SPX algorithm, Feedback suppressor, Master EQ, Monitor EQ
• Built-in amplification:
  • Maximum output power at 4 Ohms: 1kHz THD+N < 10% (CEA2006) : 630 W + 630 W, 1kHz THD+N < 1% (CEA2006) : 500 W + 500 W
  • Maximum output power at 8 Ohms: 1kHz THD+N < 10% (CEA2006) : 460 W + 460 W, 1kHz THD+N < 1% (CEA2006) : 370 W + 370 W
• Level Meter: 2 × 7 LEDs (-20, -10, -6, 0, +6, +10, Peak)
• Frequency response:
  • Speaker input: +1 dB/-3 dB (40 Hz to 20 kHz),
  • Input to STEREO OUT, AUX1 SEND, AUX2 SEND : +0.5 dB/-1 dB (20 Hz to 20 kHz) ,
• Total harmonic distortion:
  • Speaker input: 0.1% at 10 W (40 Hz to 20 kHz), 0.05% at 50 W (1 kHz)
  • Input to STEREO OUT, AUX1 SEND, AUX2 SEND: 0.03% at +14 dBu (20 Hz to 20 kHz), 0.007% at +20 dBu (1 kHz), (THD+N, measured with 22 kHz LPF)
• Noise level:
  • Equivalent input noise: -117 dBu (measured with A-weighting filter)
  • Residual output noise:
    • Speaker input: -70 dBu(40Hz to 20kHz, STEREO MASTER LEVEL: min)
    • Input to STEREO OUT, AUX1 SEND, AUX2 SEND : -82dBu(20Hz to 20kHz, STEREO MASTER LEVEL: min) (measured with A-weighting filter)
• Crosstalk: -85 dB (1 kHz, measured with 1 kHz band pass filter)
• Protection circuit:
  • Load protection: DC-fault
  • Amplifier protection: overheating, overvoltage, full power protection
  • Power supply protection: overheating, overvoltage
• Power requirements: AC 100-240V, 50Hz/60Hz
• Power consumption: 42 W (Idle) / 210 W (1/8 Power)
• Dimensions (WxDxH): 465x325x308 mm
• Weight: 9.5 kg
