Optimal Audio AMP 200 - High-performance power amplifier, featuring 3 channels of 700 W each, specially designed to power the Cuboid speakers and Sub from the Optimal Audio ecosystem.

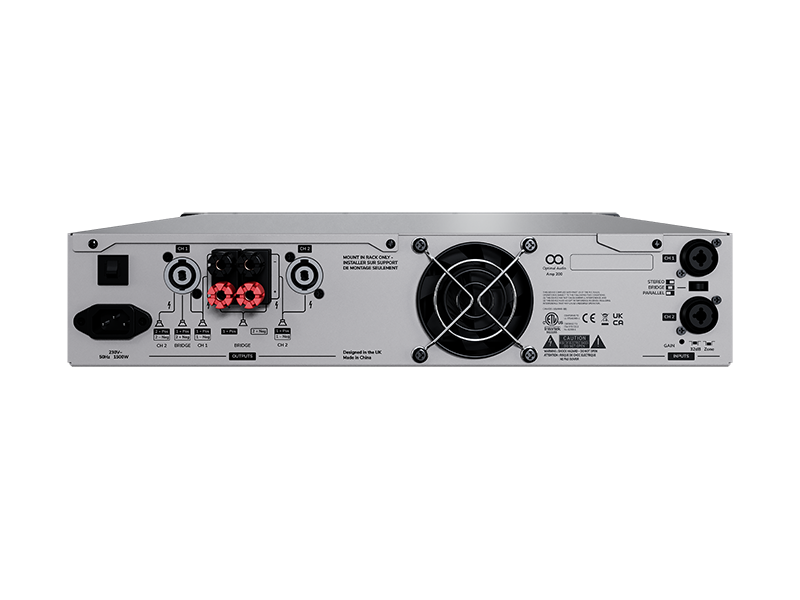

Amp 200 has flexible input connectors, with two combined balanced XLR / 1/4" Jack inputs and speakON® outputs or binding posts. Amp 200 can be easily configured for a variety of installation applications and can operate in Stereo, Bridge or Parallel modes, selectable via a switch on the rear panel of the unit.
When combined with a Zone processor, Amp 200 reaches its full potential, offering a complete set of Optimal Audio speaker presets, limiters, and more, easily configurable through the integrated WebApp of the Zone.
Features:
- Reliable and high-power design, class A/B
- 700 watts per channel at 4Ω
- Combines with the Zone processor for maximum performance
- Stereo, Bridge and Parallel modes
- Available in 120v 60Hz or 230v 50/60Hz models
Specifications:
- type: class AB power amplifier
- power output (4Ω -16Ω): 4Ω: 700w / 8Ω: 400w / 8Ω bridged: 1400w
- cooling: active cooling with fan
- analog/link input: combined jack 6.3mm/xlr inputs
- analog input impedance: 7.5 kohm unbalanced, 15 kohm balanced
- maximum analog input level: +20dbu
- amplifier outputs: speakon / 4mm binding posts
- signal-to-noise ratio: 104db
- frequency response: 20 Hz – 20 kHz, +0, -0.5db
- total harmonic distortion: <0.03% @ 1w
- slew rate: 9.31v/us, 8 ohm load
- damping factor: >400, 8 ohm load
- main power supply: universal power supply, 100-240v, 50-60hz
- main power connector: IEC

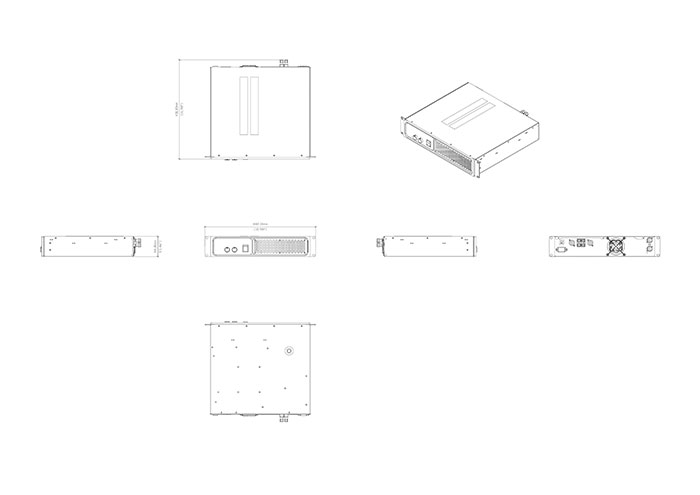

- dimensions: (l) 482mm x (h) 88mm x (d) 426mm
- weight: 17.06kg
