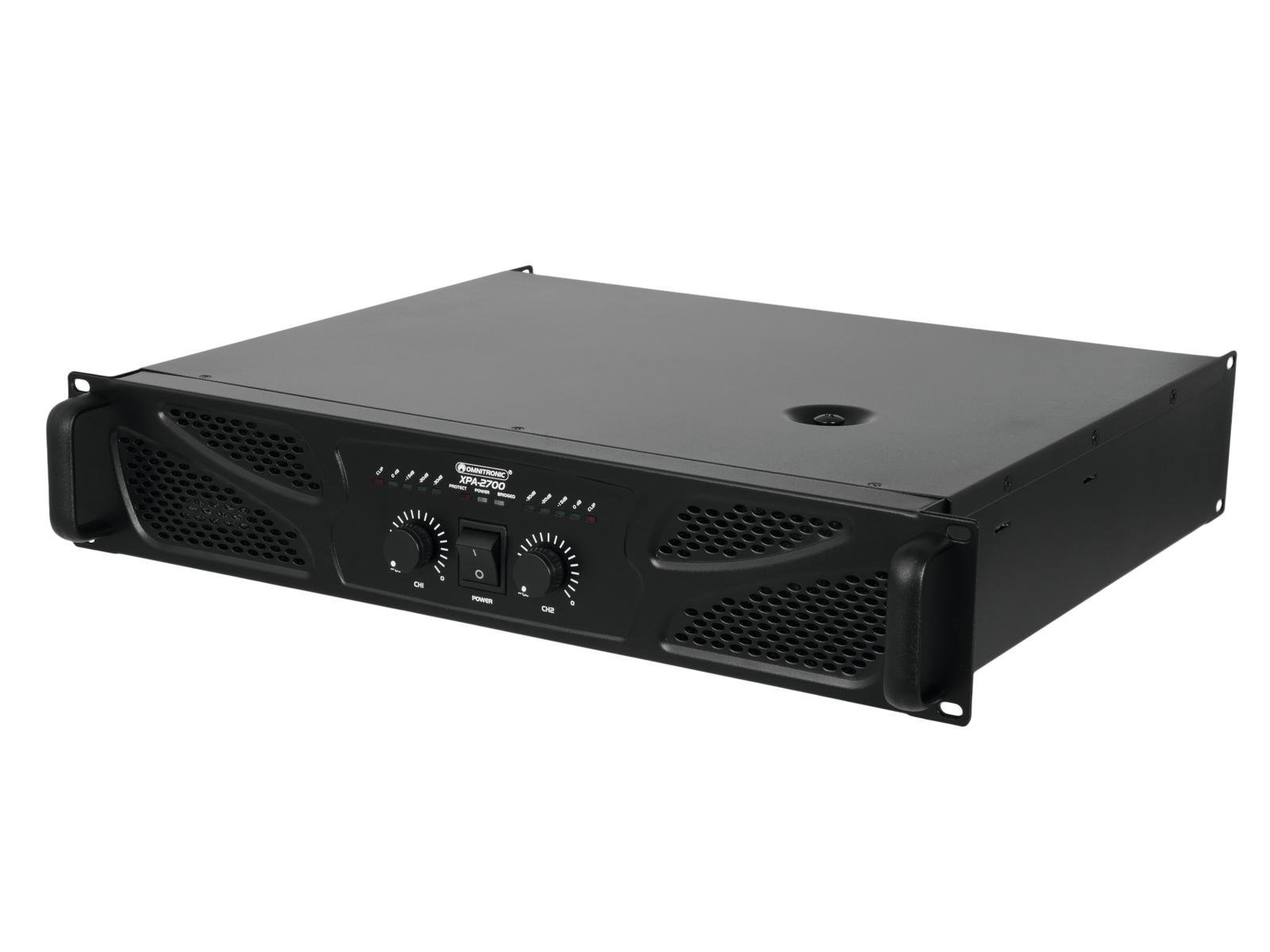

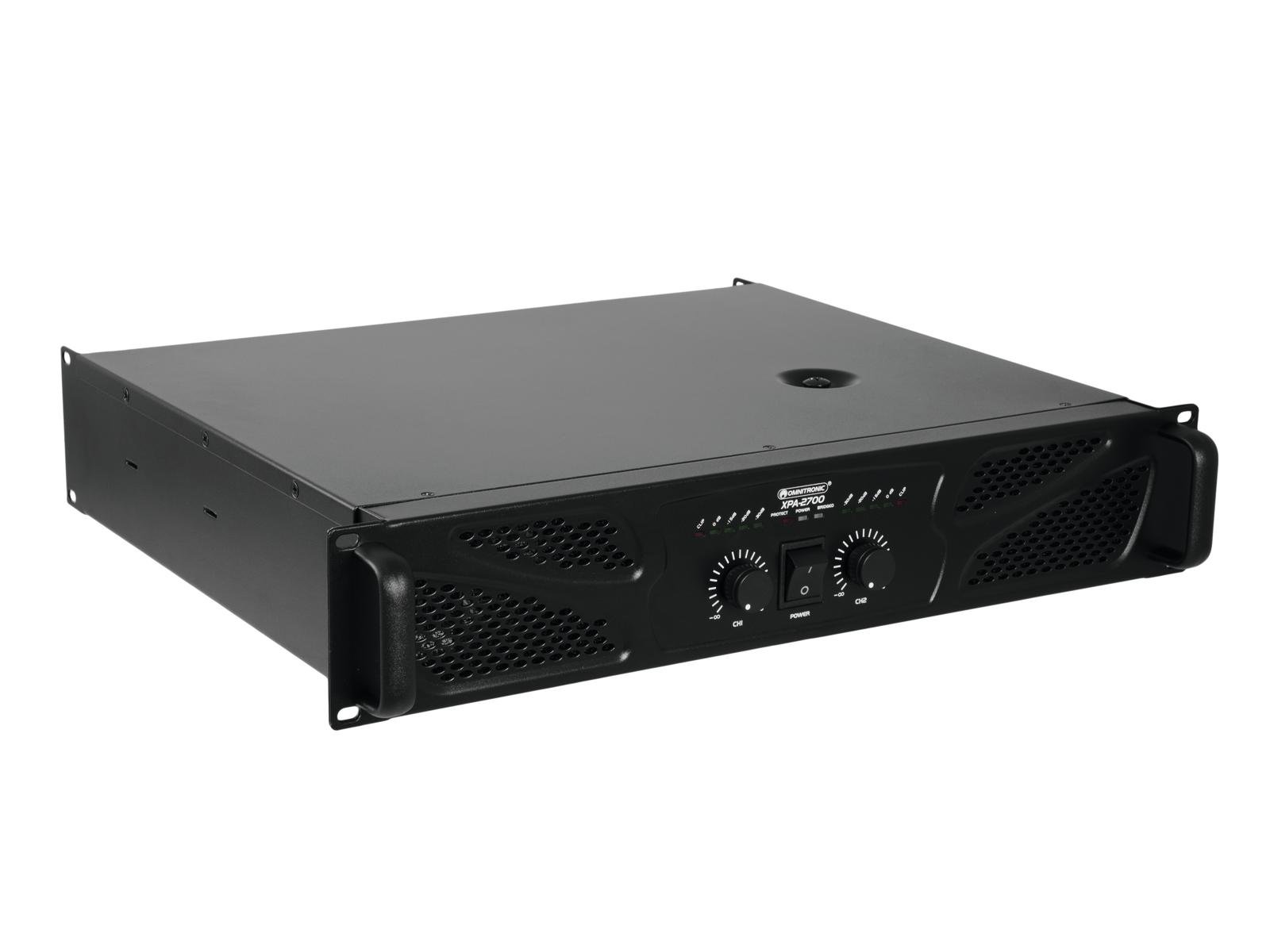

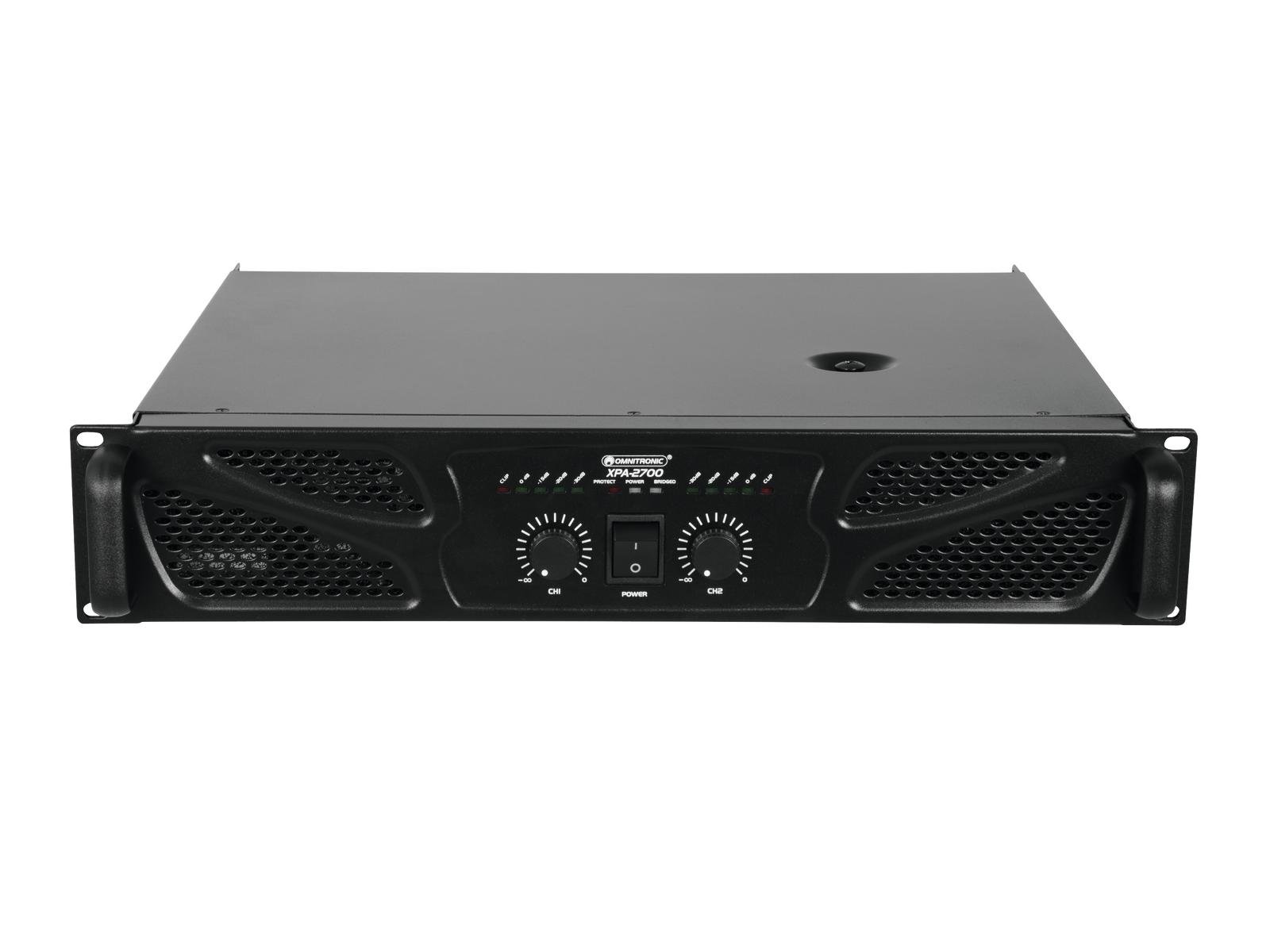

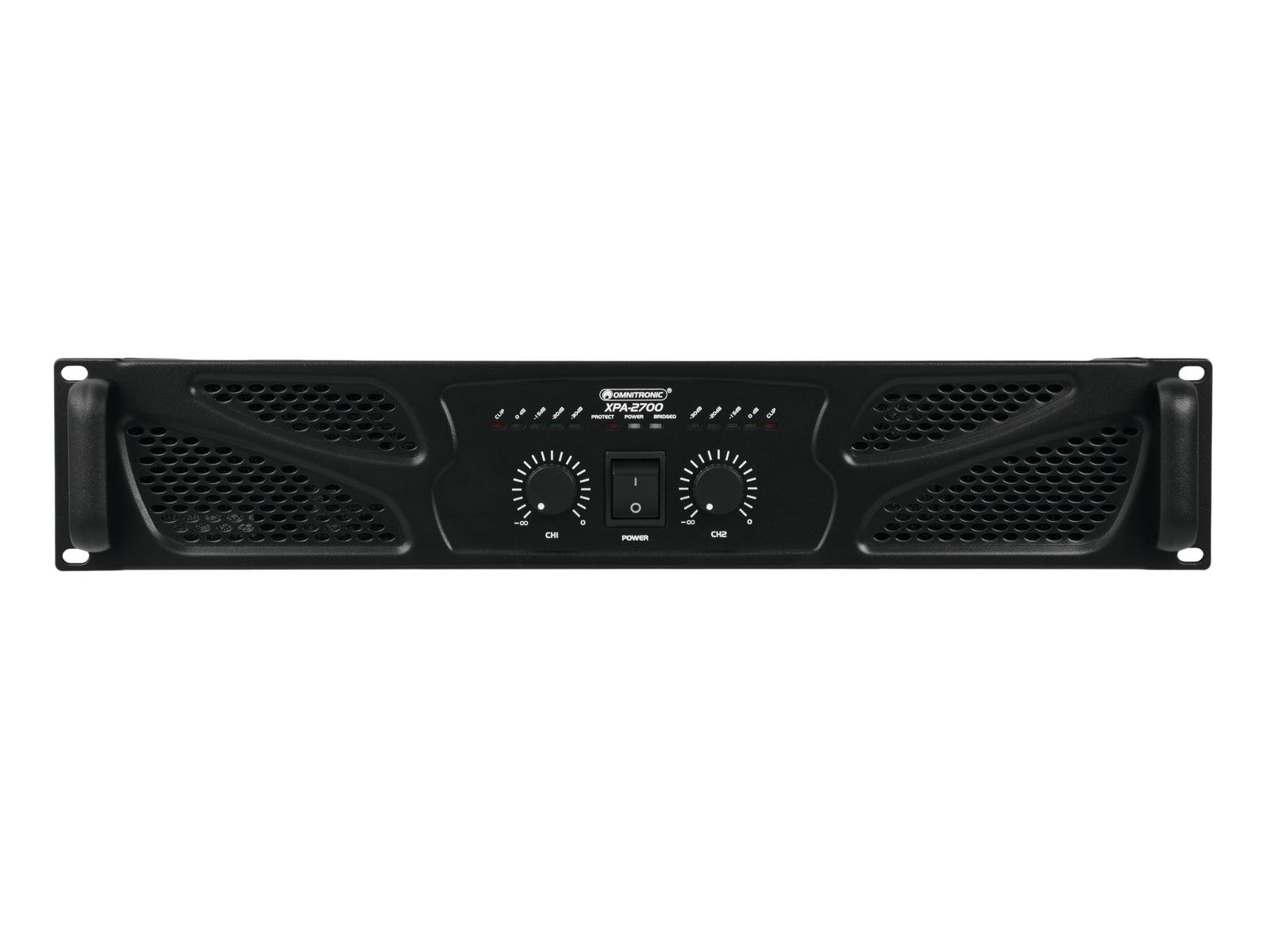

Omnitronic XPA-2700

Amplifier

pA amplifier with limiter, delivering 2 x 1350 W at 4 ohms and 2 x 1080 W at 8 ohms.
selectable operating modes: stereo, parallel, or bridge.
adjustable input sensitivity and two level controls.
includes protection circuit with LED indicators for each channel.
compact 2U rack-mountable design with cooling fan.

531¹³ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

2733 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

Omnitronic XPA-2700 Add to cart: 531¹³ €

PA amplifier with limiter, 2 x 1350 W / 4 ohms, 2 x 1080 W / 8 ohms

3 operating modes can be selected (stereo, parallel or bridge)
Adjustable input sensitivity
2 level controls
Each channel with LED for activated protection circuit (protection) and output meter with LED clip

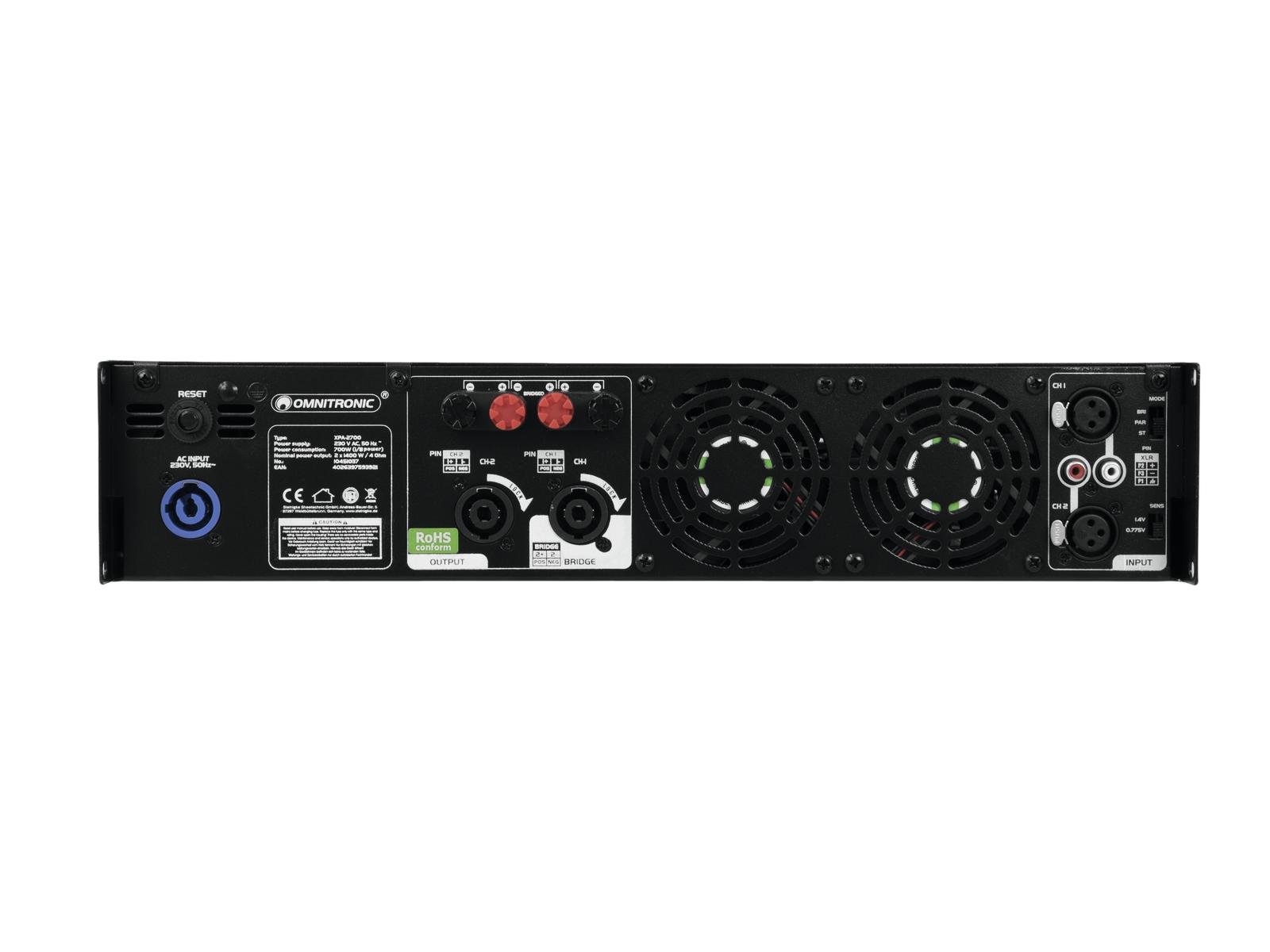

Signal inputs via XLR or RCA connectors
Speaker outputs via locking speaker connectors and pairs of terminal screws
Class H circuits
The device is cooled by a cooling fan
(19") 48.3 cm rack installation 2 U

Package contents

Power supply:	230 V AC, 50 Hz
Power consumption:	700 W 1/8 power
Output power:	2 x 1350 W RMS (4 ohms) 2 x 1080 W RMS (8 ohms) 2700 W RMS in bridge (8 ohms)
Power connection:	Network input via P-Con (blue), power cable mounting version with safety plug (supplied)
Frequency range:	20 - 20000 Hz
S/N ratio:	>100 dB
THD:	<0.5 % at 1 kHz
Cooling:	Cooling fan
Impedance:	Input: 20 kOhm, balanced Input: 10 kOhm, unbalanced
Circuits:	Class H
Rate of reduction:	>10 V/µs
Damping factor:	>200
Control elements:	Power switch, channel level control, mode switch (stereo/parallel/bridged), input sensitivity switch
Controls:	Short circuit; overheating; DC voltage; turn-on/off transients; soft start; transient turn-on/off
Status LED:	Power, level meter, clip, bridge, protect
Connections:	Input: line via 2 x 3-pin XLR Input: line via 1 x RCA stereo Output: speaker via 2 x built-in socket for speaker (F) Output: speaker via terminal screw
Input sensitivity:	0.775 V; 1.4 V, switchable
Case design:	(19") 48.3 cm rack installation 2 U
Dimensions:	Width: 48.3 cm Depth: 41.5 cm Height: 8.9 cm
Weight:	15.70 kg

Product code: 10451037

Unit of sale: piece

Specifications:
