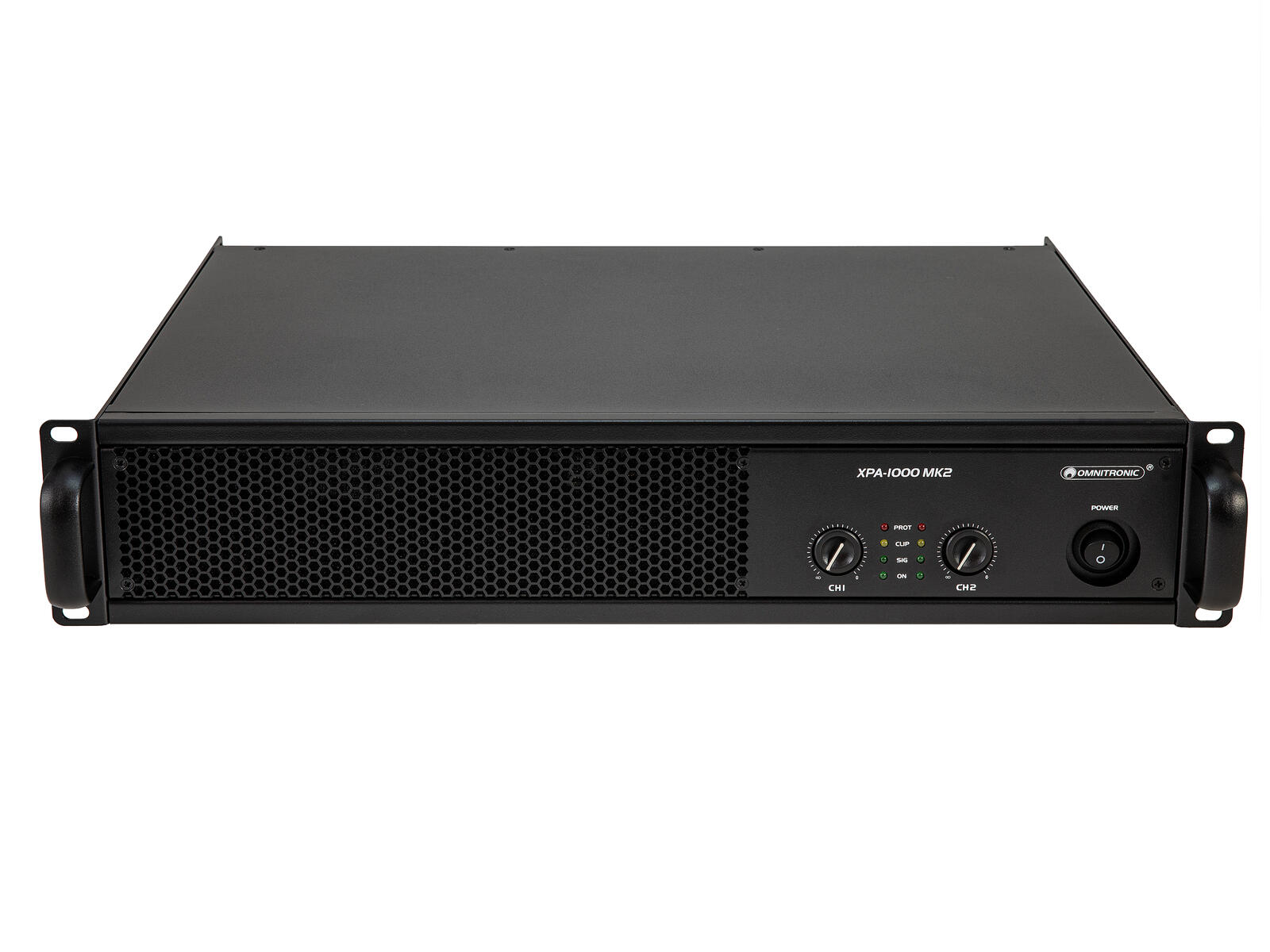

Omnitronic XPA-1000 MK2 Amplifier

Name: Omnitronic XPA-1000 MK2 Amplifier
Brand: Omnitronic
SKU: 10451003
Price: 252.86 EUR
Availability: OutOfStock

PA amplifier

252⁸⁶ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

1301 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

Omnitronic XPA-1000 MK2 Amplifier Add to cart: 252⁸⁶ €

Class AB PA amplifier with limiter, 2 x 500 W RMS (4 ohms), 2 x 300 W RMS (8 ohms)

Package contents

Power supply:	230 V AC, 50 Hz
Power consumption:	710 W 1/8 power
IP classification:	IP20
Protection class:	Protection class I
Output power:	2 x 500 W RMS (4 ohms); 2 x 300 W RMS (8 ohms); 1000 W RMS bridged (8 ohms)
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug included
Device fuse:	5 x 20 mm, F 8 A fuse serviceable
Frequency range:	20 - 20000 Hz
S/N ratio:	>95 dB
THD:	<0,05 % at 1 kHz
Cooling:	2 x temperature-controlled fan , air flow from front to rear
Impedance:	Input: 10 kOhm , unbal. Input: 20 kOhm , bal.
Housing color:	Black
Circuitry:	Class AB
Slew rate:	>20 V/µs
Damping factor:	>200
Control elements:	Power switch, level control per channel, mode switch (stereo/parallel/bridged)
Controls:	Softstart; DC voltage; VHF; short-circuit; limiter; overheat
Status LED:	Power, signal, clip, protect
Connections:	Input: line via 2 x 3-pin XLR (F) mounting version Input: line via stereo RCA Output: speaker via 2 x speaker built-in socket (F) Output: speaker via screw terminal
Input sensitivity:	1 V
Housing design:	(19") 48.3 cm rack installation possible 2 U
Mounting depth:	33,2 cm
Dimensions:	Width: 48,3 cm Depth: 36,8 cm Height: 8,8 cm
Weight:	10,40 kg
