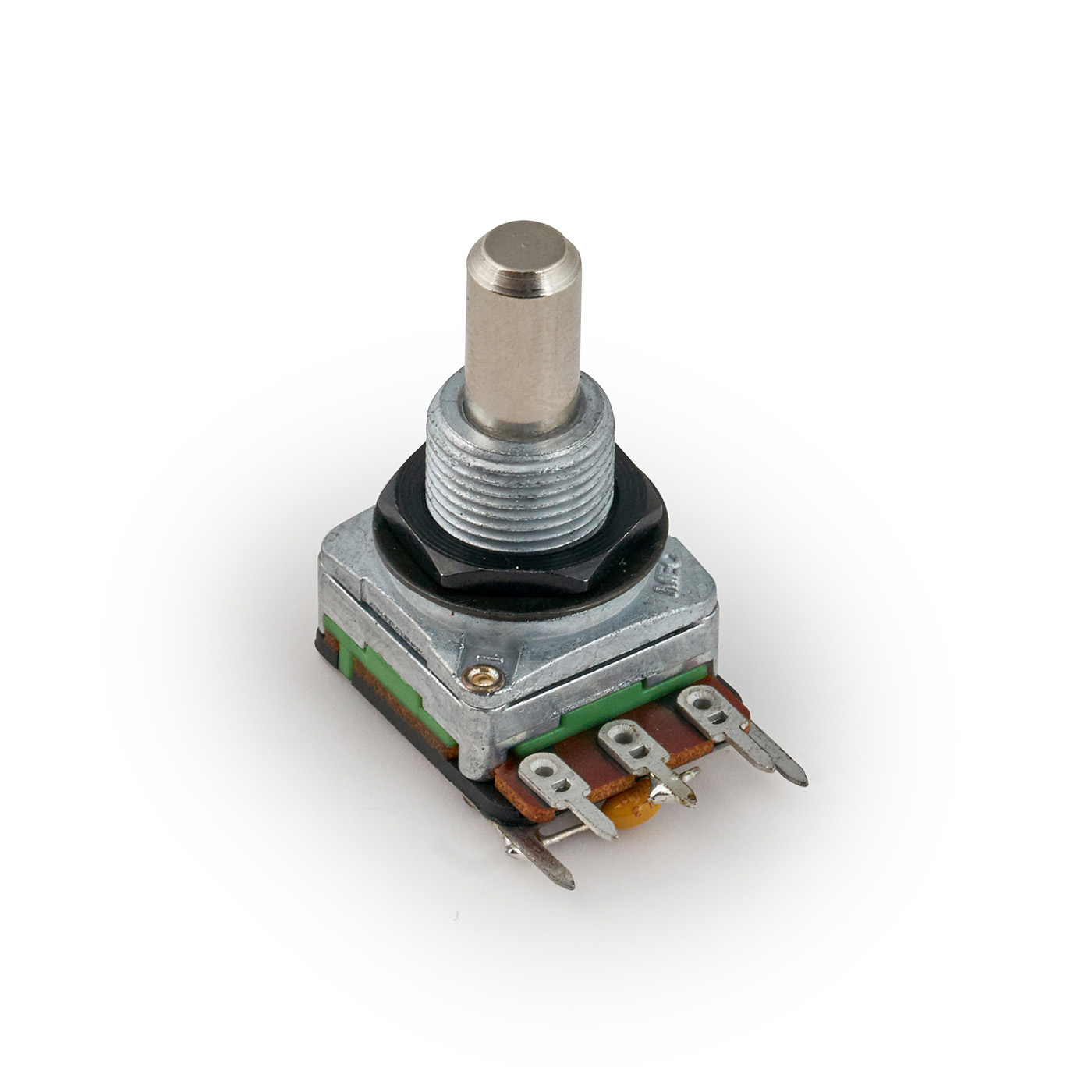

MEC Pickups Tone Pot Module, C500K, w/ 33NF Capacitor, Lefthand

Potentiometer Module

mono potentiometer module with a single shaft.
c500K resistance (500 kOhm) for left-handed instruments.
pre-soldered with a 33 nF capacitor for easy installation.
suitable for tone control in passive pickups.
includes nut and washer; dimensions 24 x 16 x 9 mm.

37⁰⁷ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

191 points of loyalty

Shipping 8.00 €

Warranty 24 months

Returns 14 days

request details

MEC Pickups Tone Pot Module, C500K, w/ 33NF Capacitor, Lefthand Add to cart: 37⁰⁷ €

- Mono potentiometer module
- Single shaft
- C500K (resistance 500 kOhm, (C) reverse logarithmic)
- For left-handed instruments
- Pre-soldered with 33 nF capacitor
- Suitable for tone control for passive pickups
- Thread M10 x 0.75 mm
- Mounting diameter 10 mm
- Thread length 9 mm
- Solid shaft
- Shaft length 11 mm
- Shaft diameter 6 mm
- Includes nut and washer
- Dimensions incl. terminals (L x W x H) 24 x 16 x 9 mm

- Note: The return and refund policy does not apply to electronic components if their wires have been cut or soldered, if there are signs of use, if they have already been installed, or if other damage affecting the condition of the goods is present.
