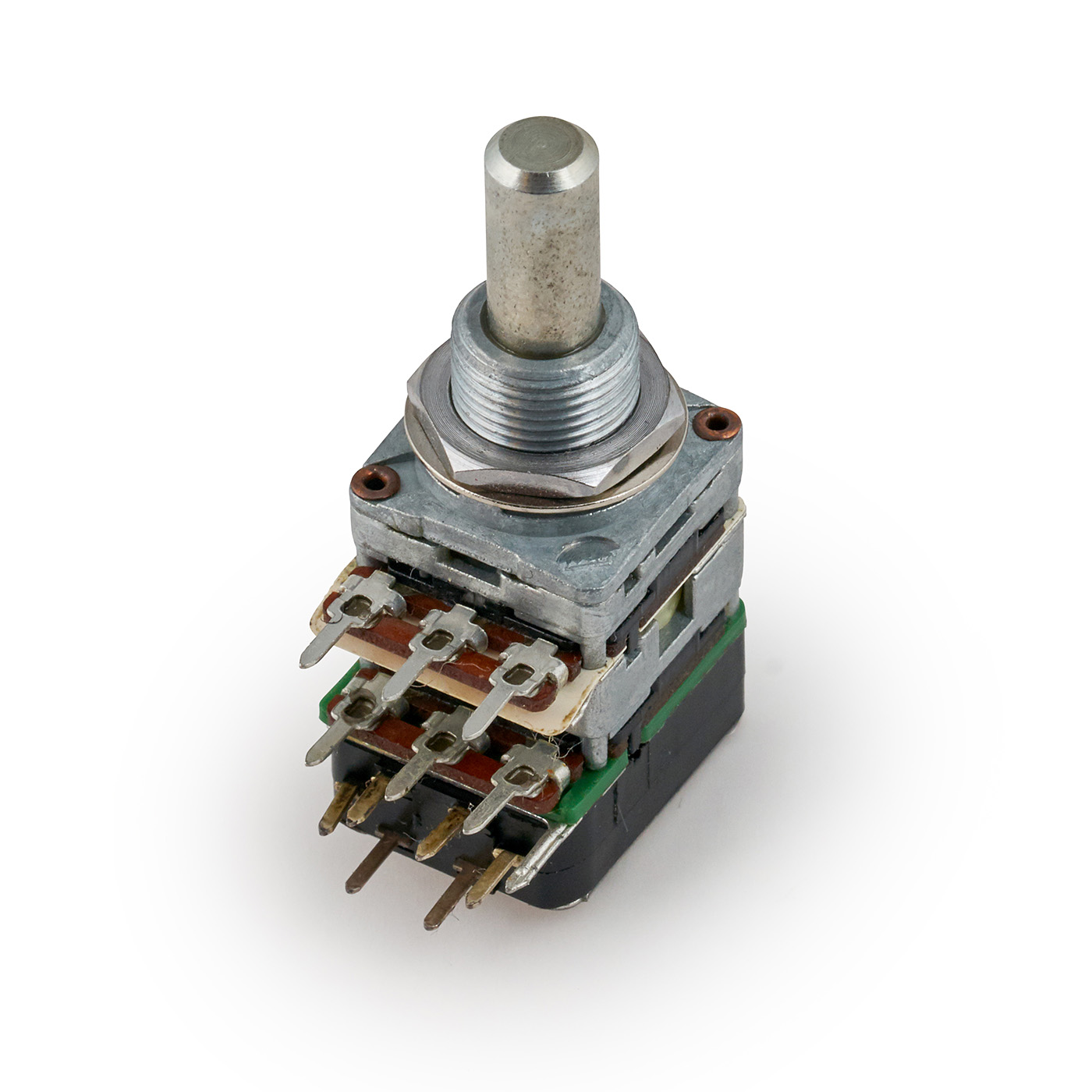

MEC Pickups Stereo Potentiometer, (A220K / A220K), Push/Pull

Potentiometer

stereo potentiometer with push/pull switch for versatile control.
single shaft design with solid construction for durability.
logarithmic resistance of 220 kOhm for both R1 and R2.
ideal for use as a tone control in active parametric EQs.
compact dimensions: 24 x 16 x 24 mm including terminals.

54⁸⁸ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

Shipping 8.00 €

Warranty 24 months

Returns 14 days

request details

MEC Pickups Stereo Potentiometer, (A220K / A220K), Push/Pull Add to cart: 54⁸⁸ €

- stereo potentiometer with push/pull switch
- single shaft
- R1 = A220K (resistance 220 kOhm, (A) logarithmic)
- R2 = A220K (resistance 220 kOhm, (A) logarithmic)
- suitable for use as a tone control for active parametric EQs
- On/On DPDT
- thread M10 x 0.75 mm
- mounting diameter 10 mm
- thread length 9 mm
- solid shaft
- shaft length 11 mm
- shaft diameter 6 mm
- includes nut and washer
- dimensions incl. terminals (L x W x H) 24 x 16 x 24 mm

- Note: The return and refund policy does not apply to electronic components if their wires have been cut or soldered, if they show signs of use, if they have already been installed, or if other damage affecting the condition of the goods is present.
