MEC Pickups Mono Stacked Potentiometer, B100K/cc / B100K/cc, Push/Pull

Name: MEC Pickups Mono Stacked Potentiometer, B100K/cc / B100K/cc, Push/Pull
Brand: MEC Pickups
SKU: M 84110
Price: 44.17 EUR
Availability: OutOfStock

Potentiometer

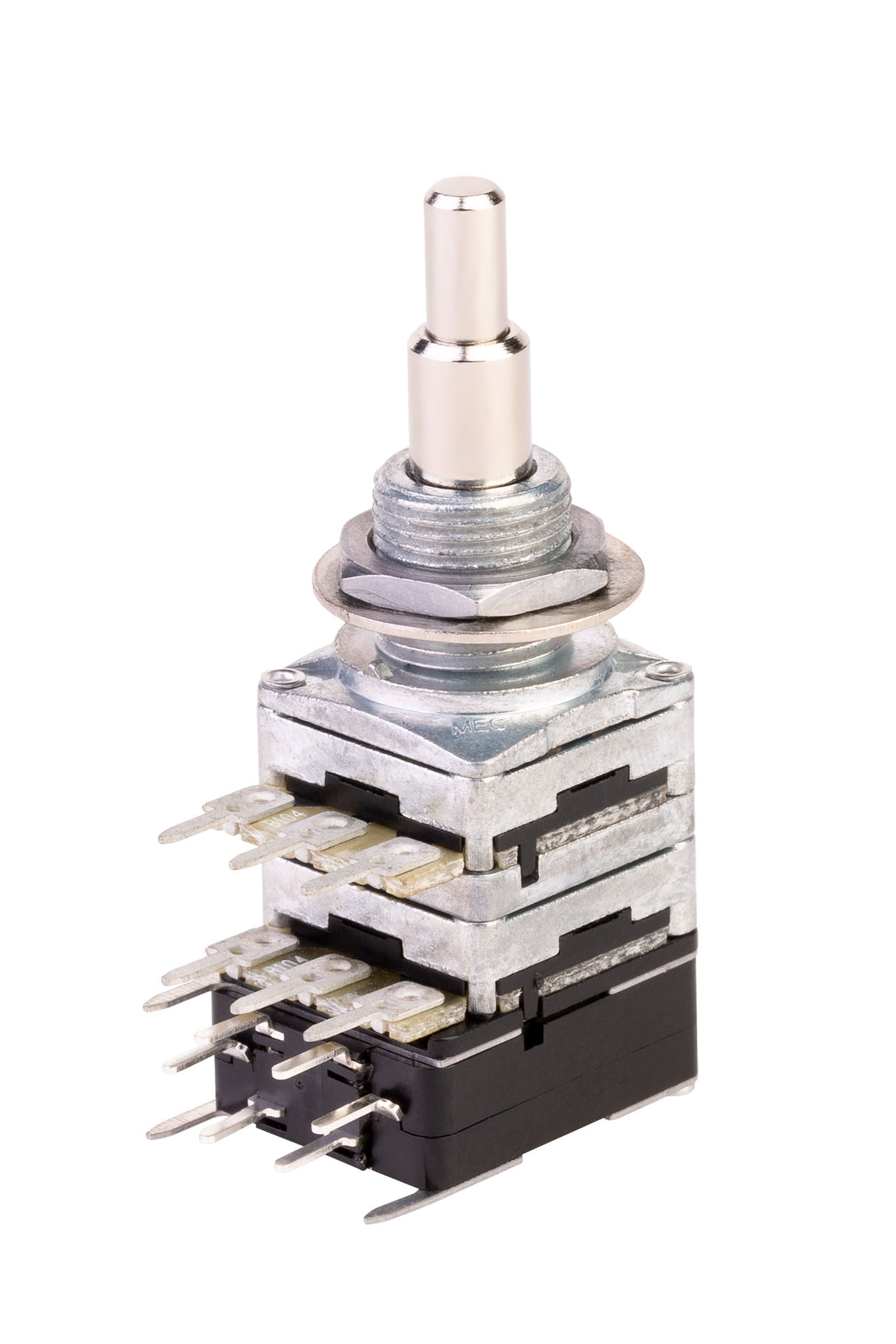

dual mono potentiometer with push/pull switch.
concentric shaft with solid construction.
r1 = B100K (100 kOhm, linear) for precise control.
suitable for volume and tone control in active pickups.
compact dimensions: 24 x 16 x 24 mm including terminals.

44¹⁷ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

Shipping 8.00 €

Warranty 24 months

Returns 14 days

request details

MEC Pickups Mono Stacked Potentiometer, B100K/cc / B100K/cc, Push/Pull Add to cart: 44¹⁷ €

- dual mono potentiometer with push/pull switch
- concentric shaft
- R1 = B100K (100 kOhm, (B) linear)
- On/On DPDT
- suitable for use as volume and tone control for active pickups
- thread M10 x 0.75 mm
- mounting diameter 10 mm
- thread length 9 mm
- solid shaft
- shaft length 14 mm (internal), 7 mm (external)
- shaft diameter 4 mm (internal), 6 mm (external)
- includes nut and washer
- dimensions incl. terminals (L x W x H) 24 x 16 x 24 mm
