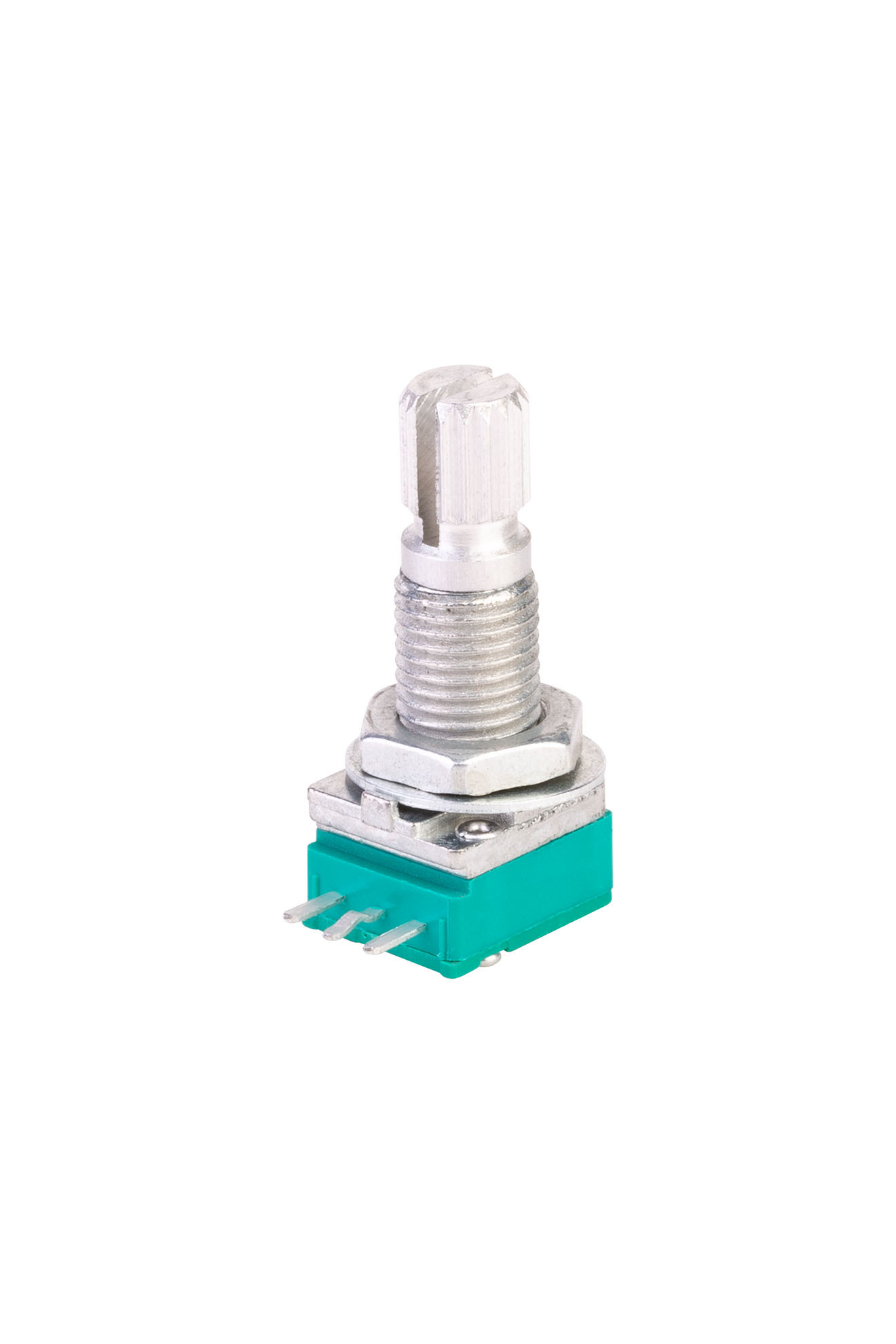

MEC Pickups Mono Mini Potentiometer, 15C250K, Split Shaft, Lefthand

Mini Potentiometer

mono potentiometer with a single shaft design.
c250K resistance (250 kOhm, reverse logarithmic).
ideal for tone control in passive pickups.
m7 thread and 7 mm mounting diameter.
includes nut and washer for easy installation.

Variants:

12²⁵ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

Shipping 8.00 €

Warranty 24 months

Returns 14 days

request details

MEC Pickups Mono Mini Potentiometer, 15C250K, Split Shaft, Lefthand Add to cart: 12²⁵ €

- mono potentiometer
- single shaft
- C250K (resistance 250 kOhm, (C) reverse logarithmic)
- suitable for tone control for passive pickups
- M7 thread
- mounting diameter 7 mm
- thread length 10 mm
- split knurled shaft
- shaft length 9 mm
- shaft diameter 6 mm
- includes nut and washer
- dimensions incl. terminals (L x W x H) 11 x 9 x 7 mm

- Note: The return and refund policy does not apply to electronic components if their wires have been cut or soldered, if they show signs of use, if they have already been installed, or if other damages affecting the condition of the goods are present.

Downloadable Files:

Schematic Drawing M_82250_M_82251_M_82253_Wiring_DE.pdf

Product code: M 82253

Unit of sale: piece

Specifications:
