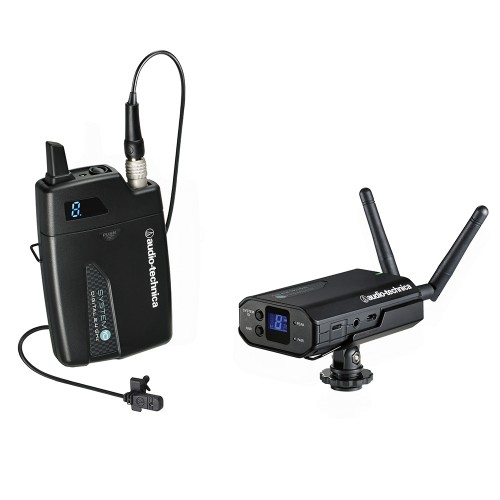

Audio-Technica ATW-1701P System 10, digital wireless system for photo/video cameras, includes a camera-mountable receiver, a pocket transmitter, and AT829cW lavalier microphone. System 10 wireless systems operate in the 2.4 GHz frequency band, being immune to TV or DTV interference.
Specifically designed to be mounted on camcorders, easy to use for cameramen and film crews, the ATW-R1700 receiver is lightweight and features an independent channel for headphone monitoring, with the option to select the output signal mode, balanced/unbalanced, via the 3.5 mm mini jack socket. It is powered by a rechargeable internal Li-Ion battery. The system has LED battery power indicators for both the receiver and transmitter and can be used with pocket transmitters or dynamic wireless microphones from the System 10 series. It is available in 3 variants. The system also includes a camera mounting adapter.
System specifications
Operating frequency: 2.4 GHz ISM
Rejection: >109 dB
Total harmonic distortion: <0.05%
Operating range: 30 m (100'), 60 m (200') in open operating environment without signal interference
Operating temperature: 0 to +40 degrees Celsius (battery usage time may be reduced at low temperatures)
Sampling rate: 20 Hz to 20 kHz
Receiver specifications
Reception type: Diversity (frequency/time/space)
Maximum output level: mini jack 3.5 mm, TRS balanced: +6dBV Dual mono, unbalanced: 0 dBV
Power supply: 100-240V AC (50/60 Hz), 5V DC 0.5A via external power supply, with USB type connector.
Battery: Internal rechargeable Li-Ion 3.7V
Battery life: 12 hours, depending on environmental conditions. Battery recharge time of 4 hours and 30 minutes.
Dimensions: 56.0 mm W / 91.4 mm H / 127.8 mm D.
Weight 105 g
Included accessories: 2 antennas, camera mounting adapter, AC power supply (USB type), USB cable, stereo cable with 3.5 mm mini jack plug.
Pocket transmitter specifications
RF output power: 10 mW
AT input connector: 4-pin locking connector (Pin 1: GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +9V)
I'm on my third project using this wireless lavalier set. Pros: good signal even through walls, I haven't tested the range, but at about 30m it worked perfectly through walls. The battery in the receiver lasts a long time. Monitoring the transmitter's batteries from the receiver is very useful. Cons: Occasionally (every few minutes) there's a short 'click' sound, possibly when it switches to the backup frequency, quite unpleasant. Background noise is present, but within normal limits... I don't know if it's generated by the microphone or the transmitter, receiver. The transmitter seems a bit large, but you can live with that. Conclusion, an okay product, I recommend it for amateur and semi-professional users. I do NOT recommend it for professionals and those with very serious projects because of that short 'click' noise that appears every few minutes and is annoying; it's not a cheap system and I believe this issue shouldn't exist at this budget.
