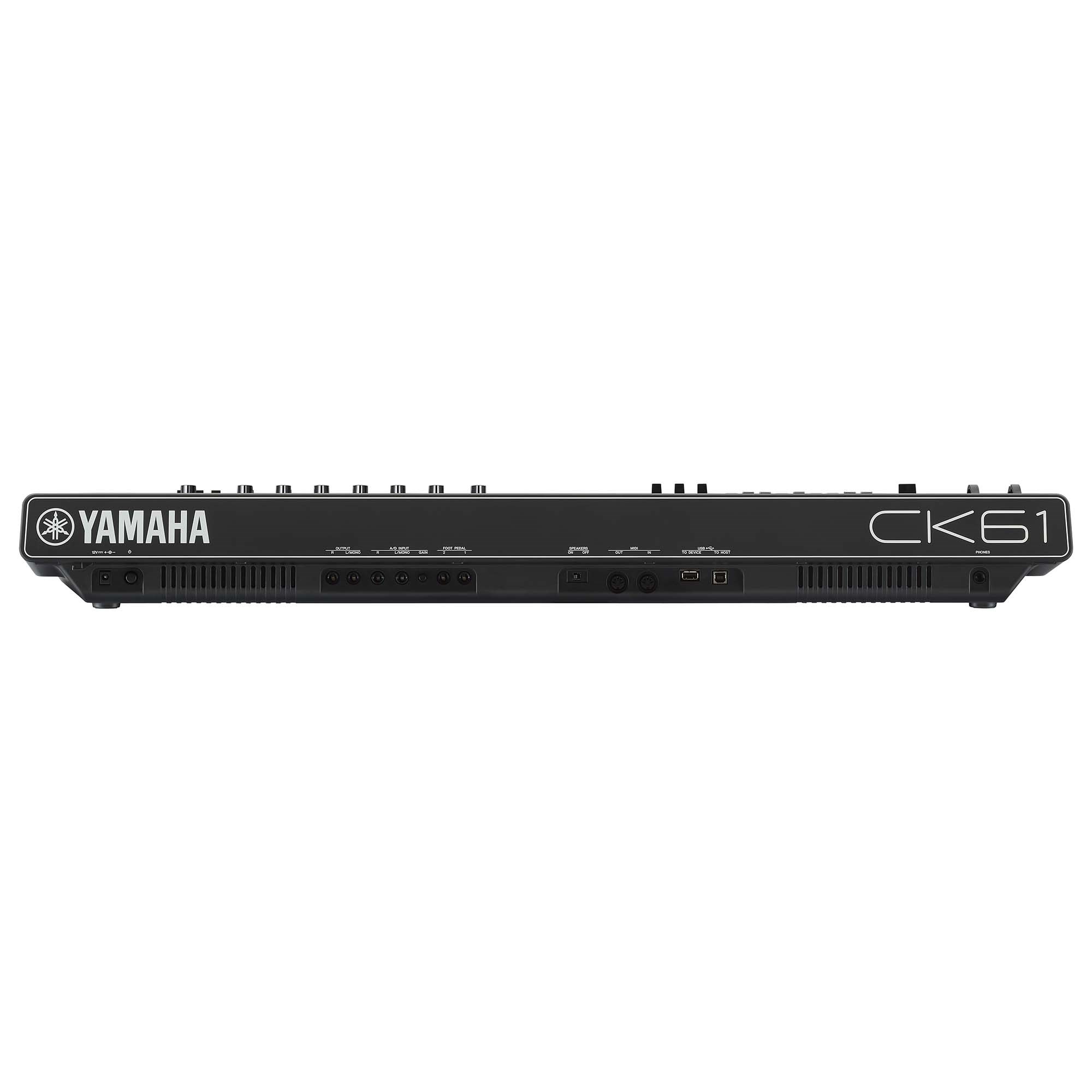

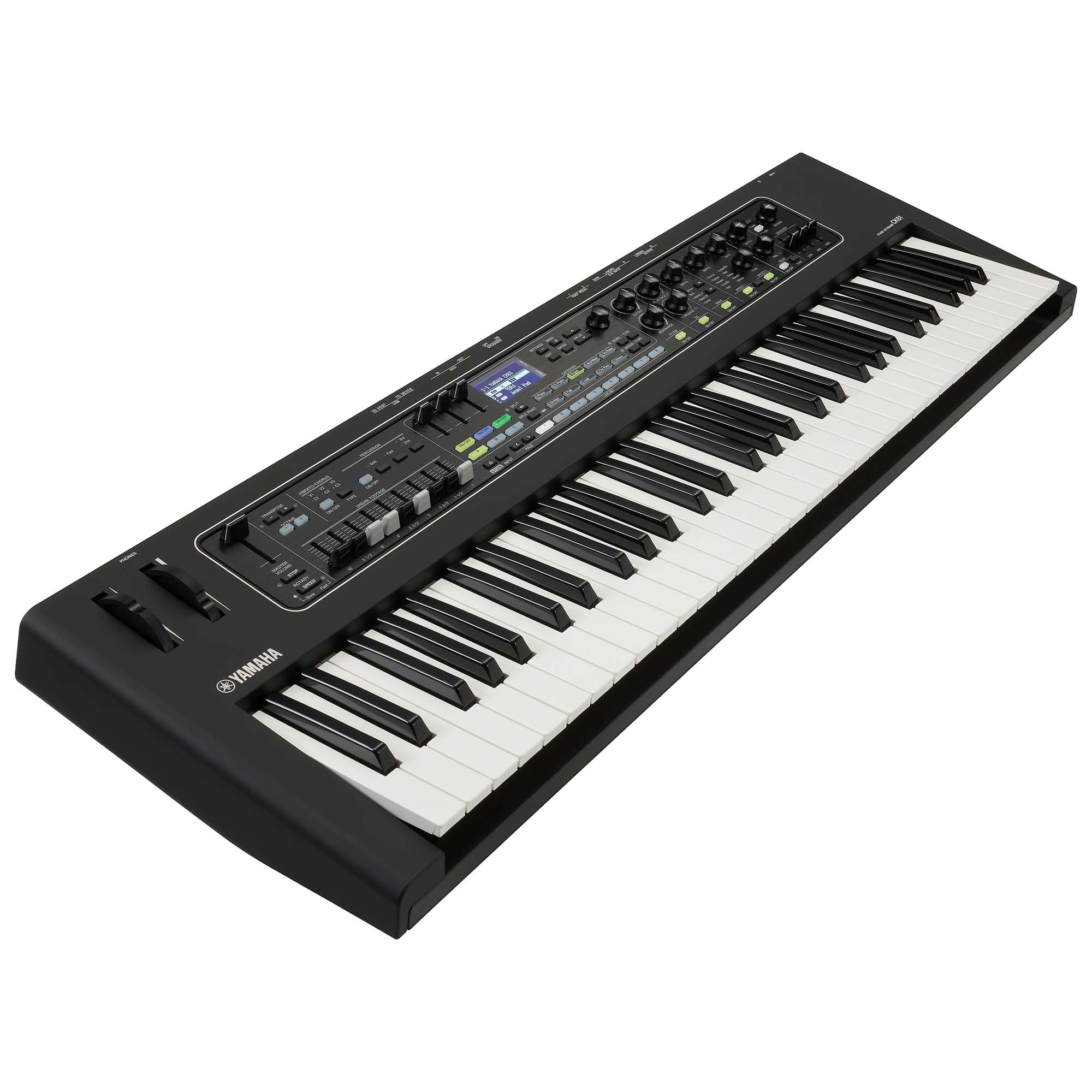

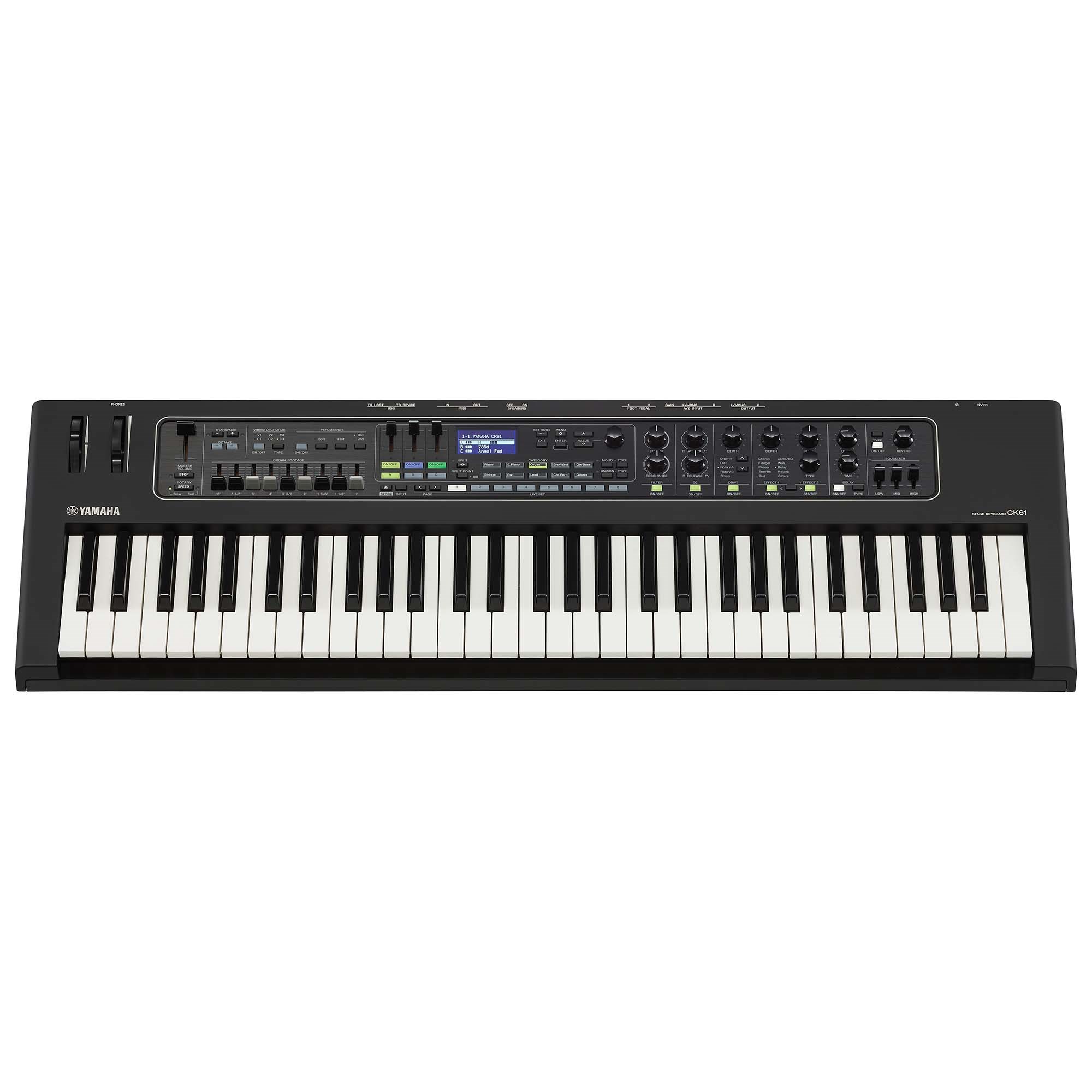

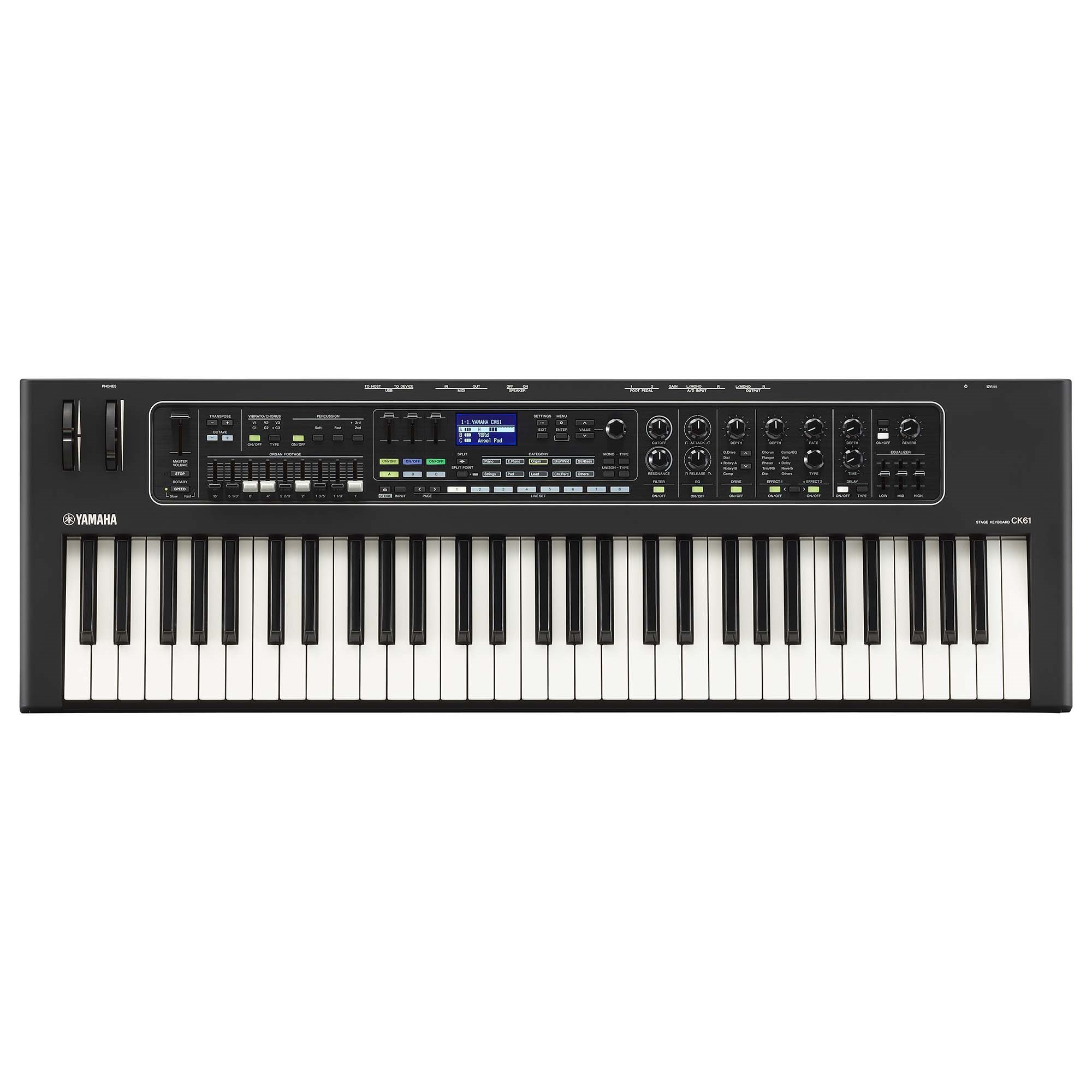

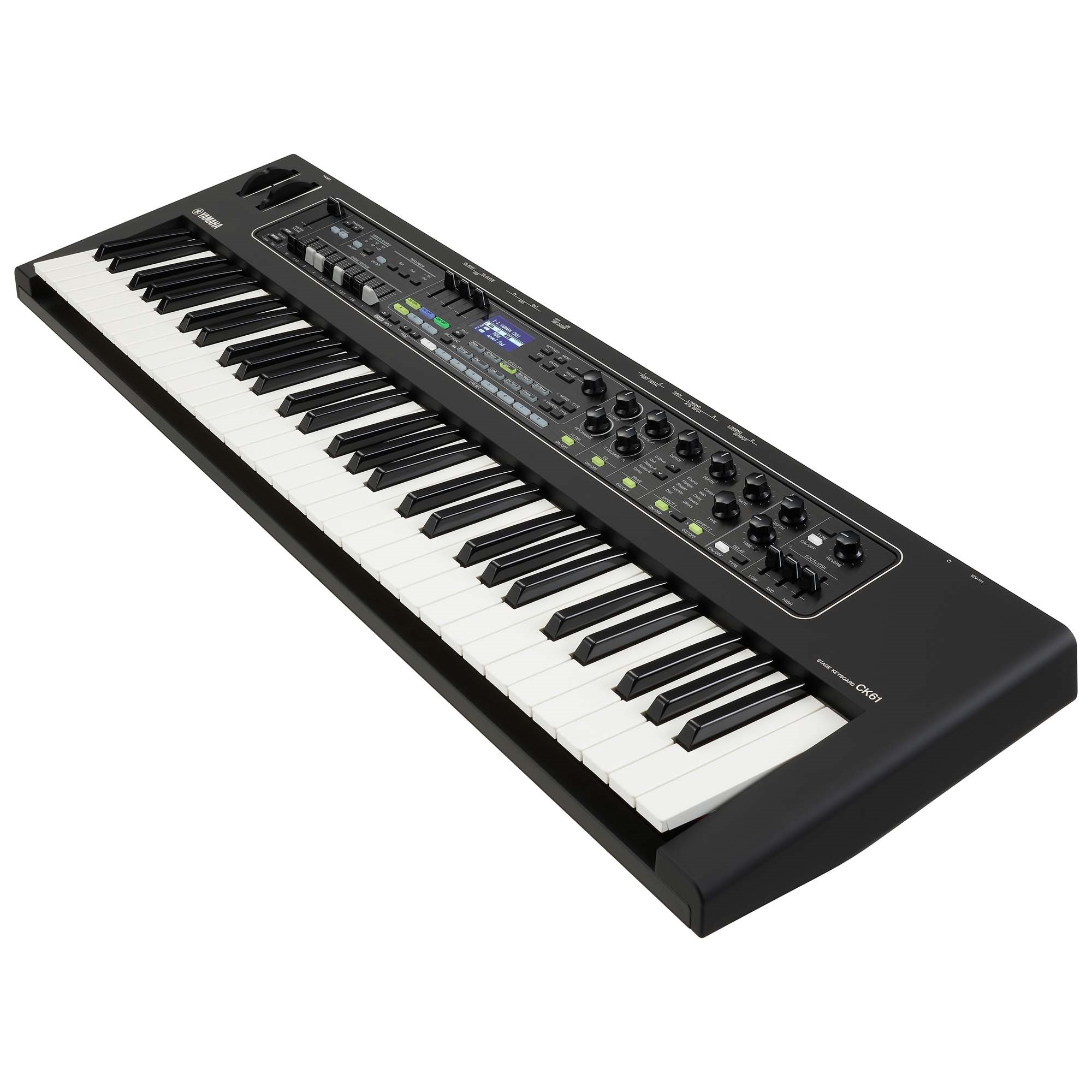

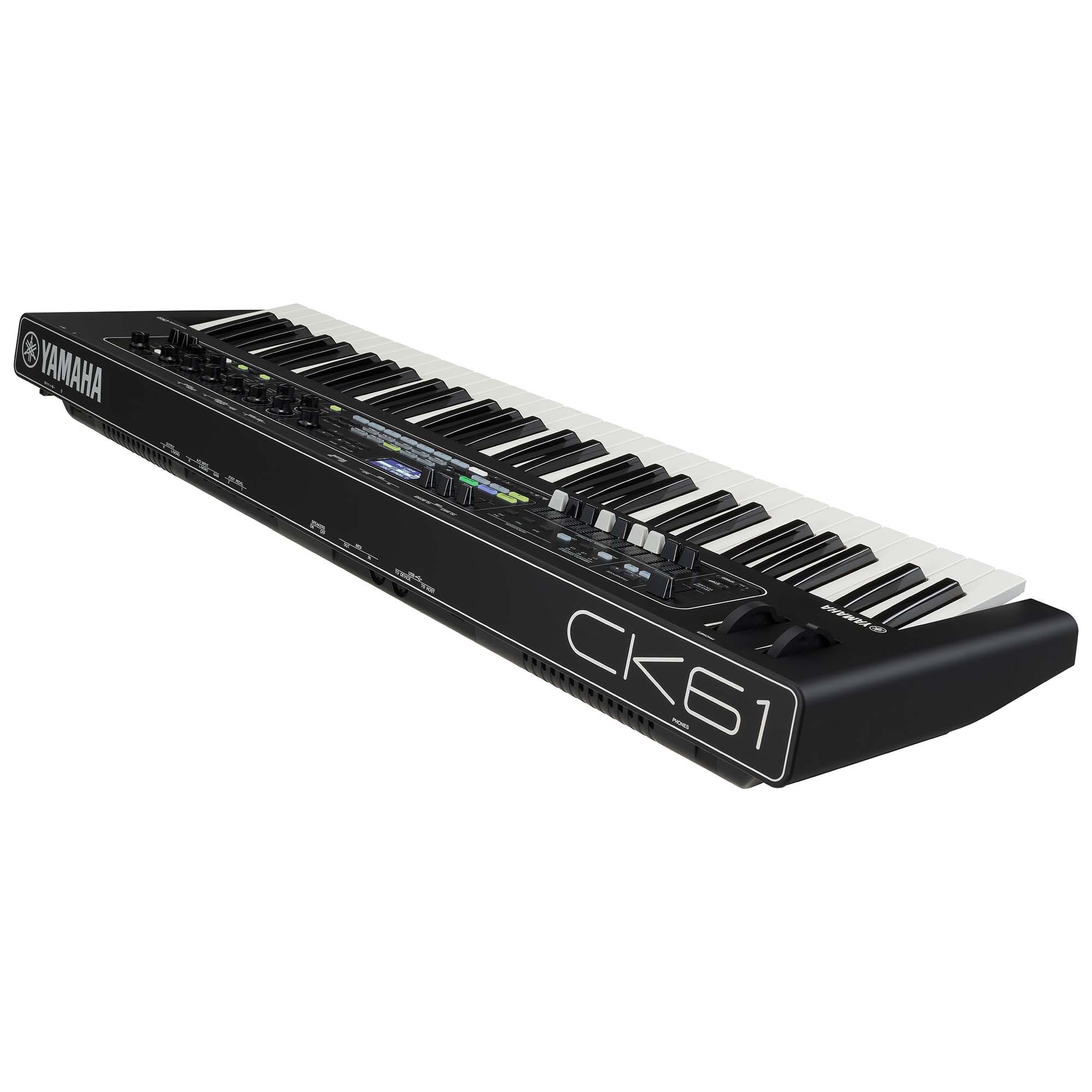

Yamaha CK61 Stage

Yamaha CK61 Stage - With authentic piano, organ, and synthesizer sounds, intuitive controls, and built-in speakers, the CK61 performs successfully both on stage and in the studio.

Technical Specifications:

• Keyboard:
  • Number of keys: 61
  • Type: FSB (initial touch)
• Sound generation technology: AWM2, AWM (Organ Flutes)
• Polyphony: 128
• Number of Live Set sounds: 160 (Preset Live Set sounds: 80)
• Number of voices: 363
• Effects:
  • Insert effect: Drive System 1 (5 types) / Effect Systems 2 (1: 36 types, 2: 36 types)
  • Delay: 4 types
  • Reverb: 3 types
  • Master EQ: 3 bands
• Connectivity:
  • Line output: [L/MONO]/[R] (6.3 mm, standard phone plugs, unbalanced)
  • A/D input: [L/MONO]/[R] (6.3 mm, standard phone plugs)
  • Headphones: 6.3 mm, standard stereo plug
  • Pedal: [1]/[2]
  • MIDI: MIDI [IN]/[OUT]
  • USB: To host / To device
• Bluetooth:
  • Bluetooth version: 4.1
  • Supported profile: A2DP
  • Compatible codec: SBC
  • Wireless output: Bluetooth class 2
  • Maximum communication distance: Approximately 10 m
  • Radio frequency (operational frequency): 2401–2481 MHz
  • Maximum output power (EIRP): 4 dBm
  • Modulation type: FHSS
• Functions:
  • USB audio interface:
    • Sampling frequency = 44.1 kHz
    • Input: 2 channels (1 stereo channel)
    • Output: 2 channels (1 stereo channel)
• Audio system:
  • Amplifiers: 6 W × 2
  • Speakers: (12 cm × 6 cm) × 2, switchable ON/OFF
• Display: LCD Full Dot (128 x 64 dots)
• Included accessories: AC adapter, User manual
• Power supply:
  • Adapters: PA-150B or a Yamaha recommended equivalent (Output: DC 12V, 1.5 A)
  • Batteries: Up to eight rechargeable alkaline batteries (LR6) or size “AA” Ni-MH
• Power consumption: 11 W (when using the AC adapter PA-150B)
• Dimensions (L x H x D): 910 x 109 x 291 mm
• Weight: 5.6 kg (without batteries)
• Package dimensions: 1.100 x 240 x 410 mm
