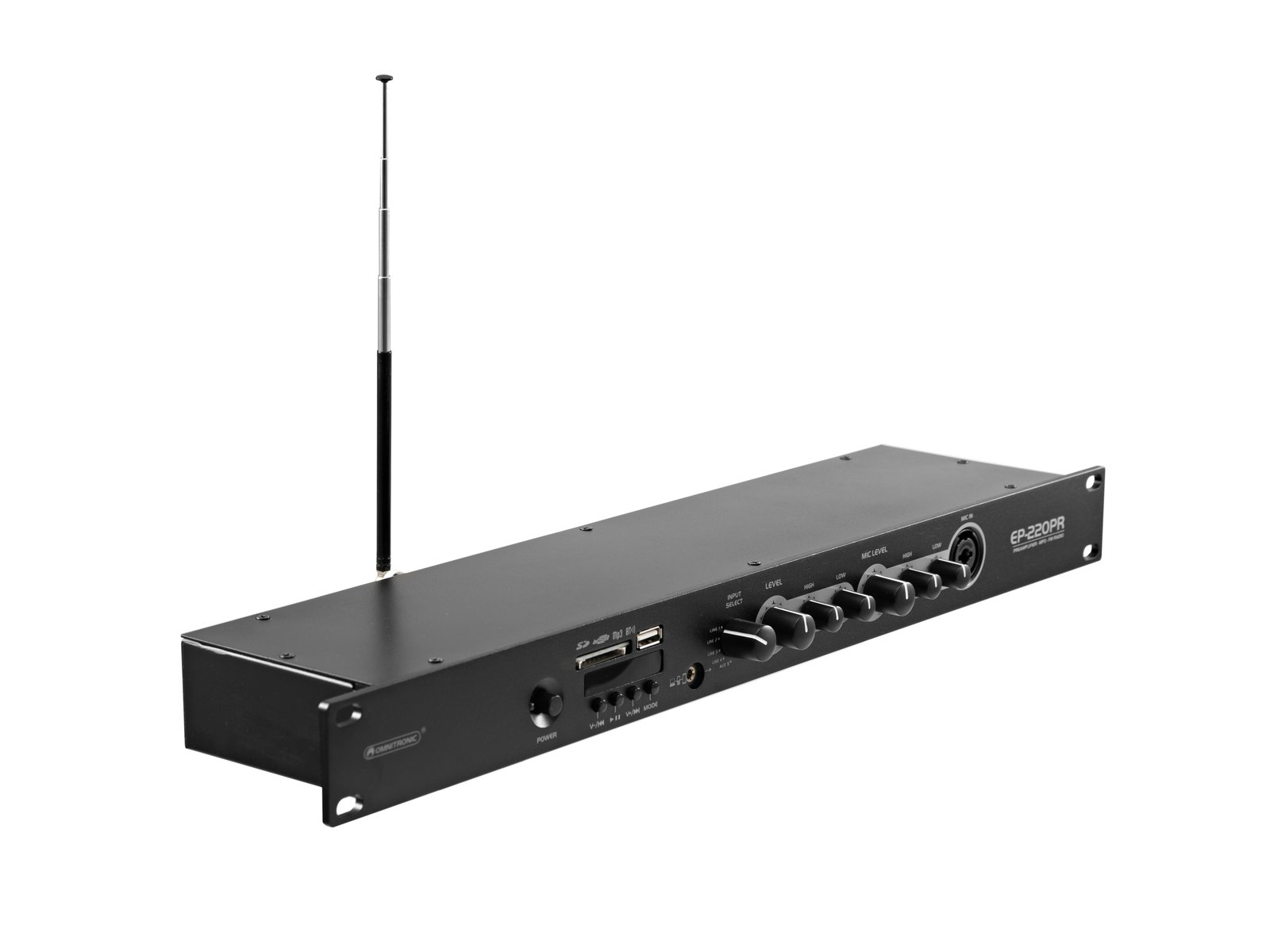

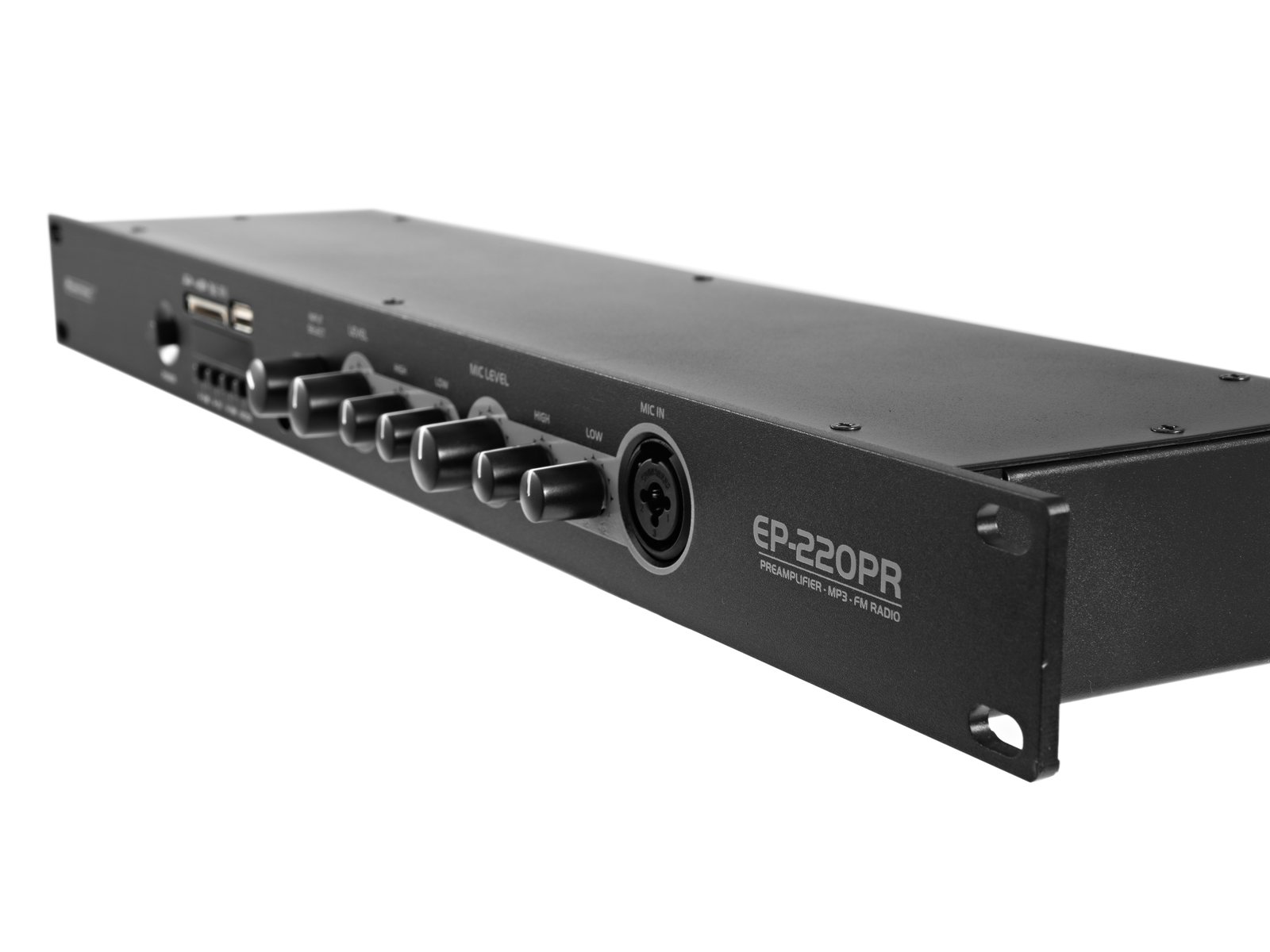

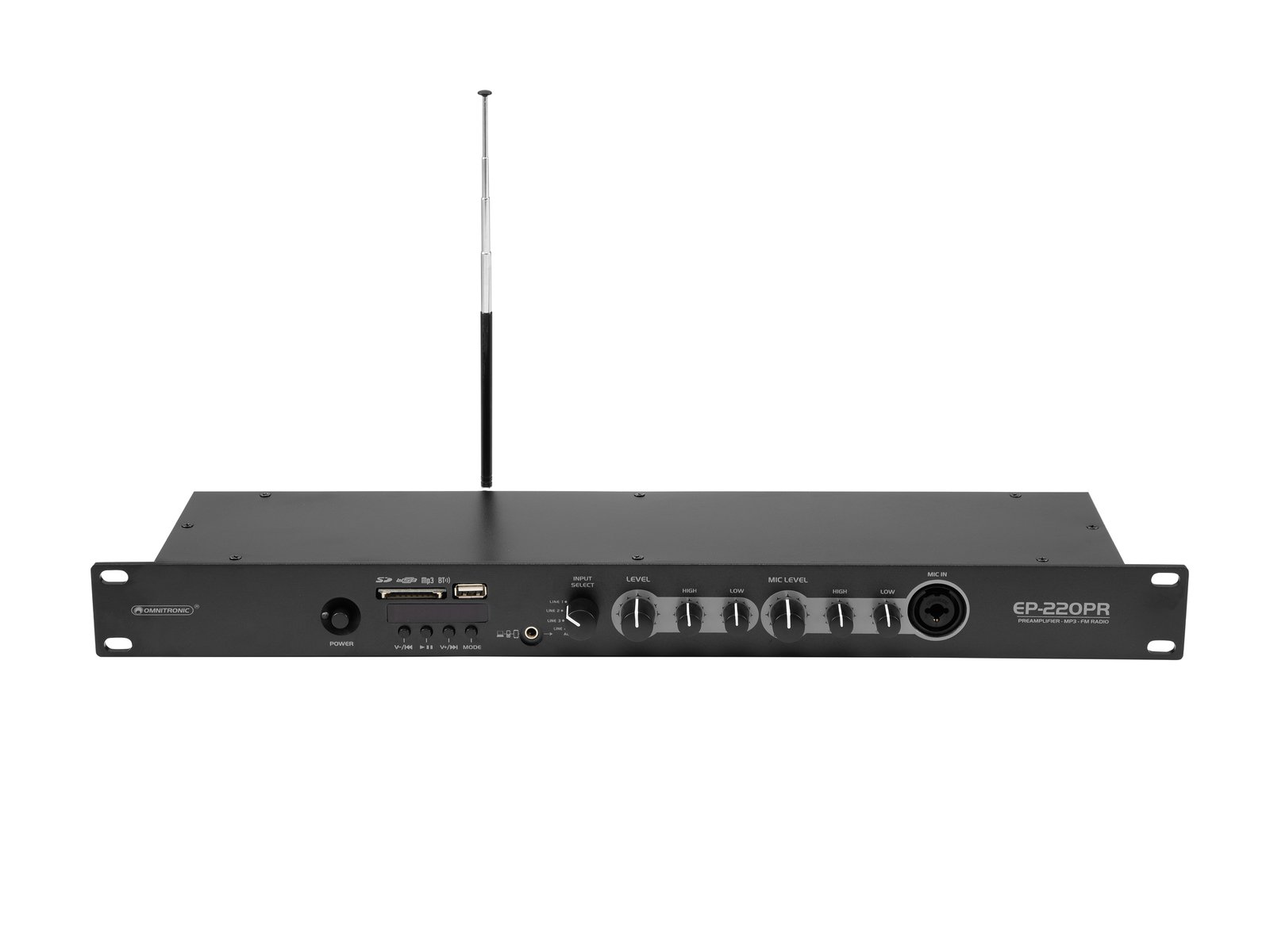

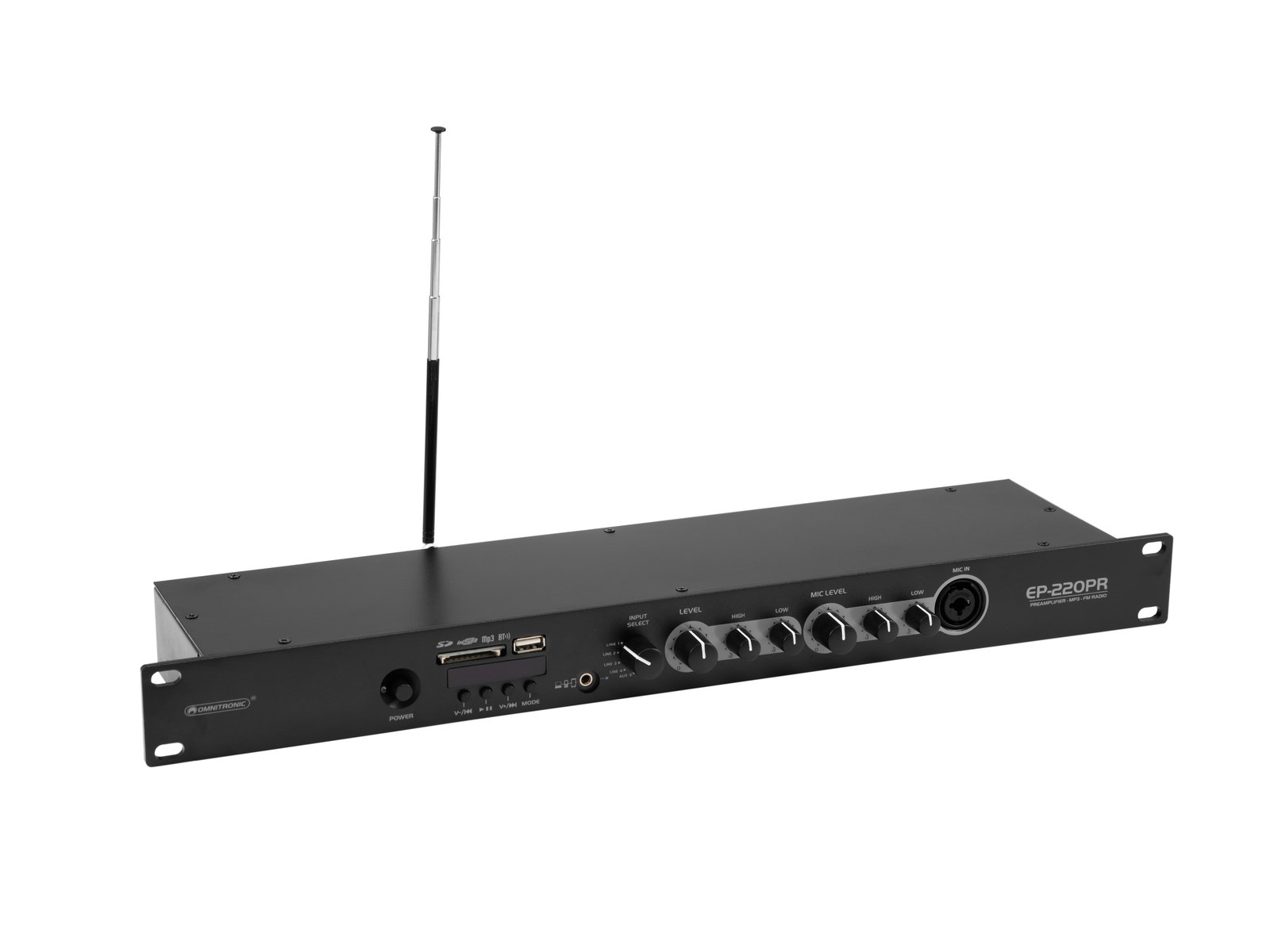

Omnitronic EP-220PR Preamplifier with MP3 Player and FM Radio

Player and radio

universal 19" preamplifier with built-in audio player and Bluetooth.
5 stereo line inputs and 1 microphone input with controls.
sD card slot and USB port for versatile audio playback.
ideal for trade shows, sports centres, restaurants, and hotels.
compact 1U rack installation with a power supply of 115/230 V AC.

Variants:

113⁵³ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

584 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

Omnitronic EP-220PR Preamplifier with MP3 Player and FM Radio Add to cart: 113⁵³ €

Universal 19" preamplifier with audio player, Bluetooth and FM radio

Built-in audio player with Bluetooth receiver
Integrated Bluetooth audio streaming
SD card slot and USB port
5 stereo line inputs

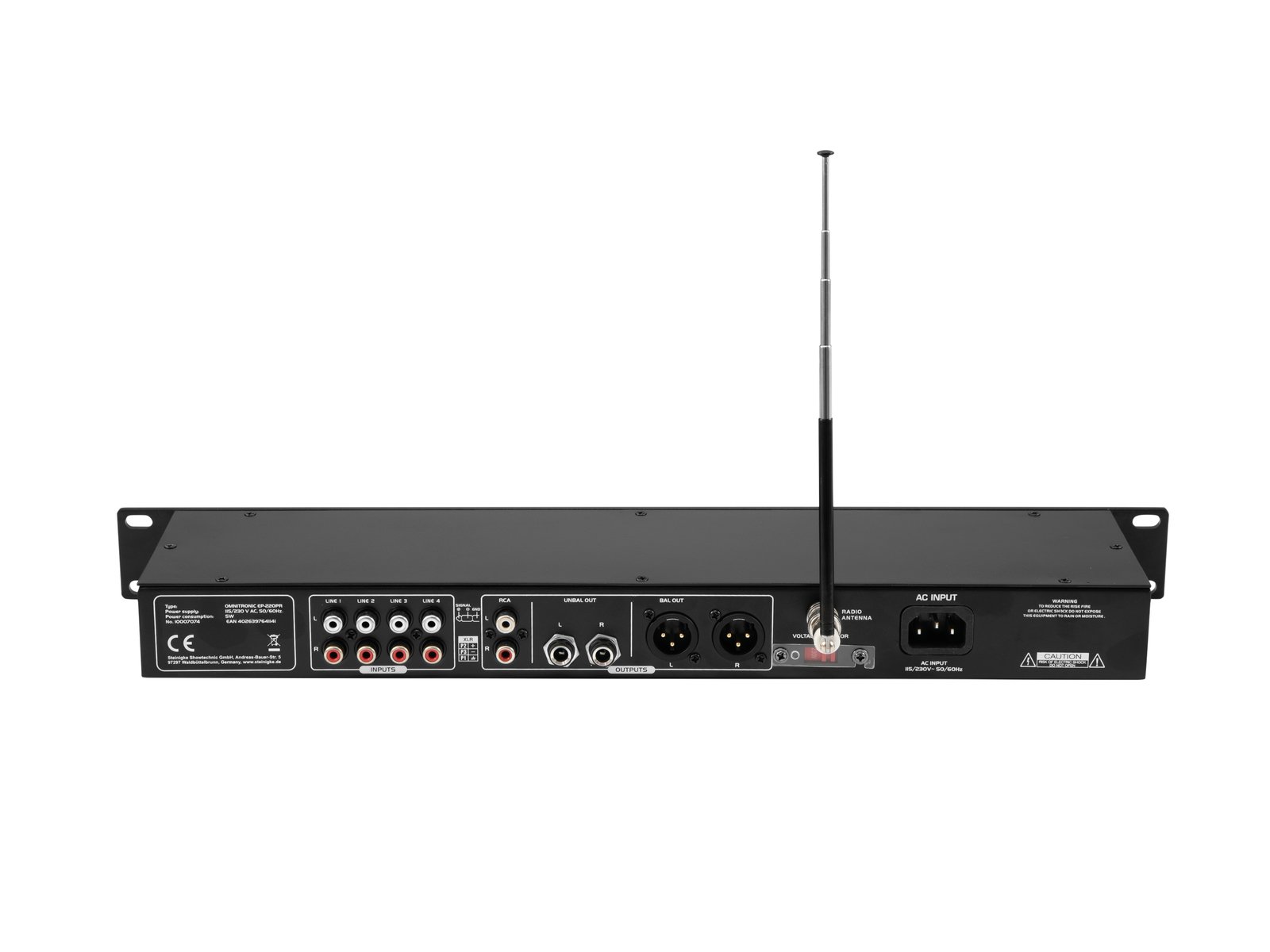

4 RCA L/R connectors on the back panel and a 3.5 mm connector on the front panel
Audio source selector
Controls for volume, bass and treble
1 microphone input with volume, bass and treble controls on the front panel
3 stereo master outputs
(19") 48.3 cm rack installation 1 U
Suitable for applications such as: trade show and shop setups; sports centres/gymnasiums; restaurants, bars and hotels

Package contents

1 x amplifier, 1 x user manual, 1 x declaration of conformity, 1 x power cable, 1 x antenna

Power supply:	115/230 V AC, 50/60 Hz
Power consumption:	5 W
Power connection:	Mains input via IEC (M) connector power cable mounting version with safety plug (supplied)
Frequency range:	20 - 20000 Hz
S/N ratio:	>100 dB
THD:	<0.1 % at 1 kHz
Impedance:	Input: 10 kOhm, unbalanced. Input: 20 kOhm, balanced.
Connections:	Input: line via mounting version 4 x RCA (F). Input: microphone via 1 x combined XLR/6.35 mm (F) jack with 3 pins (mounting version) Input: line via mounting version 1 x 3.5 mm jack (stereo). Output: line via 1 x RCA stereo Output: line via 1 x 3-pin XLR Output: line via 1 x 6.3 mm jack mounting version (stereo).
Input channels:	5 x stereo via RCA jack or player, channel control via rotary selector 1 x mono via XLR or jack, channel control via rotary selector
Equaliser:	Master: 1 x stereo with 2-band tone control
Input sensitivity:	1 V
Housing design:	(19") 48.3 cm rack installation 1 U
Dimensions:	Width: 48.3 cm Depth: 12.8 cm Height: 4.45 cm
Weight:	1.87 kg
Cassette player
Cassette player:	USB + SD + Bluetooth + FM Radio,
Music format:	WAV; MP3; WMA
Carrier frequency:	2.4 GHz
Available storage media:	USB devices/SD cards max. 32 GB (FAT 16/32)
Range:	Bluetooth: range up to 10 m
