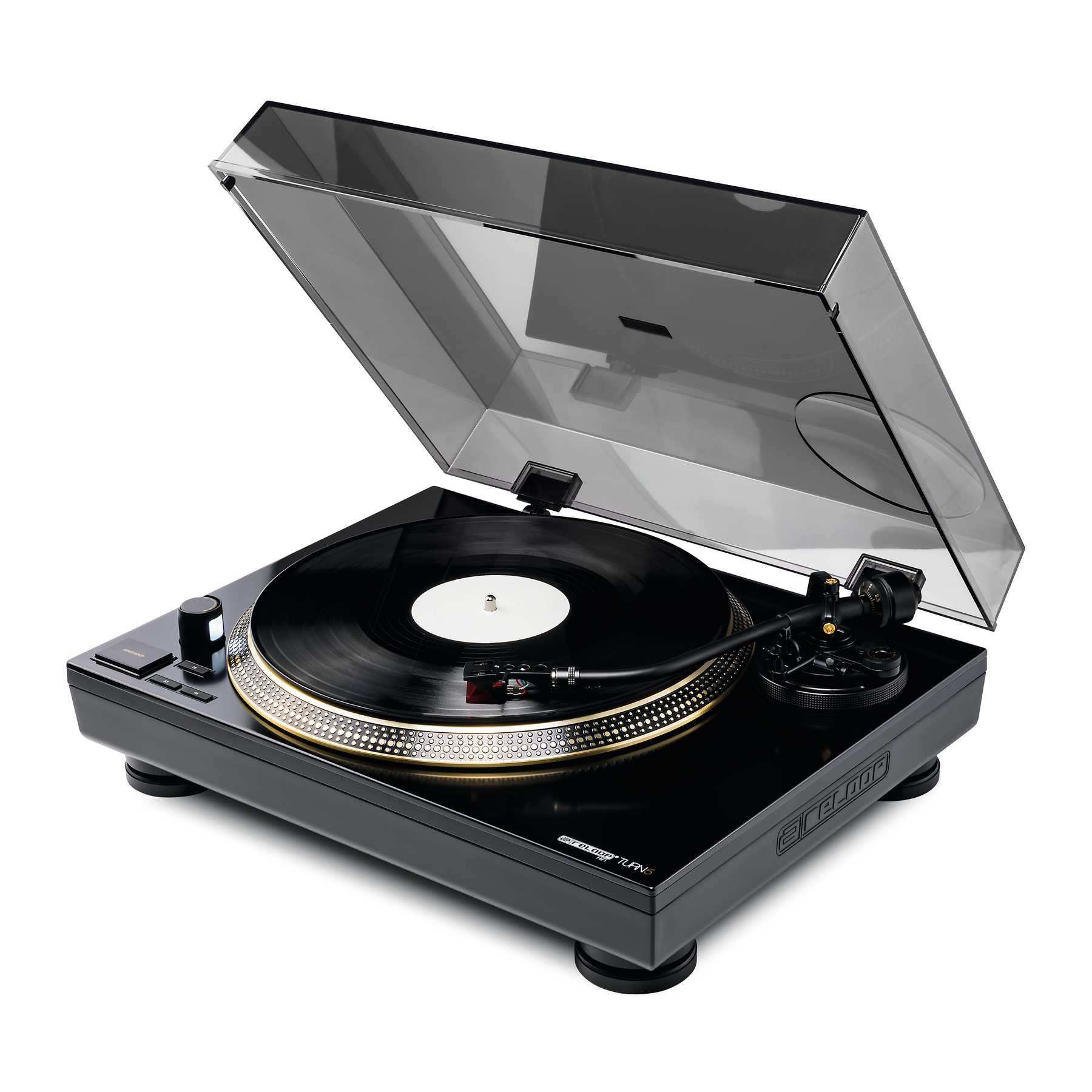

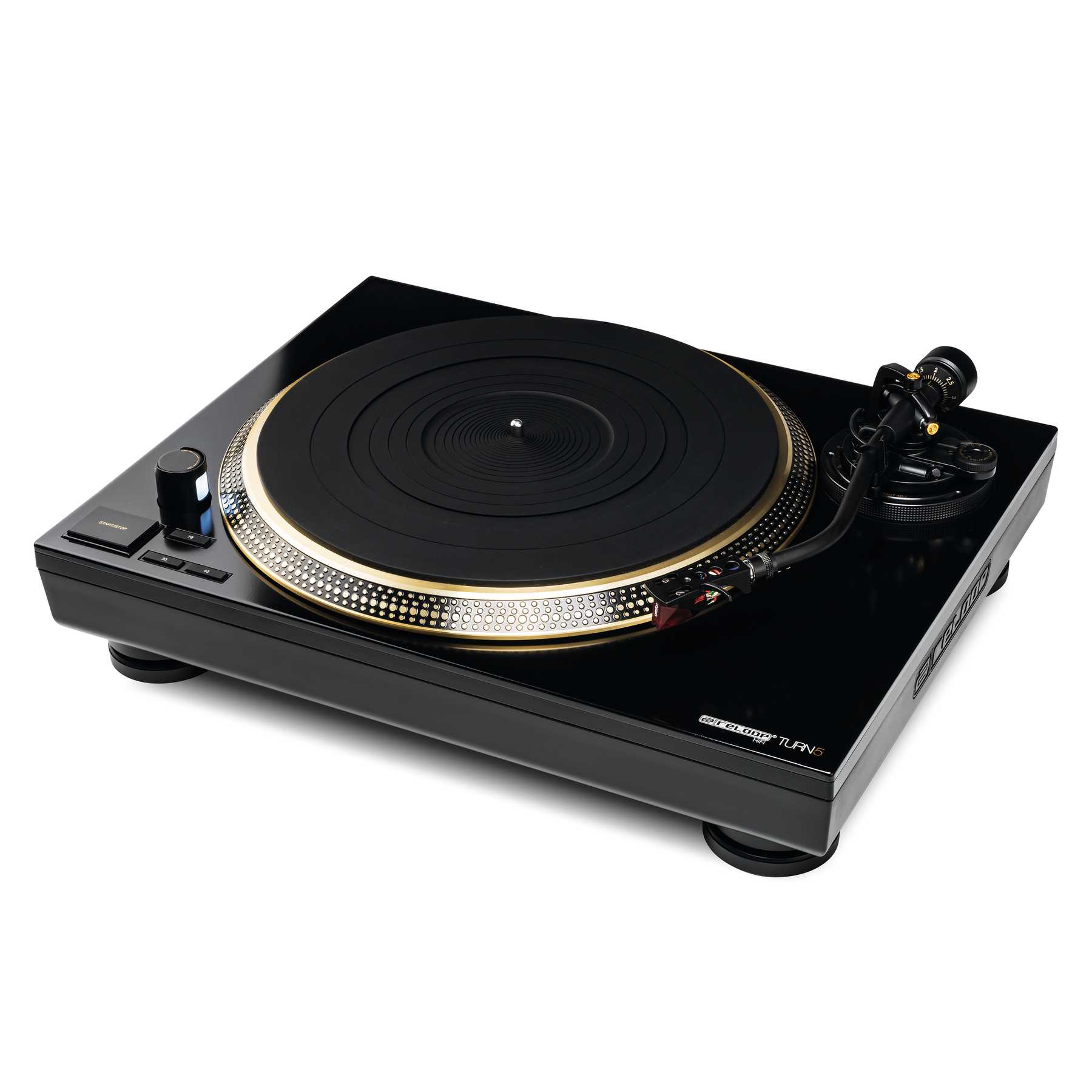

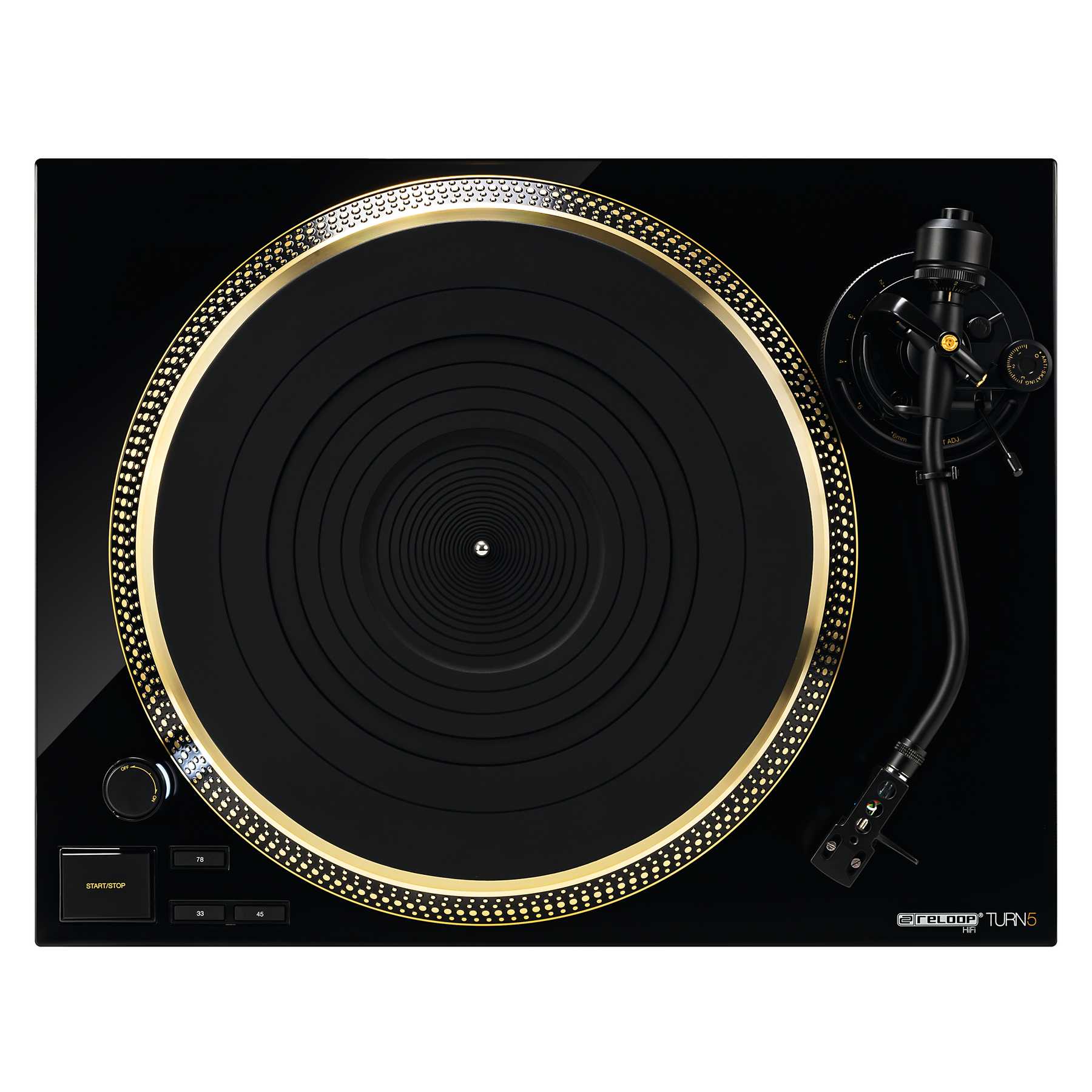

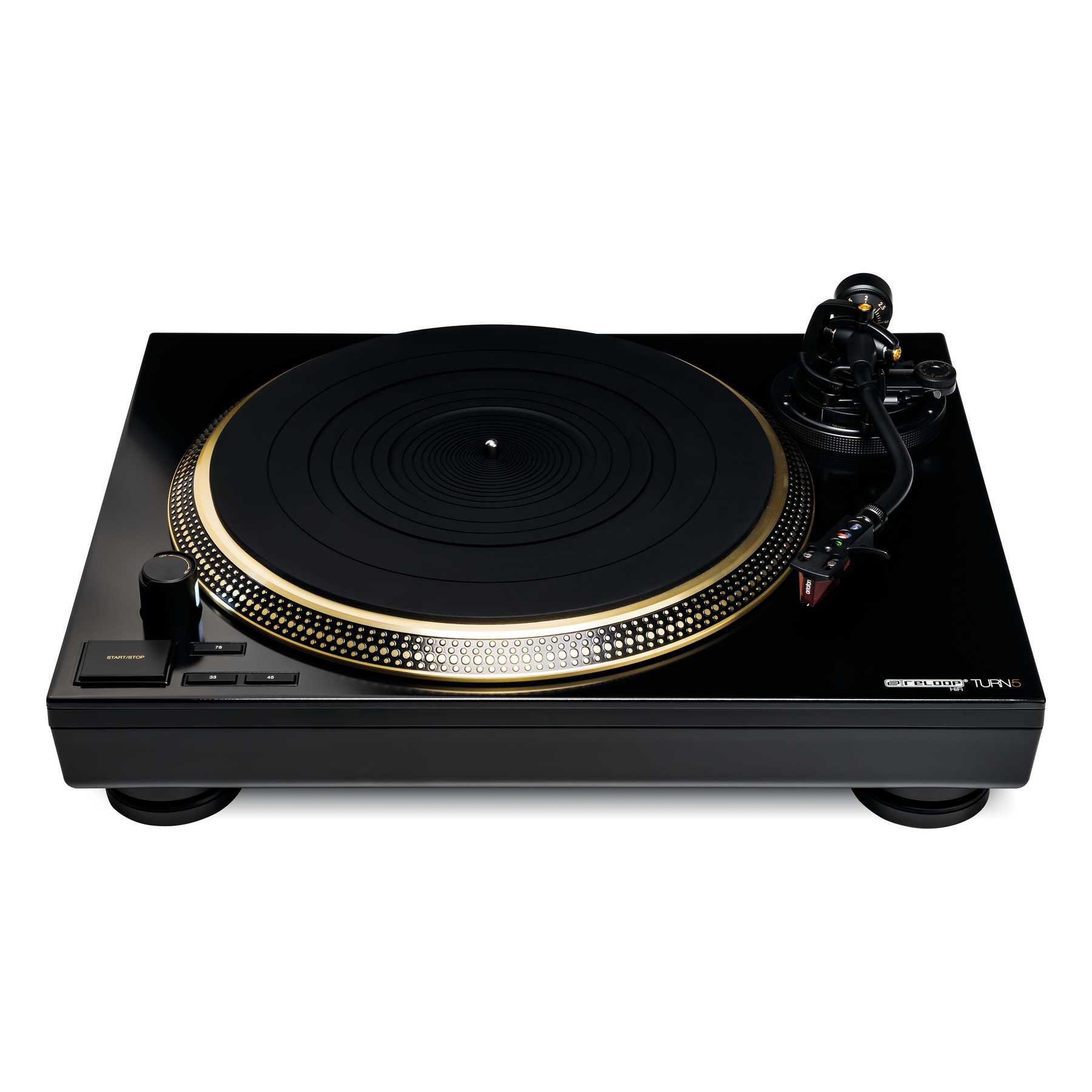

With the model TURN 5, Reloop HiFi launches a turntable with direct drive controlled by quartz, designed for the most demanding audio requirements. Using its accumulated experience, Reloop has developed a new HiFi turntable that, through its technical refinement, ranks among the most high-performing in its class.
The DC brushless direct drive motor provides strong torque and extremely stable rotation. The TURN 5 is constructed using precision manufacturing techniques through pressure casting. The rubber damping base eliminates unwanted resonances, while the special 5 mm rubber mat reduces vibrations for exceptional sound reproduction.

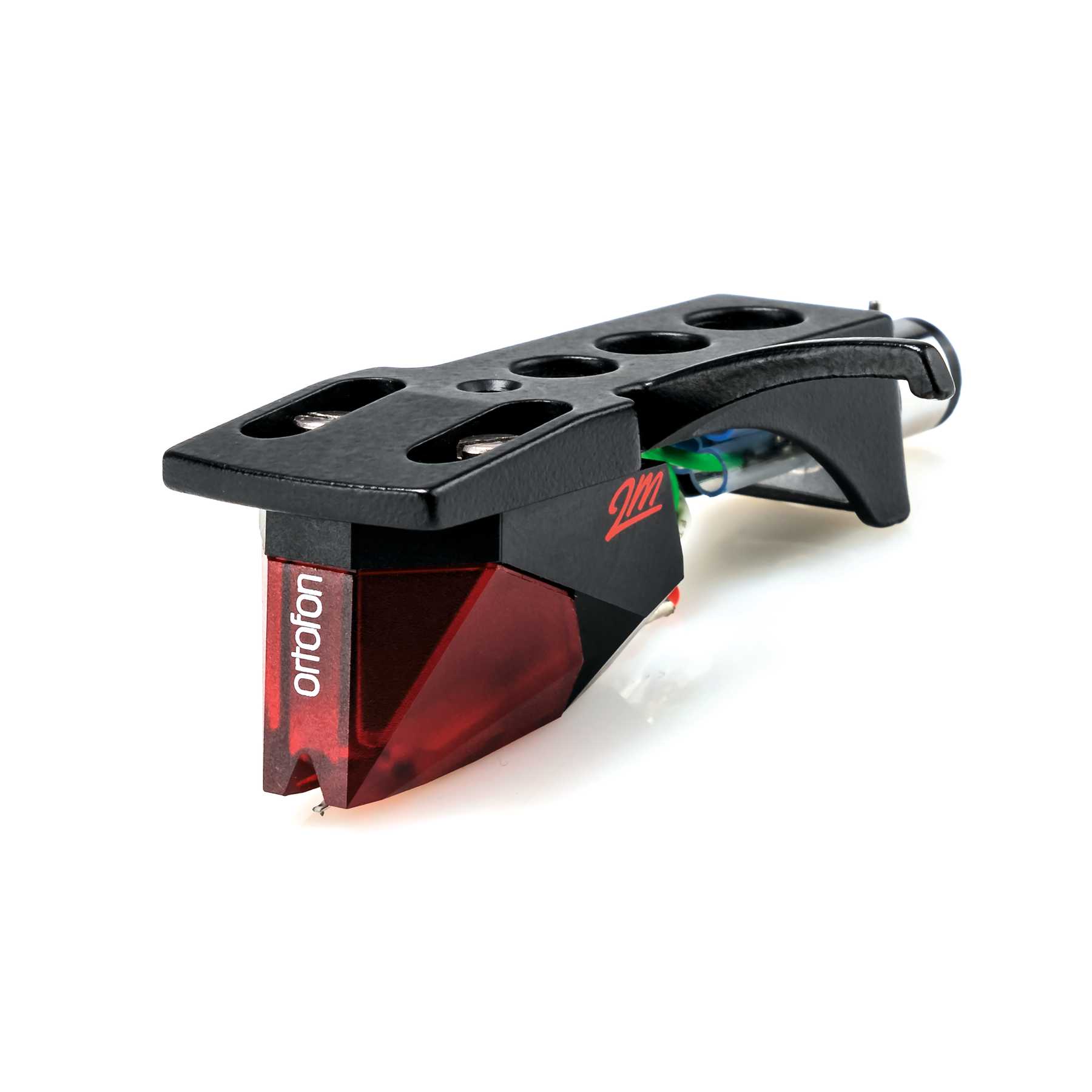

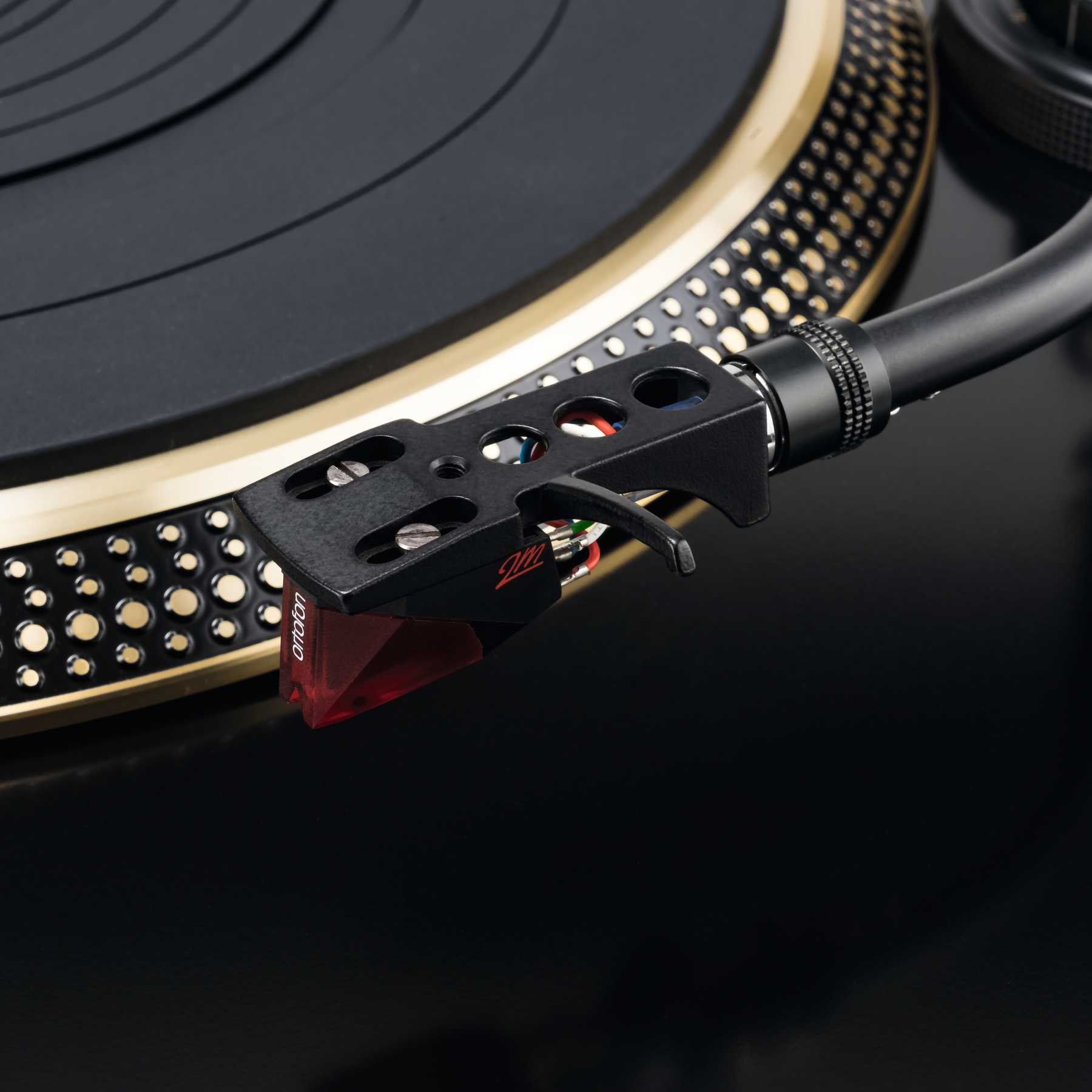

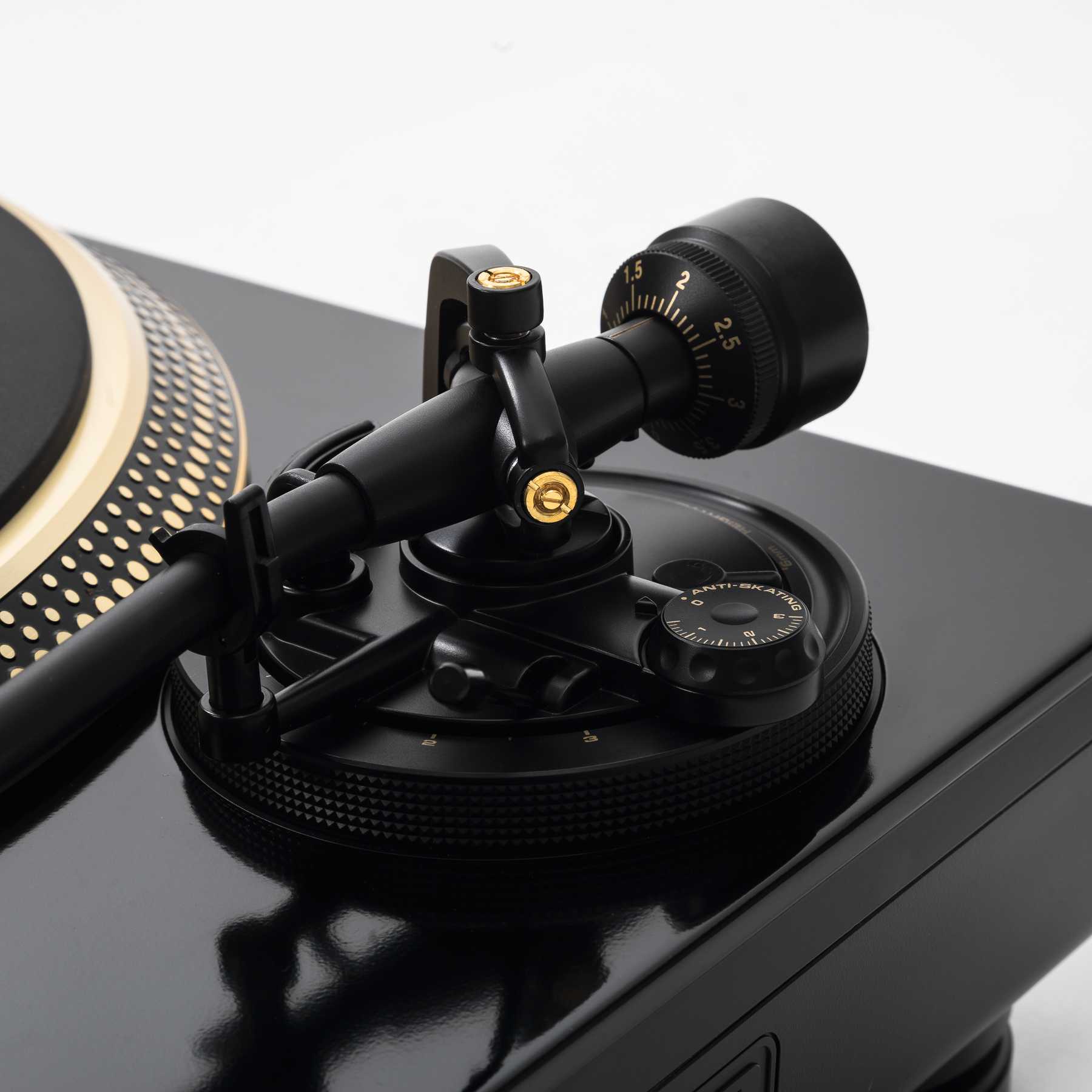

The TURN 5 utilises a static balanced S-shaped arm. It features a hydraulic lift, anti-skating adjustment, and height adjustment with VTA lock, for optimal performance and precise reproduction of recordings. The included Ortofon 2M Red cartridge is already mounted on the headshell and offers impressive sound quality due to its elliptical stylus. The universal SME mechanism allows for quick headshell changes, and the included counterweight supports a wide range of cartridges, including heavier models.

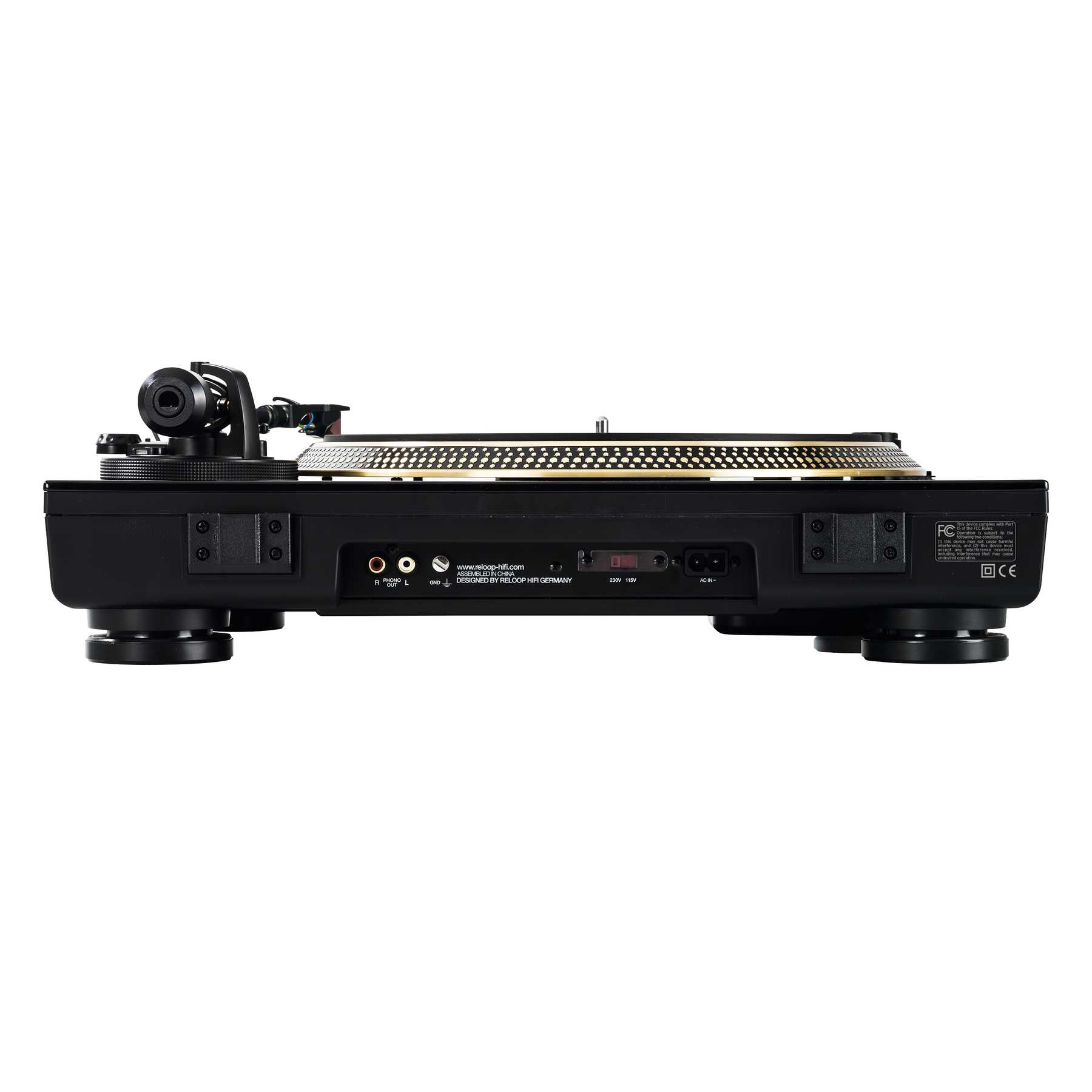

At the back, there are gold-plated RCA phono outputs and a separate grounding connection to reduce interference. The terminals are recessed for additional protection, and the RCA and power cables are detachable for easy replacement. The chassis is built on a solid metal structure, equipped with anti-vibration feet to reduce noise and provide efficient isolation. The combination of materials offers additional rigidity to the entire construction.
Quartz-controlled HiFi turntable with high torque
DC brushless direct drive motor
Aluminium platter cast under pressure and precisely machined for perfectly balanced rotation
Damping rubber layer and special 5 mm mat for optimal resonance control
Static balanced S-shaped arm with VTA adjustment
Anti-skating adjustment for precise tracking
Pre-installed Ortofon 2M Red cartridge
Integrated selector for speeds 33, 45, and 78 RPM
Universal SME connector for high flexibility
High-quality phono outputs with separate grounding
Gold-plated audio connections resistant to corrosion
Recessed terminals for additional protection
Solid metal construction and shock-resistant feet
Counterweight compatible with various types of cartridges
Elegant design with glossy black finish and anodised gold platter
The package includes:
turntable
Dust cover
2 hinges for the cover
Counterweight
PHONO RCA cable with grounding wire
AC power cable
Rubber mat
Ortofon 2M Red cartridge and headshell
Specifications:
Pickup section:
Type: manual turntable with direct drive
Drive: direct drive controlled by quartz and high torque
Motor: DC brushless, 16 poles, 3 phases
Speeds: 33 1/3, 45, and 78 RPM
Starting torque: 4500 g/cm
Start/change speed time: under 0.2 seconds
Wow & Flutter: 0.01% WRMS
Signal-to-noise ratio: over 55 dB (DIN-B)
Braking system: electronic
Recommended disc weight: 800 g
Platter:
Material: pressure cast aluminium
Diameter: 332 mm
Weight: approx. 1.8 kg (including mat)
Arm:
Type: universal S-shaped, static balanced
Effective length: 230 mm
Overhang: 15 mm
Tracking error: under 3°
Offset angle: 22°
Tracking force: 0–4 g
VTA adjustment: 0–6 mm
Compatible cartridge weight: 3.5–8.5 g (13–18 g with headshell)
Anti-skating adjustment: 0–3 g
Effective arm weight: 20 g (with headshell)
Connections:
1x gold-plated PHONO output
1x GND terminal for grounding
General:
Power supply: AC 115/230 V, 60/50 Hz (EU/US), AC 100 V (JP)
