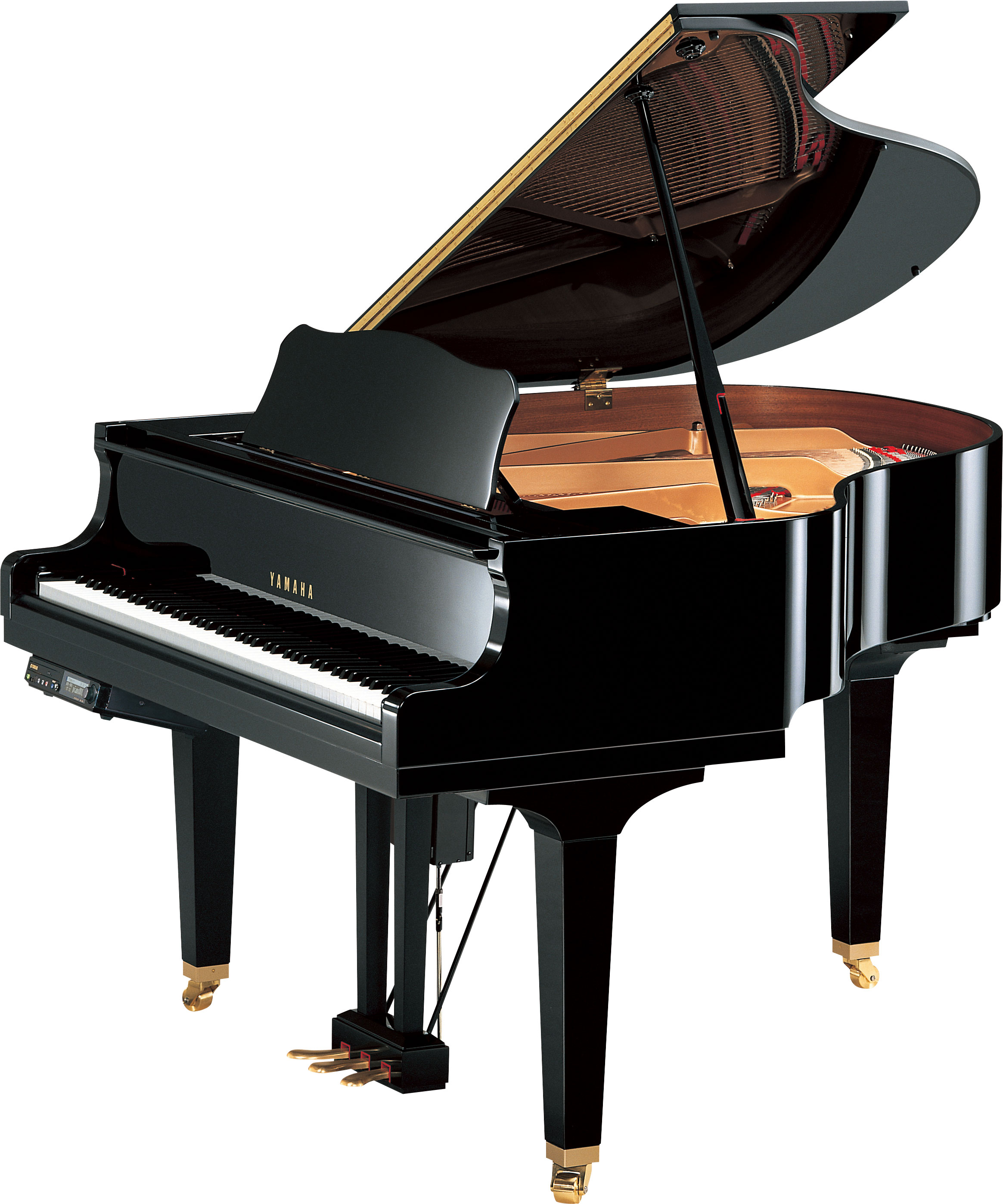

Yamaha Disklavier GB1 K E3, acoustic piano with synthesis extension for MIDI playback, hybrid acoustic system (acoustic piano + speakers), auto-play function (moving keys).
The piano contains 400 playable songs. There is no need to acquire special music files: the instrument can be used immediately after installation.
The playback volume is adjustable: even though it is an acoustic piano, the audible volume can be adjusted in subtle nuances.
DisklavierRadio: by connecting the instrument to the internet, you can play songs performed "live" from a special internet radio station. The station includes 11 different channels.
Disklavier E3 helps you create your own music
ergonomic interface with an optimal number of control means
integrated amplification system: each speaker is positioned to perfectly blend with the piano's own sound
display with enhanced clarity for easy reading even from a distance
Preserve your musical memories
easy recording, sufficient storage space for hundreds of hours of playing
USB stick connection
play along with CD: accompanying your favourite band, Disklavier allows you to record all key and pedal presses in MIDI data format stored in internal memory, so that during playback the performed piece perfectly synchronises with the official CD recording.
Control via iPhone, iPod Touch, iPad
Through a special app created by Yamaha, you can control the entire piano: select the storage medium, start/stop playing, change tempo or transpose the scale, start a new recording, connect to Disklavier Radio, adjust the volume, and much more.
finish: glossy black
dimensions:
width: 146cm
height: 99cm
depth: 151cm
weight: 295kg
control interface
keyboard
88 keys
white keys coated with acrylic resin
black keys coated with phenolic resin
pedals: sustain, sostenuto, shift
sensors/actuation:
key sensors: contactless optical fibre sensors for all 88 keys (recording key position, velocity of press, velocity of release)
pedal sensors:
for sustain and shift: optical system for incremental motion detection
sostenuto pedal: binary detection (on/off)
key and pedal actuation: servo actuator with solenoids controlled by DSP
Cabinet
lid with 2 positions and safety lock
key lid: lock in position and damper upon closing

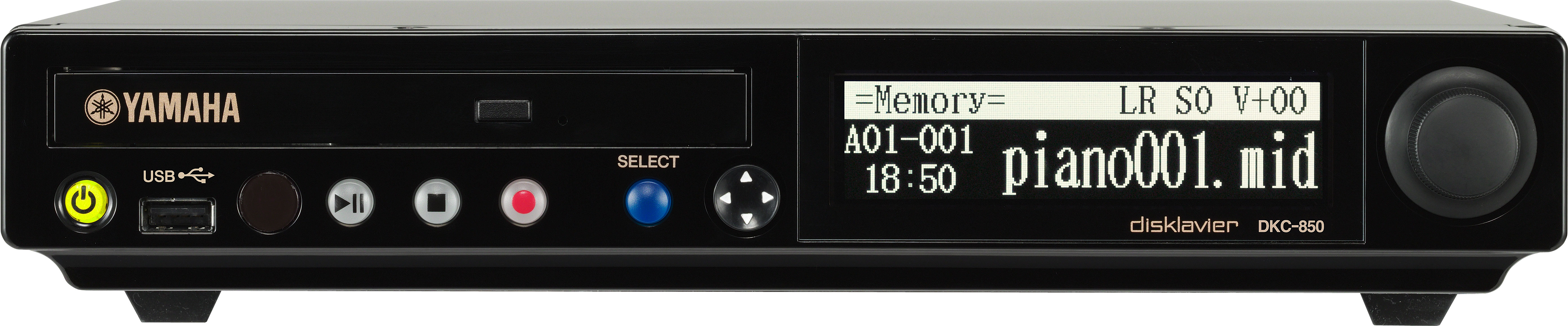

Control unit: 292x49x216mm, 2.7kg
Included speakers: 2x20W
Voices
AWM2 tone generator
32-notes polyphony
preset voices: 676
21 percussion kits
tuning for digital tones in 1-cent increments within a range of +/-50 cents. Initially tuned to A=440Hz
storage medium and connectivity
internal memory of 128MB
CD (audio, data)
USB flash memory (optional)
USB hard disk (optional, FAT32 format)
MIDI in/out
audio: MIDI in/out/omni, 2 headphone outputs
included accessories: control unit, mounting for control unit, monitoring speaker, speaker installation kit, speaker cable, PianoSoft CD, manual
