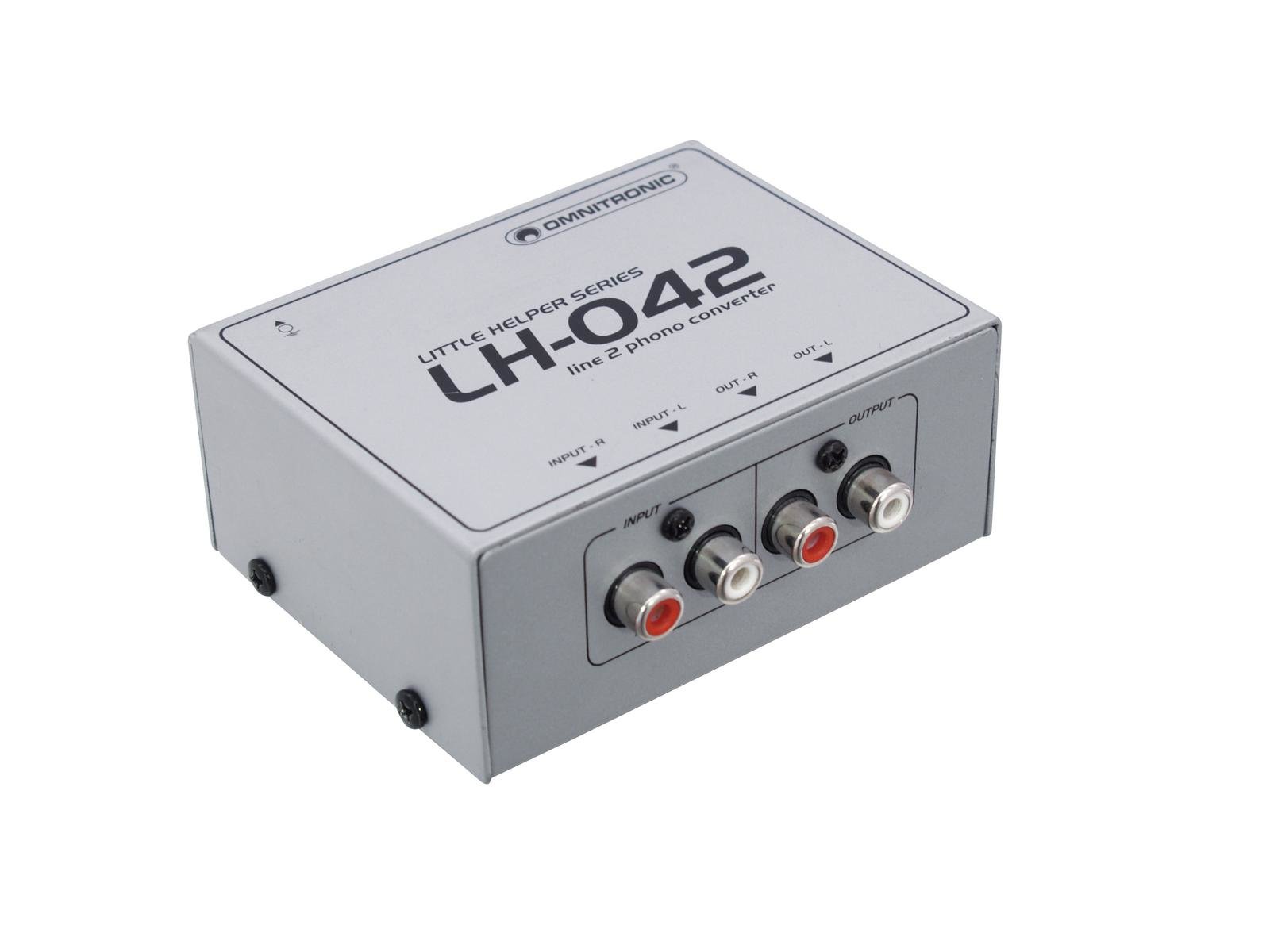

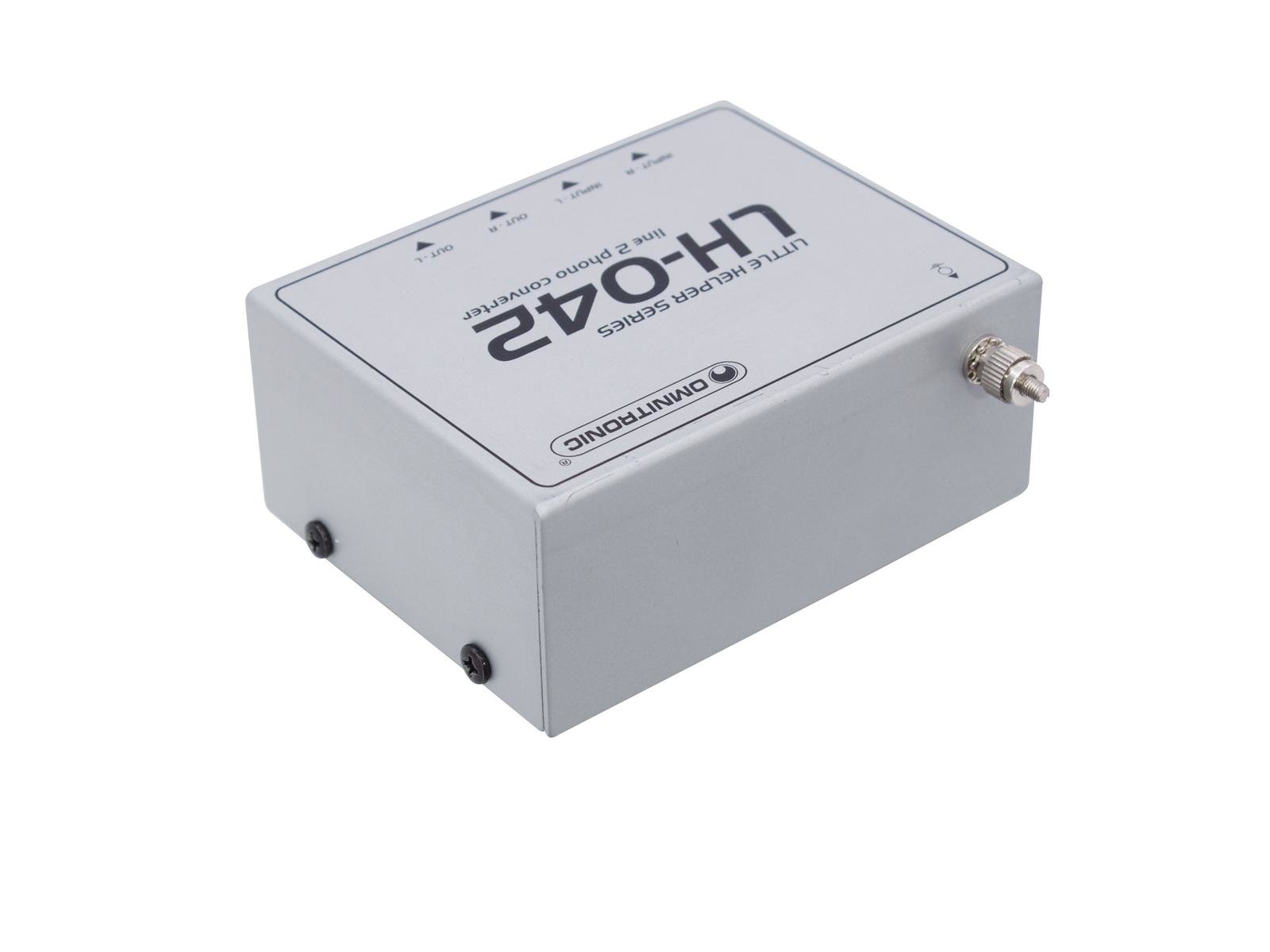

LH-042 converts a line signal into a phono signal. What is this good for? Just imagine the following situation. You are working as a DJ and have recently purchased a new line source (a CD player, MP3 player, or similar). Now you would like to connect it to the mixer, but the line inputs are already in use. What to do? At this moment, it's time for the LH-042. Just connect it to a phono input and connect the additional line source to the converter: you still have a line slot for the mixer.
Passive stereo line/phono converter
- Converts a line signal into a phono signal
- Connect line level sources such as CD, MP3, DVD, or PC to the magnetic phono input of a mixer, amplifier, or recording device
- Ground terminal to avoid humming
- No power supply or battery required
Package contents
- 1 x device, 4 x feet, 1 x user manual
| Frequency range: | 10 - 20000 Hz |
| S/N ratio: | >100 dB |
| Impedance: | Input: 10 kOhm
Output: 470 Ohm |
| Gain: | -46 dB |
| Frequency characteristic: | Passive inverse RIAA |
| Phono input compatibility: | Moving magnet (MM), moving coil (MC) |
| Connections: | Input: line via 1 x RCA stereo
Output: phono via 1 x RCA stereo |
| Material: | Metal |
| Colour: | Silver |
| Dimensions: | Width: 9.8 cm
Depth: 9.2 cm
Height: 4 cm |
| Weight: | 220 g |
