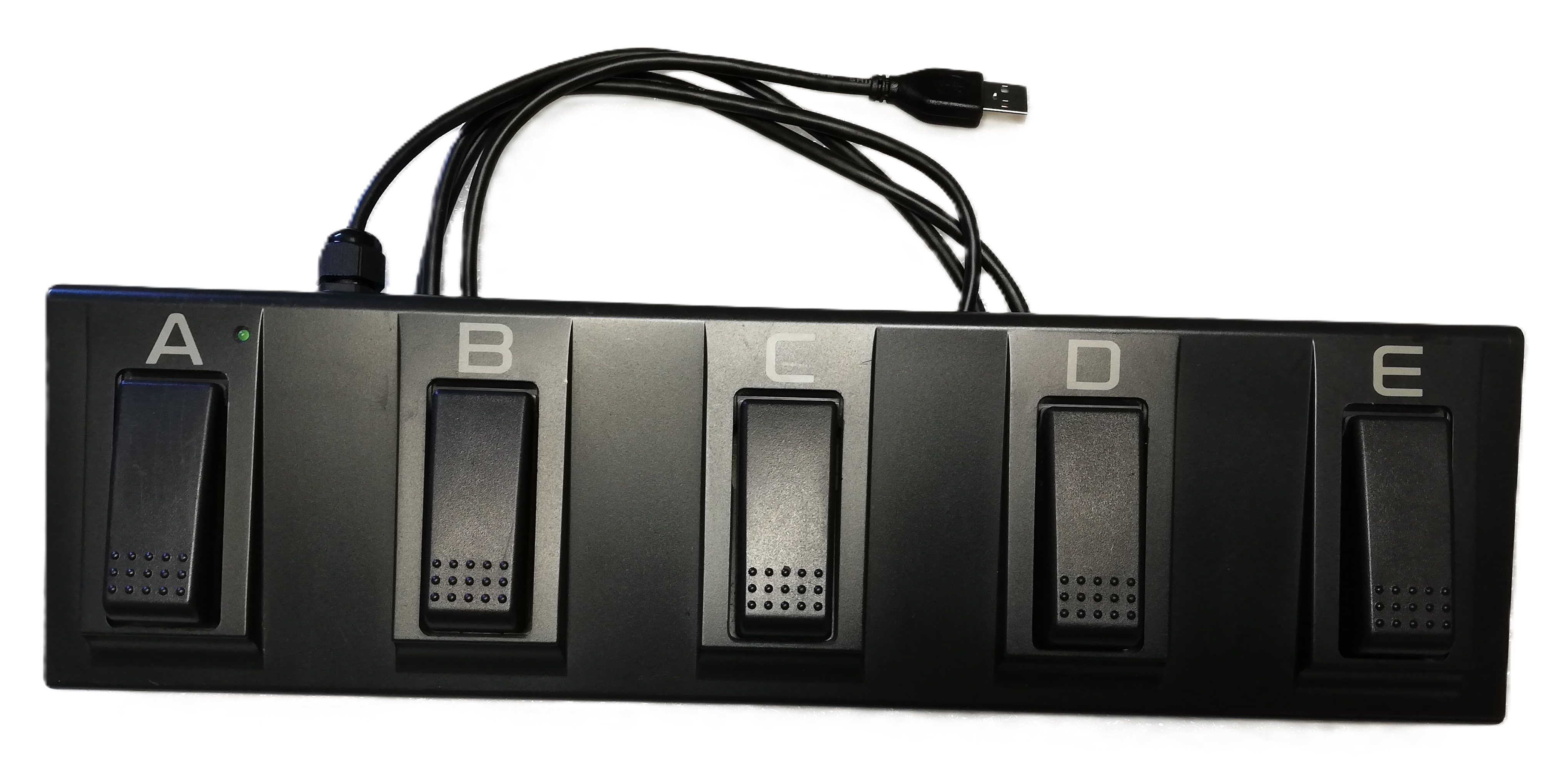

USBMIDI Korg EC5 for Korg PA700/PA1000/PA5X - Pedalboard for Korg keyboards, with integrated USB control interface for the Korg PA 700 / PA1000 / PA5X.
- 5 footswitches for multiple functions
- cable connection with 6-pin connector (included)
- Integrated control interface for Korg PA 700 / PA1000 / PA5X keyboards
- Assignment is done directly from the pedal
- Some MIDI settings must be performed on the keyboard
- Unfortunately, MIDI commands for other functions (e.g., Vocalist) were not stored in devices before Korg
- Each pedal can be assigned one of the following functions:
Functions:
- 0 No function (after reset for each button)
- 1 Intro 1
- 2 Intro 2
- 3 Intro 3/Count In
- 4 Variation 1
- 5 Variation 2
- 6 Variation 3
- 7 Variation 4
- 8 Fill 1
- 9 Fill 2
- 10 Fill 3
- 11 Fill 4
- 12 Break
- 13 Ending 1
- 14 Ending 2
- 15 Ending 3
- 16 Fade In/Out
- 17 Style to Kbd Set
- 18 Auto Fill
- 19 Memory
- 20 Bass Inversion
- 21 Manual Bass
- 22 Tempo Lock
- 23 Start/Stop Arr (1)
- 24 Play/Stop Player 1
- 25 Play/Stop Player 2
- 26 Kbd Set 1
- 27 Kbd Set 2
- 28 Kbd Set 3
- 29 Kbd Set 4
- 30 Leslie on/off
- 31 Synchro Start (2)
- 32 Synchro Stop (2)
- 33 – 45 Songbook entry no. 1 – 13
(1) This function is available only on Pa1000 and Pa4X!
(2) These functions are available only on Pa4X and Pa5X!
