OPEN BOXUSBMIDI Korg EC5 for Tyros/Genos1/Genos2

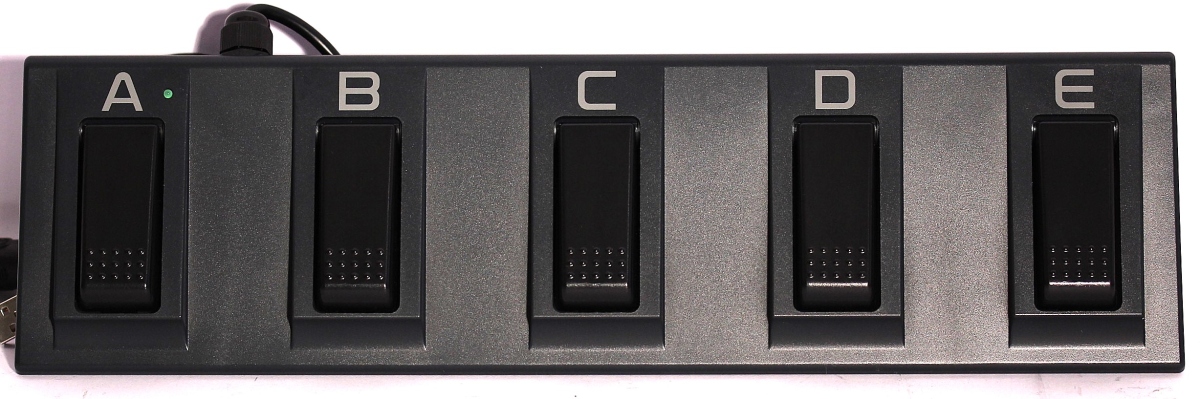

USBMIDI Korg EC5 for Tyros/Genos1/Genos2 - Pedalboard for Korg keyboards, with integrated USB control interface for Yamaha Tyros / Genos1 / Genos2 keyboards.

• 5 footswitches for multiple functions
• cable connection with 6-pin connector (included)
• Integrated control interface for Yamaha Tyros / Genos1 / Genos2 keyboards
• Assignment is done directly from the pedal
• Some MIDI settings must be performed on the keyboard
• Unfortunately, the devices did not store MIDI commands for other functions (e.g., Vocalist) before Korg
• Each pedal can be assigned one of the following functions:

Functions:

• 0 No function (after reset for each button)
• 1 Intro 1
• 2 Intro 2
• 3 Intro 3/Count In
• 4 Variation 1
• 5 Variation 2
• 6 Variation 3
• 7 Variation 4
• 8 Fill 1
• 9 Fill 2
• 10 Fill 3
• 11 Fill 4
• 12 Break
• 13 Ending 1
• 14 Ending 2
• 15 Ending 3
• 16 Fade In/Out
• 17 Style to Kbd Set
• 18 Auto Fill
• 19 Memory
• 20 Bass Inversion
• 21 Manual Bass
• 22 Tempo Lock
• 23 Start/Stop Arr (1)
• 24 Play/Stop Player 1
• 25 Play/Stop Player 2
• 26 Kbd Set 1
• 27 Kbd Set 2
• 28 Kbd Set 3
• 29 Kbd Set 4
• 30 Leslie on/off
• 31 Synchro Start (2)
• 32 Synchro Stop (2)
• 33 – 45 Songbook entry no. 1 – 13
