Yamaha CXS18 MK3

Passive subwoofer

18" passive subwoofer with band-pass design for low frequencies.
frequency response: 35 – 150 Hz (extended: 32 – 120 Hz).
power handling: 500 W RMS, 1000 W program, 2000 W peak.
connectors: 2x SpeakON NL4MP for input/output.
dimensions: 563 × 683 × 721 mm, weight: 49 kg.

1 293⁵² €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

6656 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

Yamaha CXS18 MK3 Add to cart: 1 293⁵² €

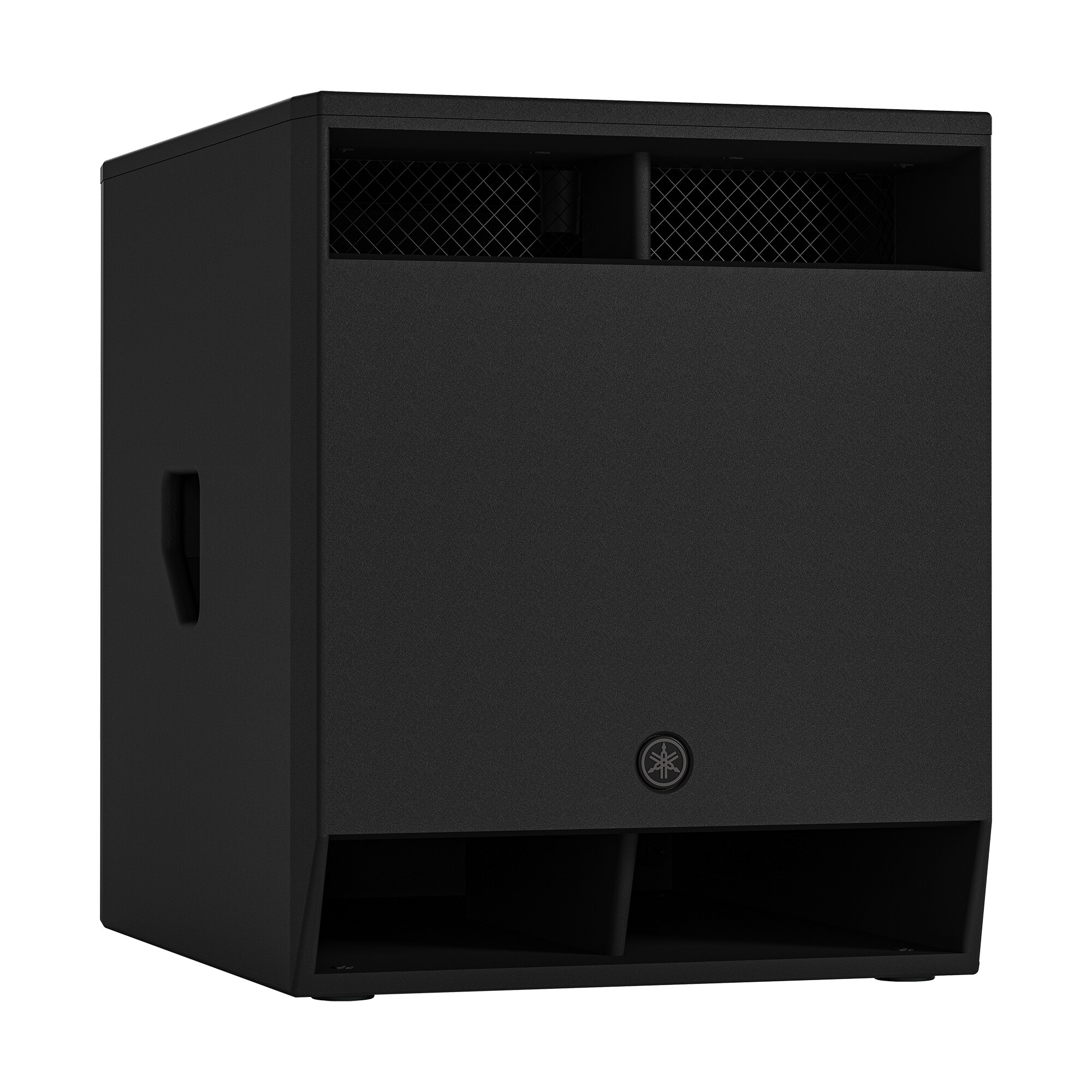

Yamaha CXS18 MK3 - 18" passive subwoofer designed for reproducing low frequencies in sound reinforcement applications. It uses a band-pass design to reduce unwanted noise from the enclosure and provide controlled bass. It is intended for use alongside compatible full-range speakers.

Passive subwoofer, band-pass
Driver: 18" woofer, 4" voice coil
Frequency response: 35 – 150 Hz (extended: 32 – 120 Hz)
Nominal impedance: 4 Ω
Sensitivity: 96 dB SPL (1W/1m)
Max SPL: 129 dB
Power: 500 W (RMS, noise) / 1000 W (program) / 2000 W (peak)
Connectors: 2x SpeakON NL4MP (input/output)
Enclosure: plywood, polyurethane finish
Handles: 2 side
Mounting: flange Ø35 mm + M20 thread
Dimensions: 563 × 683 × 721 mm
Weight: 49 kg
Colour: black
