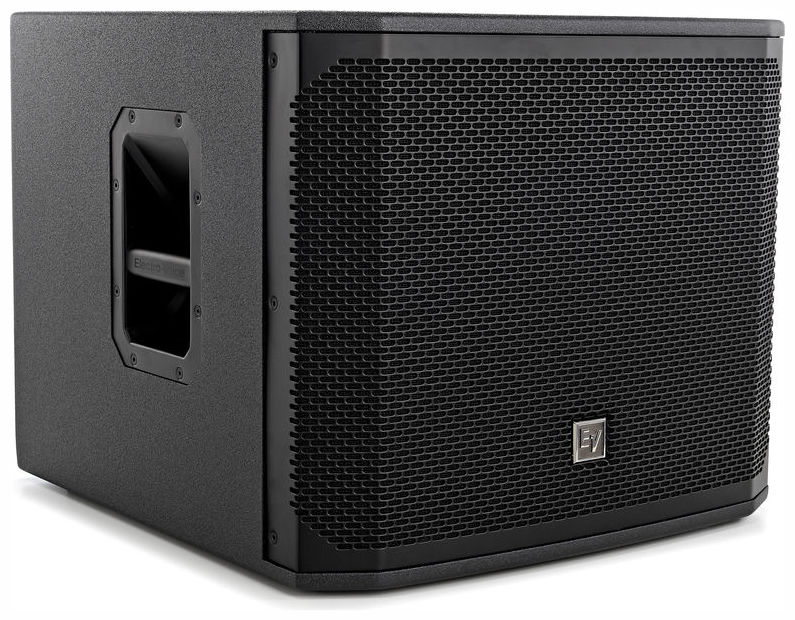

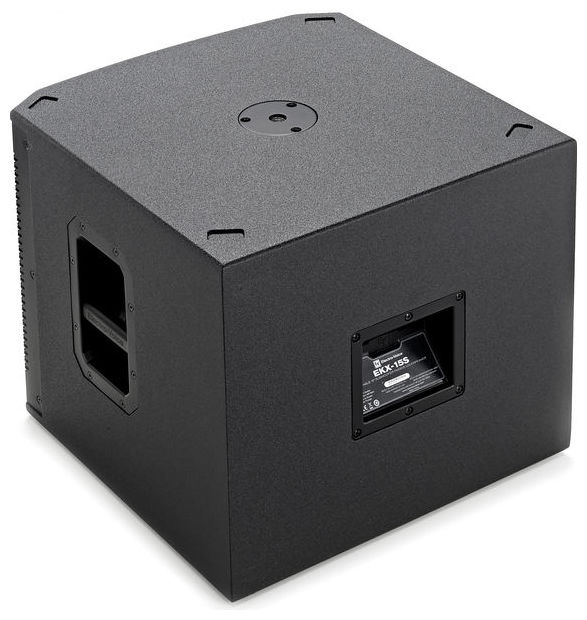

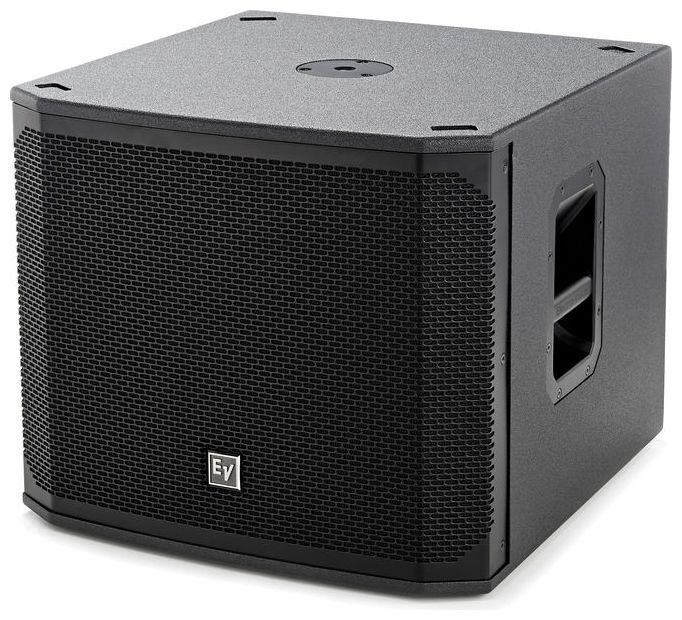

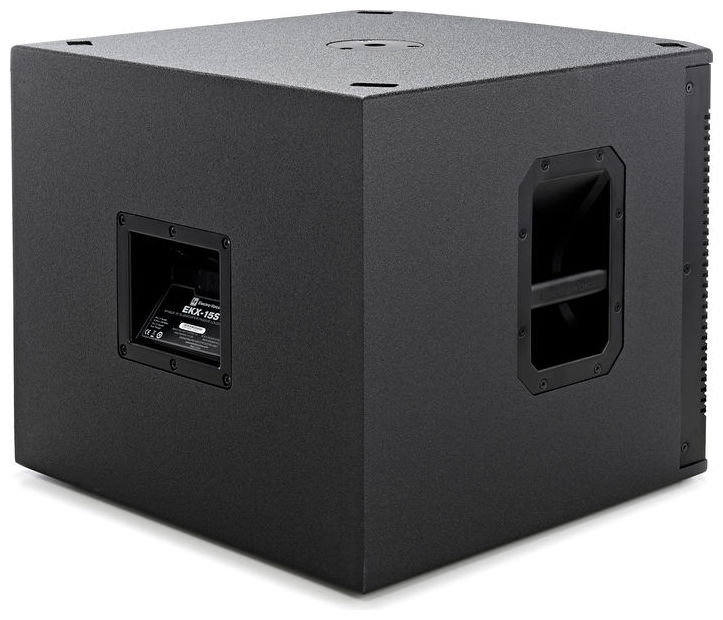

Electro-Voice EKX-15S - Passive subwoofer equipped with a 15" speaker. Power of 400 W/ 1600 W (peak), maximum SPL of 133 dB, frequency response 40 - 300 Hz. It features Speak-on type connectors and a pole mount with M20 thread. Dimensions 455 x 530 x 551 mm, weight 24.9 kg. The EKX series is the latest range of portable speakers from Electro-Voice, suitable for any type of application, including live music, mobile DJ, fixed installations in clubs and pubs. In terms of performance, the EKX series is positioned above the ZLX, ELX series and below the active ETX series.
Technical specifications:
Max SPL: 133 dB
Nominal impedance: 8 Ω
Power: 400 W/1600 W peak
Frequency response (-3 dB): 60 Hz - 100 Hz
Frequency response (-10 dB): 40 Hz - 300 Hz
Recommended high-pass filter frequency: 35 Hz
Low-frequency driver: EVS-15C (15 inch)
Crossover frequency: 1.6 kHz
Minimum impedance: 7.5 Ω

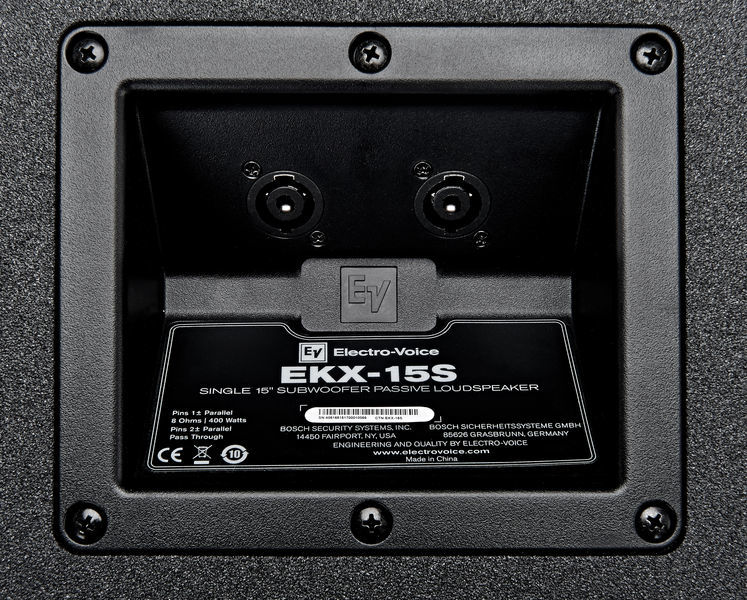

Connector type: Dual NL4
Cabinet material: 15 mm plywood with EVCoat finish
